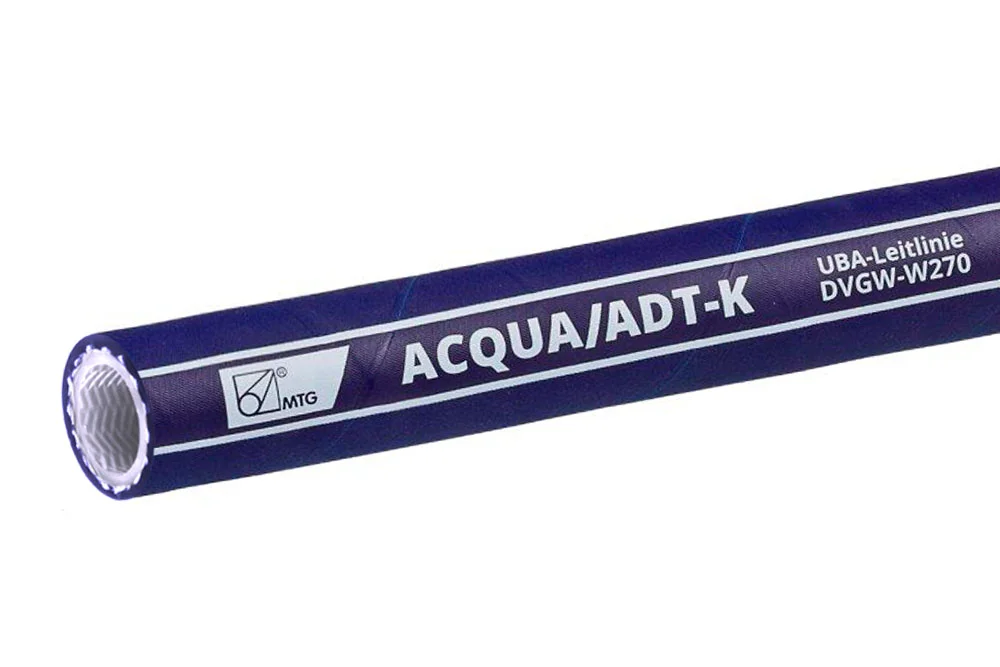

Hose for transfer of cold and hot potable water – ACQUA ADTK
Flexible pressure hose designed for the transmission of drinking water, cold (+23°C) and hot (+60°C). Its white, mirror-like inner surface prevents biofilm formation on the walls and is easy to maintain. It does not negatively affect health properties, is free from phthalates, ADI (animal-derived contaminants), and other hazardous substances subject to restrictions according to REACH. It does not cause changes in the organoleptic properties of water even at elevated temperatures. The outer layer is resistant to abrasion, ozone, and weather conditions. Cleaning: steam at +120°C for a maximum of 30 minutes (in an open system), other (CIP) in consultation with Tubes International. Standards and requirements: 1) General: EC 2002/95 (RoHS), EC 1907/2006 (REACH). 2) Approval for drinking water: PZH B.BK.60110.0823.2022 (valid until 10.08.2025), UBA guideline, KTW, DVGW W270, D.M.174. 3) Food industry, contact with food: EC 1935/2004, EC 2023/2006 (GMP); EC 10/2011 (inner layer). Inner layer: smooth with a mirror-like surface technopolymer. Reinforcement: synthetic braid. Outer layer: blue technopolymer. Working pressure: from 10 bar to 20 bar, depending on the hose diameter. Operating temperature: from -30°C to +90°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| MT-ACQUA-ADTK-013 | ACQUA ADT/K hose 13x20 mm | 12 | 20 | |
| MT-ACQUA-ADTK-016 | ACQUA ADT/K hose 16x23 mm | 16 | 16 | |
| MT-ACQUA-ADTK-019 | ACQUA hose ADT/K 19x27 mm | 20 | 16 | |
| MT-ACQUA-ADTK-025 | ACQUA ADT/K hose 25x34 mm | 25 | 14 | |
| MT-ACQUA-ADTK-032 | ACQUA ADT/K hose 32x44 mm | 32 | 12 | |
| MT-ACQUA-ADTK-038 | ACQUA ADT/K hose 38x51 mm | 38 | 10 | |
| MT-ACQUA-ADTK-045 | ACQUA hose ADT/K 45x59 mm | 45 | 10 | |
| MT-ACQUA-ADTK-050 | ACQUA hose ADT/K 50x64 mm | 50 | 10 | |
| MT-ACQUA-ADTK-065 | ACQUA hose ADT/K 65x81 mm | 65 | 10 |
Flexible pressure hose designed for the transmission of drinking water, cold (+23°C) and hot (+60°C). Its white, mirror-like inner surface prevents biofilm formation on the walls and is easy to maintain. It does not negatively affect health properties, is free from phthalates, ADI (animal-derived contaminants), and other hazardous substances subject to restrictions according to REACH. It does not cause changes in the organoleptic properties of water even at elevated temperatures. The outer layer is resistant to abrasion, ozone, and weather conditions. Cleaning: steam at +120°C for a maximum of 30 minutes (in an open system), other (CIP) in consultation with Tubes International. Standards and requirements: 1) General: EC 2002/95 (RoHS), EC 1907/2006 (REACH). 2) Approval for drinking water: PZH B.BK.60110.0823.2022 (valid until 10.08.2025), UBA guideline, KTW, DVGW W270, D.M.174. 3) Food industry, contact with food: EC 1935/2004, EC 2023/2006 (GMP); EC 10/2011 (inner layer). Inner layer: smooth with a mirror-like surface technopolymer. Reinforcement: synthetic braid. Outer layer: blue technopolymer. Working pressure: from 10 bar to 20 bar, depending on the hose diameter. Operating temperature: from -30°C to +90°C.
Additional information
| Material | plastomer |
|---|---|
| Maximum operating temperature [°C] | 90 |
| Minimum operating temperature [°C] | -30 |
| Vacuum resistance | no |
| Standard length [m] | 40 |
| Reinforcement | synthetic braid |
