Can AGN hydraulic end, type ZNZ110, carbon steel, zinc-nickel, be used with hoses requiring sealing on a 60Â° cone?

Yes - AGN hydraulic end, type ZNZ110, carbon steel, zinc-nickel, can be used with hoses requiring sealing on a 60Â° cone. The product description explicitly states "possible sealing on a 60Â° cone," and the part is designed for crimping with the appropriate sleeve for the hose type. Ensure you use the correct crimping sleeve and follow manufacturer crimp specifications to achieve a proper cone seal and reliable hose assembly.

Does AGN hydraulic end, type ZNZ110, carbon steel, zinc-nickel, require specific crimping pressures or dies for proper assembly?

Yes. The AGN hydraulic end, type ZNZ110, carbon steel, zinc-nickel requires proper crimping equipment and technique for reliable assembly. Key points: - Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. you must use a crimping die/profile and sleeve that match the specific hose and Z-type fitting geometry. - Although no specific numeric crimp pressure is given in the provided description, correct crimping pressure and die selection are essential to achieve a secure, leak-free joint and to avoid damage to the fitting or hose. Use the hose manufacturerâs recommended crimping pressures, die profiles and dimensions for the hose size being assembled with the ZNZ110 fitting. - If the assembly uses a 60Â° cone sealing variant, ensure the crimping process does not distort the sealing surfaces; proper die fit and controlled pressure are important to preserve the cone seal. - Material and coating (carbon steel with 6â10 Âµm zincânickel) do not change crimping fundamentals but handle fittings to avoid surface damage that could compromise corrosion protection. Recommendation: Follow the hose and crimping machine manufacturersâ documented die profiles, crimp dimensions and hydraulic crimping forces for the specific hose/fitting combination or consult the fitting/hose supplier for verified crimp parameters for AGN hydraulic end, type ZNZ110.

AGN hydraulic end, type ZNZ110, carbon steel, zinc-nickel

Q: Is AGN hydraulic end, type ZNZ110 (carbon steel, zinc-nickel) compatible with standard crimping sleeves for hydraulic and industrial hoses?

Yes. The AGN hydraulic end, type ZNZ110 (carbon steel, zincânickel) is compatible with standard crimping sleeves for hydraulic and industrial hoses. It is a Standard hydraulic end (type Z) featuring a regular hydraulic tail designed specifically for crimping, and the description explicitly states it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Ensure you select a crimping sleeve sized and specified for the hose construction and inner diameter used with this fitting, and verify crimping parameters (pressing depth, force, and tooling) recommended by the hose manufacturer to achieve a proper, leakâfree crimp.

All products, Fittings for high-pressure hoses/

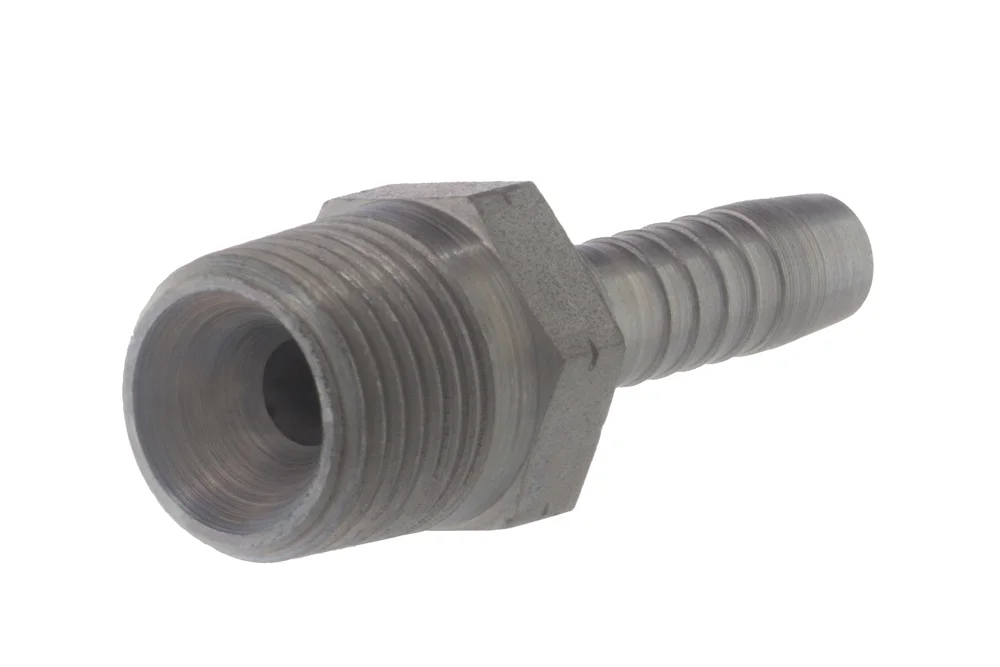

AGN hydraulic end, type ZNZ110, carbon steel, zinc-nickel

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with external tapered NPT thread, sealing on the thread (AGN), possible sealing on a 60° cone. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which is characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZNZ110-02-03-CN	End. GZ 1/8" NPT for 3/16" hose, Zn-Ni	5	-	In stock	Enquiry
TI-ZNZ110-02-04-CN	End. GZ 1/8" NPT for 1/4" hose, Zn-Ni	6	-	In stock	Enquiry
TI-ZNZ110-04-04-CN	End. GZ 1/4" NPT for 1/4" hose, Zn-Ni	6	-	In stock	Enquiry
TI-ZNZ110-04-06-CN	End. GZ 1/4" NPT for hose 3/8", Zn-Ni	10	-	In stock	Enquiry
TI-ZNZ110-06-04-CN	End. GZ 3/8" NPT for 1/4" hose, Zn-Ni	6	-	In stock	Enquiry
TI-ZNZ110-06-05-CN	End. GZ 3/8" NPT for hose 5/16", Zn-Ni	8	-	In stock	Enquiry
TI-ZNZ110-06-06-CN	End. GZ 3/8" NPT for 3/8" hose, Zn-Ni	10	-	In stock	Enquiry
TI-ZNZ110-06-08-CN	End. GZ 3/8" NPT for 1/2" hose, Zn-Ni	12	-	In stock	Enquiry
TI-ZNZ110-08-06-CN	End. GZ 1/2" NPT for hose 3/8", Zn-Ni	10	-	In stock	Enquiry
TI-ZNZ110-08-08-CN	End. GZ 1/2" NPT for 1/2" hose, Zn-Ni	12	-	In stock	Enquiry
TI-ZNZ110-08-10-CN	End. GZ 1/2" NPT for hose 5/8", Zn-Ni	16	-	In stock	Enquiry
TI-ZNZ110-12-08-CN	End. GZ 3/4" NPT for 1/2" hose, Zn-Ni	12	-	In stock	Enquiry
TI-ZNZ110-12-12-CN	End. GZ 3/4" NPT for 3/4" hose, Zn-Ni	20	-	In stock	Enquiry
TI-ZNZ110-16-12-CN	End. GZ 1" NPT for 3/4" hose, Zn-Ni	20	-	In stock	Enquiry
TI-ZNZ110-16-16-CN	End. GZ 1" NPT for 1" hose, Zn-Ni	25	-	In stock	Enquiry
TI-ZNZ110-20-16-CN	End. GZ 1.1/4" NPT for 1" hose, Zn-Ni	25	-	In stock	Enquiry
TI-ZNZ110-20-20-CN	End. GZ 1.1/4" NPT for hose 1.1/4", Zn-Ni	32	-	In stock	Enquiry
TI-ZNZ110-24-24-CN	End. GZ 1.1/2" NPT for hose 1.1/2", Zn-Ni	38	-	In stock	Enquiry
TI-ZNZ110-32-32-CN	End. GZ 2" NPT for hose 2", Zn-Ni	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for hose), with external tapered NPT thread, sealing on the thread (AGN), possible sealing on a 60° cone. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, which is characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
