Is the DKJ 90Â° hydraulic end, type ZJW210, carbon steel, zinc-nickel compatible with standard UNF-threaded hydraulic hoses and crimping sleeves?

Yes . the DKJ 90Â° hydraulic end, type ZJW210, carbon steel, zinc-nickel is compatible with standard UNF-threaded hydraulic hoses and crimping sleeves, with the following specifics: - Thread and sealing: It has an internal UNF thread and nut and seals on a 74Â° cone (DKJ), so it mates with hoses/fittings designed for UNF nut and 74Â° cone sealing faces. Ensure the mating hose end uses the same 74Â° cone standard. - Crimping: It is designed for crimping into hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Use the correct sleeve profile and crimping specifications recommended by the hose manufacturer and crimping machine for the hose size. - Materials and coating: Carbon steel body with a zinc-nickel coating (6â10 Âµm) offers high corrosion resistance; this does not affect mechanical compatibility but is beneficial for durability. Recommendation: Verify hose assembly specifications (UNF size, cone angle, sleeve type, and crimp dimensions) match ZJW210 dimensions and the hose manufacturer's crimp chart before assembly.

Does the DKJ 90Â° hydraulic end, type ZJW210, carbon steel, zinc-nickel require specific crimping sleeve dimensions or standards?

No special proprietary crimping sleeve dimensions or non-standard rules are specified for the DKJ 90Â° hydraulic end, type ZJW210, carbon steel, zinc-nickel. It is designed for crimping into hydraulic and industrial hoses using a crimping sleeve suitable for the hose type-so you must use the sleeve dimensions and standard (manufacturer- or hose-approved) specification that match the hoseâs inner diameter, reinforcement type and nominal size. Ensure the crimping machine and die set are rated for the hose assembly and follow the hose and sleeve makerâs crimping parameters (crimp diameter, length, and pressure). Also verify compatibility with the DKJ 74Â° cone sealing face and the internal UNF thread during assembly.

Can DKJ 90Â° hydraulic end, type ZJW210, carbon steel, zinc-nickel withstand high-pressure hydraulic fluid and temperature variations?

Yes. the DKJ 90Â° hydraulic end, type ZJW210, carbon steel, zinc-nickel can withstand high-pressure hydraulic fluid and typical temperature variations encountered in hydraulic systems, with some caveats. Why it performs well: - Design: Internal UNF thread with nut and 74Â° cone (DKJ) sealing is a common, proven sealing geometry for high-pressure hydraulic fittings, providing reliable metal-to-metal sealing when assembled correctly. - Construction: Carbon steel body offers high mechanical strength required for high-pressure service. - Crimping: Intended for crimping with a proper sleeve matched to the hose type ensures secure hose retention and pressure containment when crimped per manufacturer specs. - Corrosion resistance: Zinc-nickel coating (6â10 Âµm) gives excellent corrosion protection (tested up to ~720 hours in salt spray), beneficial for longevity in aggressive environments. Limitations and considerations: - Pressure rating: The description lacks a specific maximum working pressure or temperature range. Actual pressure capability depends on the exact size, hose type, crimp sleeve, and crimping parameters. Always use the manufacturerâs declared working pressure for the assembled hose assembly. - Temperature: Carbon steel with zinc-nickel plating tolerates typical hydraulic temperature ranges, but extreme temperatures (very high or very low) can affect seal materials (hoses, O-rings) and the coating performance. Verify compatibility of the hose and sealing elements with the intended fluid temperature. - Fluid compatibility: Zinc-nickel coating and carbon steel are generally compatible with common hydraulic fluids, but verify chemical compatibility for specialty fluids. - Assembly quality: Proper crimping, correct sleeve, and correct tightening of the UNF nut are essential for safe high-pressure operation. Conclusion: DKJ 90Â° hydraulic end, type ZJW210, carbon steel, zinc-nickel is suitable for high-pressure hydraulic applications and normal temperature variations when used with the correct hose, sleeve, and assembly procedures and within the manufacturerâs specified pressure and temperature limits. Always confirm the exact working pressure, temperature range, and fluid compatibility from manufacturer data before use.

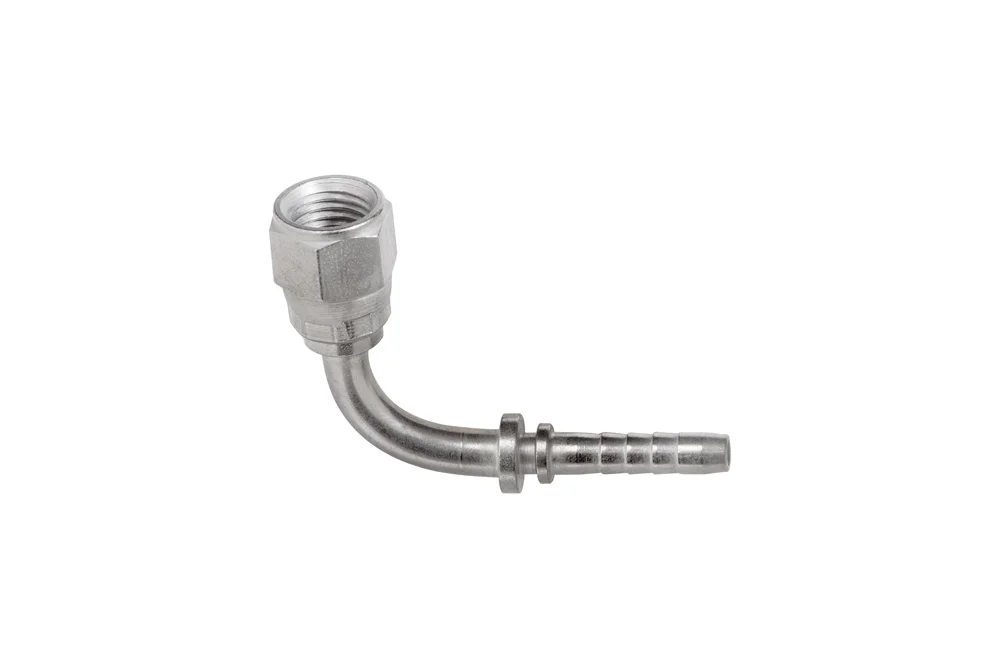

DKJ 90° hydraulic end, type ZJW210, carbon steel, zinc-nickel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10, 100, 2

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with internal UNF thread and nut, sealing on a 74° cone (DKJ), angled 90°. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZJW210-07-03-CN	End. JIC 90° G 7/16", hose 3/16", cone 74°, Zn-Ni	5	-	In stock	Enquiry
TI-ZJW210-07-04-CN	End. JIC 90° G 7/16", hose 1/4", cone 74°, Zn-Ni	6	-	In stock	Enquiry
TI-ZJW210-08-04-CN	End. JIC 90° G 1/2", hose 1/4", cone 74°, Zn-Ni	6	-	In stock	Enquiry
TI-ZJW210-09-04-CN	End. JIC 90° G 9/16", hose 1/4", cone 74°, Zn-Ni	6	-	In stock	Enquiry
TI-ZJW210-09-05-CN	End. JIC 90° G 9/16", hose 5/16", cone 74°, Zn-Ni	8	-	In stock	Enquiry
TI-ZJW210-09-06-CN	End. JIC 90° G 9/16", hose 3/8", cone 74°, Zn-Ni	10	-	In stock	Enquiry
TI-ZJW210-12-06-CN	End. JIC 90° G 3/4", hose 3/8", cone 74°, Zn-Ni	10	-	In stock	Enquiry
TI-ZJW210-12-08-CN	End. JIC 90° G 3/4", hose 1/2", cone 74°, Zn-Ni	12	-	In stock	Enquiry
TI-ZJW210-14-06-CN	End. JIC 90° G 7/8", hose 3/8", cone 74°, Zn-Ni	10	-	In stock	Enquiry
TI-ZJW210-14-08-CN	End. JIC 90° G 7/8", hose 1/2", cone 74°, Zn-Ni	12	-	In stock	Enquiry
TI-ZJW210-14-10-CN	End. JIC 90° G 7/8", hose 5/8", cone 74°, Zn-Ni	16	-	In stock	Enquiry
TI-ZJW210-17-08-CN	End. JIC 90° G1/16", hose 1/2", cone 74°, Zn-Ni	12	-	In stock	Enquiry
TI-ZJW210-17-10-CN	End. JIC 90° G1/16", hose 5/8", cone 74°, Zn-Ni	16	-	In stock	Enquiry
TI-ZJW210-17-12-CN	End. JIC 90° G1/16", hose 3/4", cone 74°, Zn-Ni	20	-	In stock	Enquiry
TI-ZJW210-19-12-CN	End. JIC 90° G1/2", hose 3/4", cone 74°, Zn-Ni	20	-	In stock	Enquiry
TI-ZJW210-21-12-CN	End. JIC 90° G1.5/16", hose 3/4", cone 74°, Zn-Ni	20	-	In stock	Enquiry
TI-ZJW210-21-16-CN	End. JIC 90° G1.5/16", hose 1", cone 74°, Zn-Ni	25	-	In stock	Enquiry
TI-ZJW210-26-16-CN	End. JIC 90° G1.5/8", hose 1", cone 74°, Zn-Ni	25	-	In stock	Enquiry
TI-ZJW210-26-20-CN	End. JIC 90° G1.5/8", hose 1.1/4", cone 74°, Zn-Ni	32	-	In stock	Enquiry
TI-ZJW210-30-20-CN	End. JIC 90° G1.7/8", hose 1.1/4", cone 74°, Zn-Ni	32	-	In stock	Enquiry
TI-ZJW210-30-24-CN	End. JIC 90° G1.7/8", hose 1.1/2", cone 74°, Zn-Ni	38	-	In stock	Enquiry
TI-ZJW210-40-32-CN	End. JIC 90° G 2.1/2", hose 2", cone 74°, Zn-Ni	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end (type Z – with a regular hydraulic “tail” for the hose), with internal UNF thread and nut, sealing on a 74° cone (DKJ), angled 90°. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Surface coated with zinc-nickel with a layer thickness of 6-10 µm, characterized by very high corrosion resistance (up to 720 hours without corrosion in a salt spray chamber). Material: carbon steel, zinc-nickel.
