Is the DKL 45Â° hydraulic end, type ZMW311, light series (carbon steel) compatible with standard crimping sleeves for industrial hydraulic hoses?

Yes. The DKL 45Â° hydraulic end, type ZMW311, light series, carbon steel is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Its features.regular hydraulic âtailâ for hose (type Z), universal cone 24Â°/60Â° (DKL), internal metric thread and nut, metal-to-metal sealing, angled 45Â°.and the specification explicitly state it is intended for crimping with an appropriate sleeve. Ensure you use a crimping sleeve matched to the hose construction, size and pressure rating, and follow manufacturer crimping specifications and tooling settings to achieve a proper, leak-free assembly.

Can the DKL 45Â° hydraulic end, type ZMW311, light series, carbon steel be used with hoses requiring a 24Â°/60Â° metal-to-metal cone seal?

Yes. The DKL 45Â° hydraulic end, type ZMW311, light series, carbon steel is specified as a universal cone 24Â°/60Â° (DKL) with metal-to-metal sealing and is designed for crimping onto hydraulic and industrial hoses using a proper crimping sleeve. Therefore it is compatible with hoses that require a 24Â°/60Â° metal-to-metal cone seal, provided the hose, sleeve and crimping procedure match the fittingâs dimensions and manufacturerâs assembly recommendations.

Does the DKL 45Â° hydraulic end, type ZMW311, light series, carbon steel require a specific crimping diameter or sleeve profile?

DKL 45Â° hydraulic end, type ZMW311, light series, carbon steel does not specify a single universal crimping diameter or sleeve profile in the provided description. It is described as a standard hydraulic end fitting designed for crimping into hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Therefore the required crimping diameter/profile depends on the hose construction and the matching crimp sleeve recommended for that hose (inner diameter, reinforcement type, and hose series). Use the crimp sleeve and die set specified by the hose manufacturer for the hose bore and the light-series ZMW311 fitting; follow the hose makerâs crimp dimensions and the crimper manufacturerâs settings to ensure correct assembly and leak-free metal-to-metal sealing.

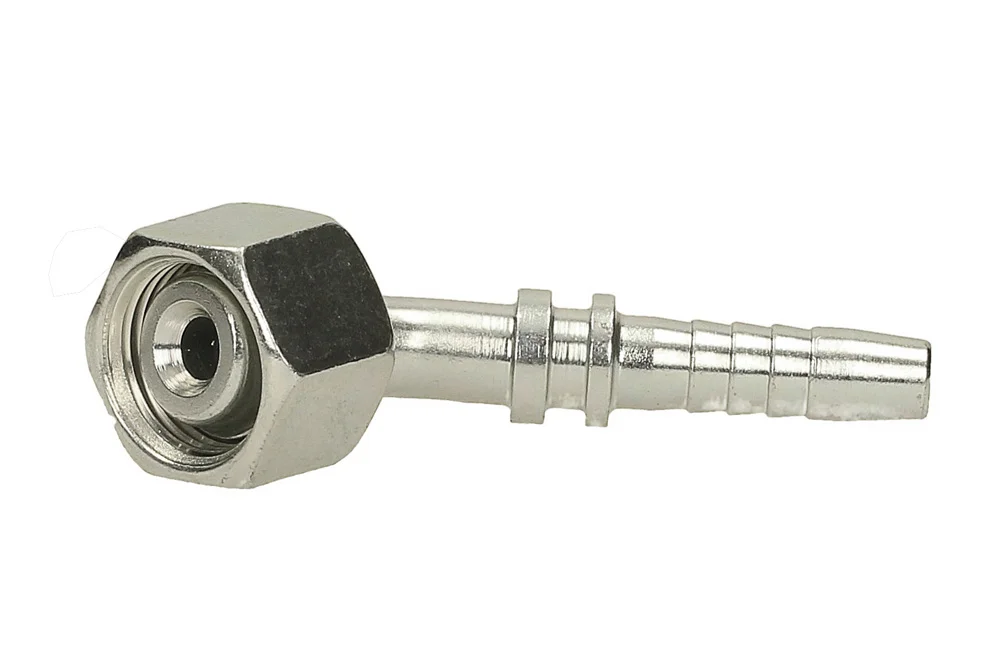

DKL 45° hydraulic end, type ZMW311, light series, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, metal-metal sealing, universal cone 24°/60° (DKL), angled 45°, lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW311-12-04	End. 45° G1/2 M12x1.5, hose 1/4", 24/60°, light	6	-	In stock	Enquiry
TI-ZMW311-14-04	End. 45° G thread M14x1.5, hose 1/4", 24/60°, lightweight	6	-	In stock	Enquiry
TI-ZMW311-16-05	End. 45° G-thread M16x1.5, hose 5/16", 24/60°, light	8	-	In stock	Enquiry
TI-ZMW311-16-06	End. 45° G1/2 M16x1.5, hose 3/8", 24/60°, lightweight	10	-	In stock	Enquiry
TI-ZMW311-18-05	End fitting 45° G1/2 M18x1.5, hose 5/16", 24/60°, lightweight	8	-	In stock	Enquiry
TI-ZMW311-18-06	End. 45° female thread M18x1.5, hose 3/8", 24/60°, lightweight	10	-	In stock	Enquiry
TI-ZMW311-22-06	End. 45° G1/2 M22x1.5, hose 3/8", 24/60°, light	10	-	In stock	Enquiry
TI-ZMW311-22-08	End. 45° G1/2" M22x1.5, hose 1/2", 24/60°, light	12	-	In stock	Enquiry
TI-ZMW311-26-10	End. 45° G thread M26x1.5, hose 5/8", 24/60°, light	16	-	In stock	Enquiry
TI-ZMW311-27-10	End. 45° G-thread M27x2, hose 5/8", 24/60°, lightweight	16	-	In stock	Enquiry
TI-ZMW311-30-12	End. 45° G thread M30x2, hose 3/4", 24/60°, light	20	-	In stock	Enquiry
TI-ZMW311-36-16	End. 45° GW M36x2, hose 1", 24/60°, light	25	-	In stock	Enquiry
TI-ZMW311-45-20	End fitting 45° G1/2 M45x2, hose 1.1/4", 24/60°, lightweight	32	-	In stock	Enquiry
TI-ZMW311-52-24	End fitting 45° G1/2" M52x2, hose 1.1/2", 24/60°, lightweight	38	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic end fitting (type Z – with a regular hydraulic “tail” for hose), with internal metric thread and nut, metal-metal sealing, universal cone 24°/60° (DKL), angled 45°, lightweight series. Designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the hose type. Material: carbon steel, galvanized.
