Is the DKOR 45Â° hydraulic end, type ZBW320, carbon steel compatible with standard crimping sleeves for industrial hydraulic hoses?

Yes. The DKOR 45Â° hydraulic end, type ZBW320, carbon steel is compatible with standard crimping sleeves intended for industrial hydraulic hoses. The product description explicitly states it is "designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose." Key compatibility points: - Crimp method: Intended for crimping (not reusable swivel or screw-on types). - Sleeve selection: Use a crimping sleeve matched to the specific hose type (inner diameter, reinforcement, and manufacturer recommendations). - Seal and thread: It has an internal BSP thread with a nut and seals with an O-ring on a 60Â° cone (DKOR), so the hose assembly must allow proper positioning of the fitting and sleeve to ensure the O-ring and cone seal correctly. - Material: Carbon steel, galvanized.compatible with standard crimp sleeves used for steel fittings, but confirm corrosion/environmental requirements and electrochemical compatibility with the hose and sleeve materials. Recommendation: Verify the hose manufacturerâs crimp specifications and choose the matching sleeve profile and crimping dimensions for type Z fittings (ZBW320) to ensure a secure, leak-free assembly.

Can DKOR 45Â° hydraulic end, type ZBW320, carbon steel be used with hoses requiring BSP internal-thread fittings?

Yes. DKOR 45Â° hydraulic end, type ZBW320, carbon steel can be used with hoses that require BSP internal-thread fittings with nut and O-ring sealing on a 60Â° cone, because the ZBW320 is described as having an internal BSP thread with nut and DKOR (60Â° cone) O-ring sealing. It is designed for crimping onto hydraulic and industrial hoses using an appropriate crimping sleeve for the hose type. Ensure the hose and sleeve are compatible with the ZBW320 dimensions and crimp specifications, and verify material/pressure ratings match your application.

Does DKOR 45Â° hydraulic end, type ZBW320, carbon steel require a specific crimping sleeve profile?

No, DKOR 45Â° hydraulic end, type ZBW320, carbon steel does not require a unique proprietary crimping sleeve profile. According to the description, it is designed for crimping in hydraulic and industrial hoses using a crimping sleeve suitable for the type of hose. That means you must choose a sleeve whose internal diameter, length and bead/profile match the specific hose construction and nominal size (e.g., single-wire, spiral, textile reinforcement) rather than a special sleeve made just for the ZBW320 fitting. Ensure the selected sleeve is approved by the hose manufacturer for the hose series and size, and that crimp dimensions and tooling (crimping force, die profile) follow the hose makerâs and fitting supplierâs specifications. Also verify that the sleeve material and plating are compatible with the carbon steel, galvanized fitting and that crimp integrity and sealing (O-ring on 60Â° cone) are achieved per recommended assembly procedures.

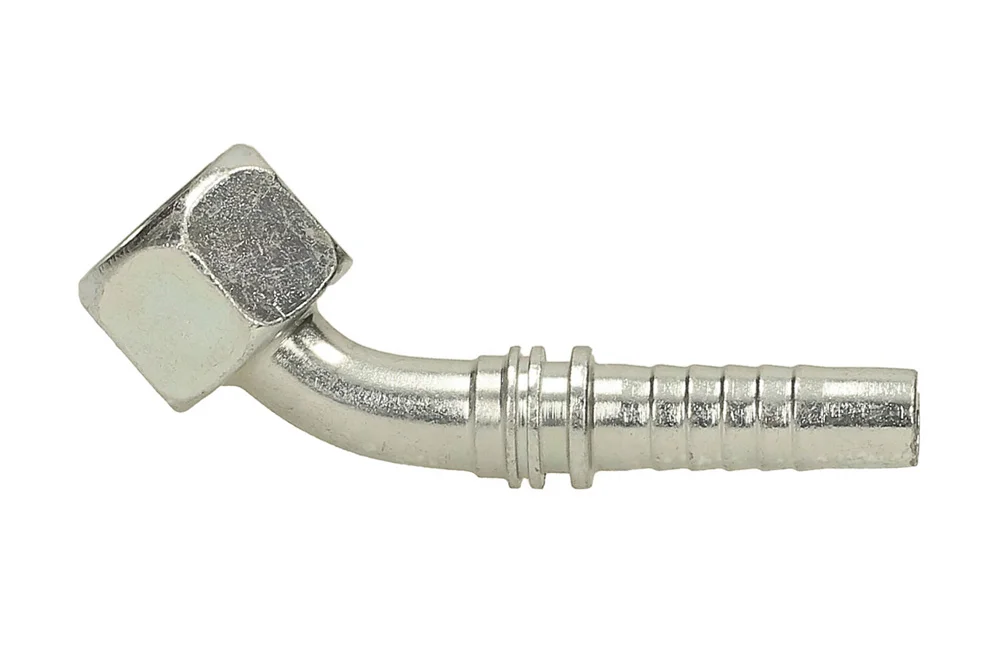

Fitting hydraulic DKOR 45°, type ZBW320, carbon steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with BSP female thread with a nut, sealing an O-ring on a 60° cone (DKOR), angled 45°. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW320-04-04	Fitting 45° 1/4" BSP female, hose 1/4", 60° cone, O-ring	6	-	In stock	Enquiry
TI-ZBW320-06-04	Fitting 45° 3/8" BSP female, hose 1/4", 60° cone, O-ring	6	-	In stock	Enquiry
TI-ZBW320-06-06	Fitting 45° 3/8" BSP female, hose 3/8", 60° cone, O-ring	10	-	In stock	Enquiry
TI-ZBW320-08-08	Fitting 45° 1/2" BSP female, hose 1/2", 60° cone, O-ring	12	-	In stock	Enquiry
TI-ZBW320-12-12	Fitting 45° 3/4" BSP female, hose 3/4", 60° cone, O-ring	20	-	In stock	Enquiry
TI-ZBW320-16-16	Fitting 45° 1" BSP female, hose 1", 60° cone, O-ring	25	-	In stock	Enquiry
TI-ZBW320-20-16	Fitting 45° 1.1/4" BSP female, hose 1", 60° cone, O-ring	25	-	In stock	Enquiry
TI-ZBW320-20-20	Fitting 45° 1.1/4" BSP female, hose 1.1/4", 60° cone, O-ring	32	-	In stock	Enquiry
TI-ZBW320-24-24	Fitting 45° 1.1/2" BSP female, hose 1.1/2", 60° cone, O-ring	38	-	In stock	Enquiry
TI-ZBW320-32-32	Fitting 45° 2" BSP female, hose 2", 60° cone, O-ring	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Standard hydraulic fitting (type Z – with an ordinary hydraulic “tail” for the hose), with BSP female thread with a nut, sealing an O-ring on a 60° cone (DKOR), angled 45°. Intended for crimping onto hydraulic and industrial hoses using a ferrule suitable for the hose type. Material: carbon steel, galvanized.
