EN 853 1SN/HT ULTIMATE high temperature hydraulic hose

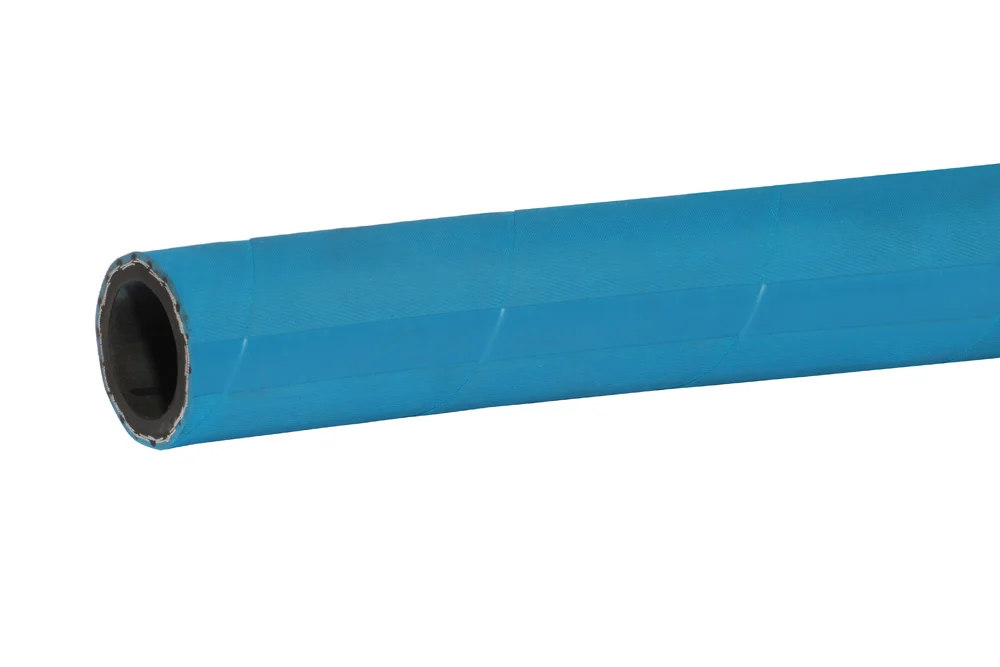

Hydraulic hose with an extended temperature working range compared to standard hoses. Standards: exceeds EN 853 1SN, ISO 1436-1SN, SAE 100R1-AT. Inner layer: black, oil-resistant synthetic rubber. Reinforcement: single steel braid. Outer layer: blue, oil-resistant synthetic rubber resistant to ozone and aging. Working pressure: from 40 bar to 225 bar depending on hose diameter. Operating temperature: from -50°C to +135°C (temporarily +150°C). For water and air, maximum operating temperature +70°C. For air above 17 bar, micro-perforation of the outer layer is required.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| HW-1SN-HT-06S | ULTIMATE 1SN/HT 1/4" hydraulic hose | 6 | 225 | |
| HW-1SN-HT-08S | ULTIMATE 1SN/HT 5/16" hydraulic hose | 8 | 215 | |
| HW-1SN-HT-10S | ULTIMATE 1SN/HT 3/8" hydraulic hose | 10 | 180 | |
| HW-1SN-HT-13S | ULTIMATE 1SN/HT 1/2" hydraulic hose | 12 | 160 | |
| HW-1SN-HT-16S | ULTIMATE 1SN/HT 5/8" hydraulic hose | 16 | 130 | |
| HW-1SN-HT-19S | ULTIMATE 1SN/HT 3/4" hydraulic hose | 20 | 105 | |
| HW-1SN-HT-25S | ULTIMATE 1SN/HT 1" hydraulic hose | 25 | 88 | |
| HW-1SN-HT-32S | ULTIMATE hydraulic hose 1SN/HT 1.1/4" | 32 | 63 | |
| HW-1SN-HT-38S | ULTIMATE hydraulic hose 1SN/HT 1.1/2" | 38 | 50 | |
| HW-1SN-HT-51S | ULTIMATE 1SN/HT 2" hydraulic hose | 50 | 40 |
Hydraulic hose with an extended temperature working range compared to standard hoses. Standards: exceeds EN 853 1SN, ISO 1436-1SN, SAE 100R1-AT. Inner layer: black, oil-resistant synthetic rubber. Reinforcement: single steel braid. Outer layer: blue, oil-resistant synthetic rubber resistant to ozone and aging. Working pressure: from 40 bar to 225 bar depending on hose diameter. Operating temperature: from -50°C to +135°C (temporarily +150°C). For water and air, maximum operating temperature +70°C. For air above 17 bar, micro-perforation of the outer layer is required.
Additional information
| Material | synthetic rubber |
|---|---|
| Maximum operating temperature [°C] | 135 |
| Minimum operating temperature [°C] | -50 |
