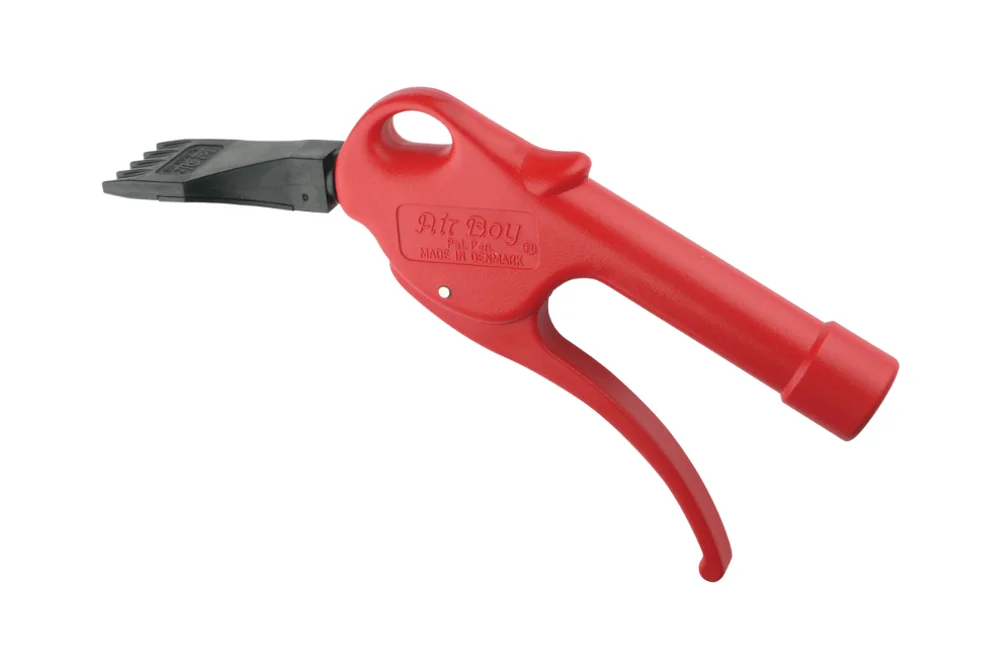

JET AIR BOY® air gun, flat 8 jet nozzle
Flat nozzle gun (comb) designed for removing all contaminants from larger surfaces: liquids, fine chips, shavings, etc. Also suitable for drying surfaces. Lightweight construction and ergonomic shape ensure easy and comfortable use. The gun is equipped with an 8-stream flat nozzle that guarantees high blowing force at low noise levels. The lever mechanism allows for precise dosing of the flowing medium. Available model with flow regulation. Compliant with OSHA standard 1910.95 (b), STD 1-13.1, and directive 2003/10/EC. Body material: acetal. Nozzle material: POM. Sealing: NBR. Working pressure: up to 8 bar. Operating temperature: from -10°C to +80°C. Flow rate: 580 l/min (at 8 bar pressure). Noise level: 81.5 dB (at 8 bar pressure). Blowing force: 5.05 N.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| JW-140026-134 | JET AIR BOY air gun, flat nozzle 8-stream, 1/4" BSP thread | - | 8 | |
| JW-140027-134 | JET AIR BOY air gun, flat nozzle 8-stream, flow regulation, 1/4" BSP thread. | - | 8 |
Flat nozzle gun (comb) designed for removing all contaminants from larger surfaces: liquids, fine chips, shavings, etc. Also suitable for drying surfaces. Lightweight construction and ergonomic shape ensure easy and comfortable use. The gun is equipped with an 8-stream flat nozzle that guarantees high blowing force at low noise levels. The lever mechanism allows for precise dosing of the flowing medium. Available model with flow regulation. Compliant with OSHA standard 1910.95 (b), STD 1-13.1, and directive 2003/10/EC. Body material: acetal. Nozzle material: POM. Sealing: NBR. Working pressure: up to 8 bar. Operating temperature: from -10°C to +80°C. Flow rate: 580 l/min (at 8 bar pressure). Noise level: 81.5 dB (at 8 bar pressure). Blowing force: 5.05 N.
