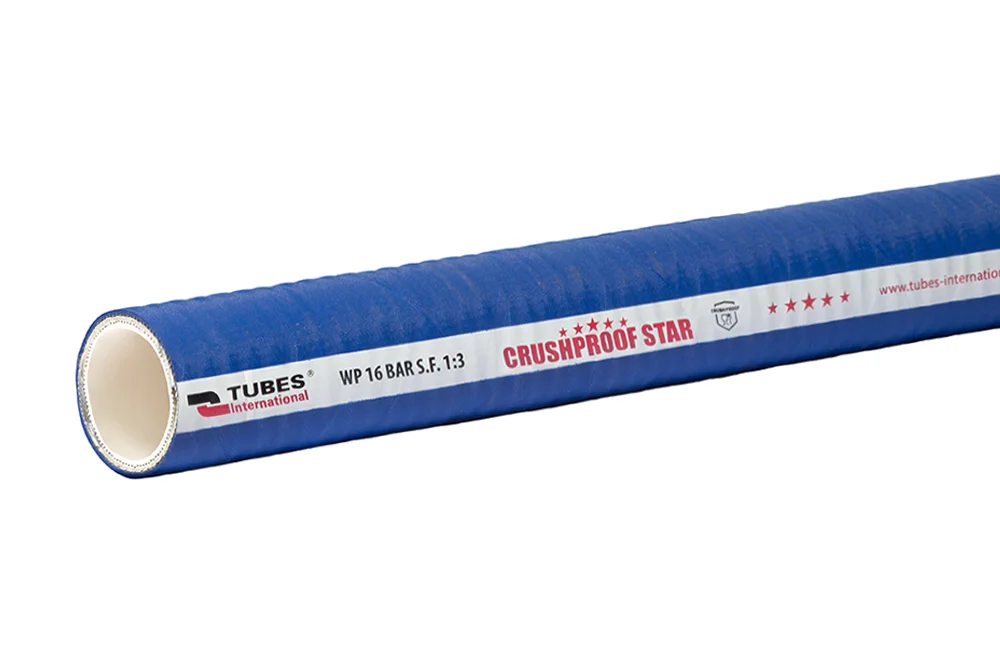

CRUSHPROOF STAR milk and similar products handling hose
Light suction and discharge hose designed for the transfer of milk and food substances, requiring the use of odorless and tasteless rubber. It contains no plasticizers, phthalates, or animal-derived substances. The special “CRUSH PROOF” hose construction with a plastic spiral allows the hose to return under pressure to its original shape after being accidentally run over, for example, by a forklift. The hose is lightweight and easy to handle. It is primarily designed for unloading milk from tankers. Not recommended for heavy-duty working conditions in process applications. Norms and requirements: 1) General: EC 2002/95 (RoHS), EC 1907/2006 (REACH). 2) Food industry, food contact: EC 1935/2004, EC 2023/2006 (GMP). Inner layer compliant with D.M. 21/03/73, FDA 21 CFR 177.2600, BfR, RAL (German Institute for Quality Assurance and Certification). Inner layer: white NR/NBR blend. Reinforcement: synthetic braid, PET spiral. Outer layer: blue synthetic rubber. Working pressure: 16 bar. Vacuum: 0.7 bar. Operating temperature: from -30°C to +85°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| SO-CPSTAR-051 | CRUSHPROOF hose STAR 51x64 mm | 50 | 16 | |
| SO-CPSTAR-063 | CRUSHPROOF STAR hose 63.5x79 mm | 65 | 16 | |
| SO-CPSTAR-076 | CRUSHPROOF STAR hose 76x92 mm | 75 | 16 |
Light suction and discharge hose designed for the transfer of milk and food substances, requiring the use of odorless and tasteless rubber. It contains no plasticizers, phthalates, or animal-derived substances. The special “CRUSH PROOF” hose construction with a plastic spiral allows the hose to return under pressure to its original shape after being accidentally run over, for example, by a forklift. The hose is lightweight and easy to handle. It is primarily designed for unloading milk from tankers. Not recommended for heavy-duty working conditions in process applications. Norms and requirements: 1) General: EC 2002/95 (RoHS), EC 1907/2006 (REACH). 2) Food industry, food contact: EC 1935/2004, EC 2023/2006 (GMP). Inner layer compliant with D.M. 21/03/73, FDA 21 CFR 177.2600, BfR, RAL (German Institute for Quality Assurance and Certification). Inner layer: white NR/NBR blend. Reinforcement: synthetic braid, PET spiral. Outer layer: blue synthetic rubber. Working pressure: 16 bar. Vacuum: 0.7 bar. Operating temperature: from -30°C to +85°C.
Additional information
| Material | NR – natural rubber |
|---|---|
| Maximum operating temperature [°C] | 85 |
| Minimum operating temperature [°C] | -30 |
| Vacuum resistance | yes |
| Standard length [m] | 10 |
| Reinforcement | PET spiral, synthetic cover |
Additional information
| Material | NR – natural rubber |
|---|---|
| Maximum operating temperature [°C] | 85 |
| Minimum operating temperature [°C] | -30 |
| Vacuum resistance | yes |
| Standard length [m] | 10 |
| Reinforcement | PET spiral, synthetic cover |
