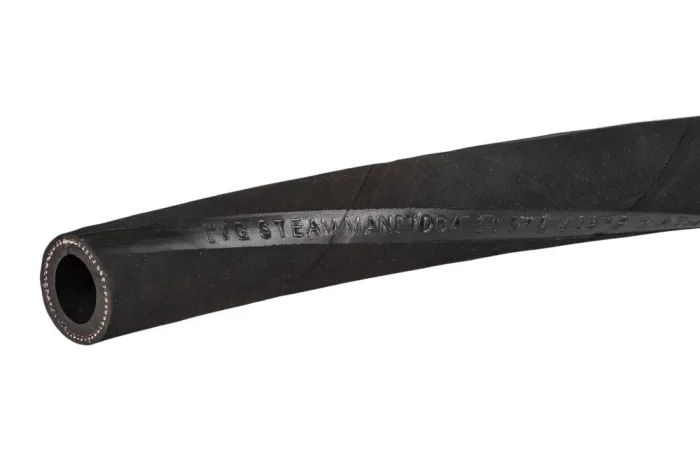

MANITOBA® saturated steam delivery hose
Hose designed for conveying saturated steam, with good resistance to high temperature, abrasion, and ozone. Available on request, hose according to standard EN ISO 6134:2005 type 1 class A. Standard length: 60 m (or 120 m – contact Tubes International). Inner layer: black EPDM rubber. Reinforcement: synthetic cord. Outer layer: black EPDM rubber. Working pressure: 6 bar. Operating temperature: from -40°C to +165°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| IV-MANITOBA-008X18 | MANITOBA hose 8x18 mm | 8 | 6 | |
| IV-MANITOBA-010X20 | MANITOBA hose 10x20 mm | 10 | 6 | |
| IV-MANITOBA-013X21,5 | Hose MANITOBA 13x21.5 mm | 12 | 6 | |
| IV-MANITOBA-013X23 | MANITOBA hose 13x23 mm | 12 | 6 | |
| IV-MANITOBA-016X25 | MANITOBA hose 16x25 mm | 16 | 6 | |
| IV-MANITOBA-019X29 | Hose MANITOBA 19x29 mm | 20 | 6 | |
| IV-MANITOBA-019X32 | Hose MANITOBA 19x32 mm | 20 | 6 | |
| IV-MANITOBA-025X35 | MANITOBA hose 25x35 mm | 25 | 6 | |
| IV-MANITOBA-025X38 | MANITOBA hose 25x38 mm | 25 | 6 | |
| IV-MANITOBA-032X44 | Hose MANITOBA 32x44 mm | 32 | 6 | |
| IV-MANITOBA-032X46,5 | Hose MANITOBA 32x46.5 mm | 32 | 6 | |
| IV-MANITOBA-035X50,5 | Hose MANITOBA 35x50.5 mm | 35 | 6 | |
| IV-MANITOBA-038X50 | MANITOBA hose 38x50 mm | 38 | 6 | |
| IV-MANITOBA-038X54 | Hose MANITOBA 38x54 mm | 38 | 6 | |
| IV-MANITOBA-040X56 | Hose MANITOBA 40x56 mm | 40 | 6 | |
| IV-MANITOBA-045X62 | MANITOBA hose 45x62 mm | 45 | 6 | |
| IV-MANITOBA-051X67 | Hose MANITOBA 51x67 mm | 50 | 6 | |
| IV-MANITOBA-055X73,5 | Hose MANITOBA 55x73.5 mm | 55 | 6 | |
| IV-MANITOBA-063X80,5 | Hose MANITOBA 63.5x80.5 mm | 65 | 6 | |
| IV-MANITOBA-065X85 | MANITOBA hose 65x85 mm | 65 | 6 | |
| IV-MANITOBA-076X94 | Hose MANITOBA 76x94 mm | 75 | 6 | |
| IV-MANITOBA-076X96,5 | Hose MANITOBA 76x96.5 mm | 75 | 6 | |
| IV-MANITOBA-102X122 | Hose MANITOBA 102x122 mm | 100 | 6 |
Hose designed for conveying saturated steam, with good resistance to high temperature, abrasion, and ozone. Available on request, hose according to standard EN ISO 6134:2005 type 1 class A. Standard length: 60 m (or 120 m – contact Tubes International). Inner layer: black EPDM rubber. Reinforcement: synthetic cord. Outer layer: black EPDM rubber. Working pressure: 6 bar. Operating temperature: from -40°C to +165°C.
Additional information
| Material | EPDM – ethylene-propylene-diene rubber |
|---|---|
| Maximum operating temperature [°C] | 165 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | no |
| Standard length [m] | 25, 30, 60, 60 / 120 |
| Reinforcement | synthetic braid |
Additional information
| Material | EPDM – ethylene-propylene-diene rubber |
|---|---|
| Maximum operating temperature [°C] | 165 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | no |
| Standard length [m] | 25, 30, 60, 60 / 120 |
| Reinforcement | synthetic braid |
