Shell clamp for installation of steam ends, SSC

All products, Steam hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	152.4, 40, 50, 50/ 100

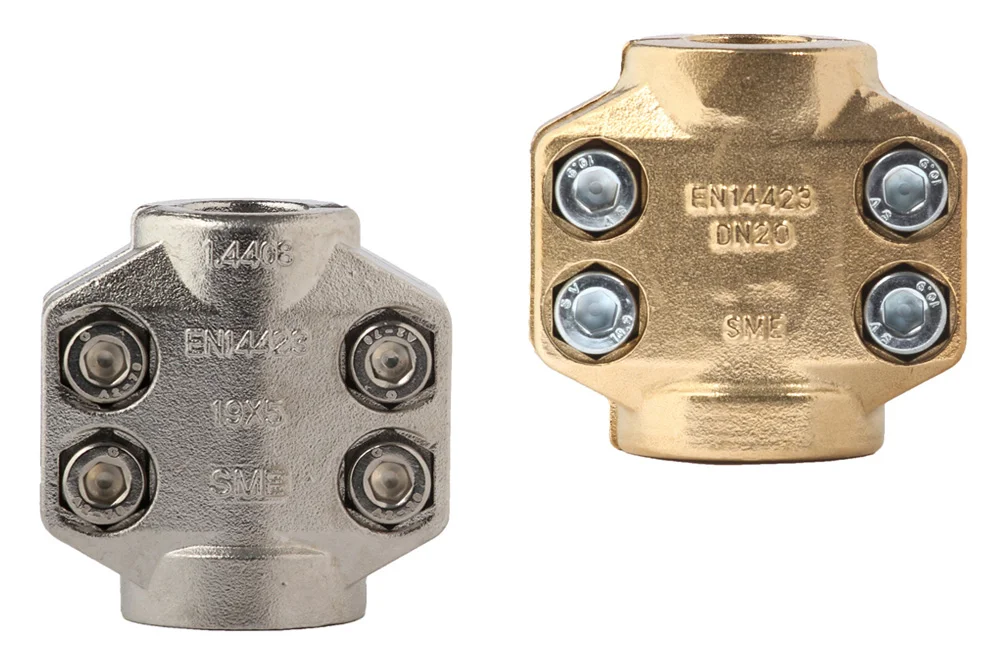

Heavy Duty shell clamps in an economical version are primarily intended for rubber hoses for steam, for mounting SSF type steam fittings. Manufactured according to EN 14423 (DIN 2826). Screws and nuts made of galvanized steel (for brass clamps), made of stainless steel (for stainless steel clamps). The clamp must be selected according to the inner diameter of the hose and the wall thickness of the hose according to the nominal size of the clamp, so that the outer diameter of the mounted hose fits within the specified range for the clamp. Preliminary tightening of the clamp requires the use of long auxiliary screws. Material: AISI 316 steel, brass. Operating temperature: up to +230°C. Working pressure: 18 bar (+210°C) – saturated steam, other applications: selection in contact with TUBES INTERNATIONAL®.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-SSC-013-040-SS	Shell clamp for SSC pair 13x4 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-013-050-SS	Shell clamp for pair SSC 13x5 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-013-060-MS	Shell clamp for pair SSC 13x6 mm, Ms	-	-	In stock	Enquiry
TI-SSC-013-060-SS	Shell clamp for pair SSC 13x6 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-016-050-SS	Shell clamp for pair SSC 16x5 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-019-050-SS	Shell clamp for pair SSC 19x5 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-019-060-SS	Shell clamp for pair SSC 19x6 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-019-070-MS	Shell clamp for pair SSC 19x7 mm, Ms	-	-	In stock	Enquiry
TI-SSC-019-070-SS	Shell clamp for pair SSC 19x7 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-025-050-SS	Shell clamp for pair SSC 25x5 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-025-060-SS	Shell clamp for pair SSC 25x6 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-025-075-MS	Shell clamp for pair SSC 25x7.5 mm, Ms	-	-	In stock	Enquiry
TI-SSC-025-075-SS	Shell clamp for pair SSC 25x7.5 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-032-060-SS	Shell clamp for pair SSC 32x6 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-032-080-MS	Shell clamp for pair SSC 32x8 mm, Ms	-	-	In stock	Enquiry
TI-SSC-032-080-SS	Shell clamp for pair SSC 32x8 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-038-065-SS	Shell clamp for pair SSC 38x6.5 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-038-080-MS	Shell clamp for pair SSC 38x8 mm, Ms	-	-	In stock	Enquiry
TI-SSC-038-080-SS	Shell clamp for pair SSC 38x8 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-050-080-SS	Shell clamp for pair SSC 50x8 mm, AISI 316	-	-	In stock	Enquiry
TI-SSC-050-090-MS	Shell clamp for pair SSC 50x9 mm, Ms	-	-	In stock	Enquiry
TI-SSC-050-090-SS	Shell clamp for pair SSC 50x9 mm, AISI 316	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Heavy Duty shell clamps in an economical version are primarily intended for rubber hoses for steam, for mounting SSF type steam fittings. Manufactured according to EN 14423 (DIN 2826). Screws and nuts made of galvanized steel (for brass clamps), made of stainless steel (for stainless steel clamps). The clamp must be selected according to the inner diameter of the hose and the wall thickness of the hose according to the nominal size of the clamp, so that the outer diameter of the mounted hose fits within the specified range for the clamp. Preliminary tightening of the clamp requires the use of long auxiliary screws. Material: AISI 316 steel, brass. Operating temperature: up to +230°C. Working pressure: 18 bar (+210°C) – saturated steam, other applications: selection in contact with TUBES INTERNATIONAL®.
