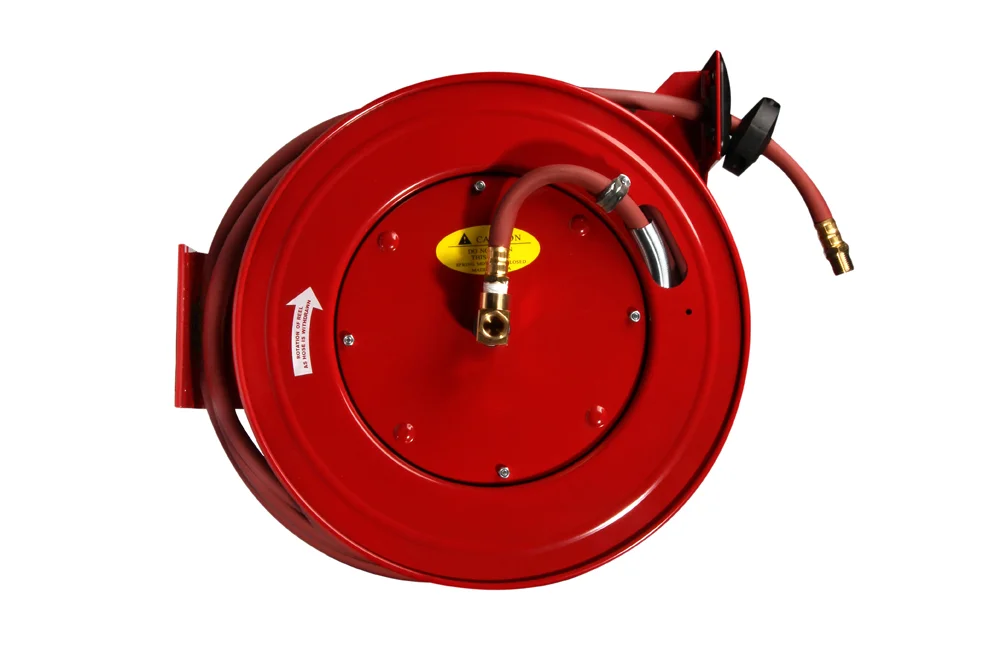

REELCRAFT OLP-70 series hose reel winder, carbon steel
Universal drum for water and air, complete with a PVC hose, designed for wall mounting. The guiding arm has five mounting positions, allowing the drum to be installed in any convenient position. A robust swivel connection, serving as the flow path for the medium, and the fittings and sleeves are made of brass. The retractable spring is specially matched to the hose length, with rounded edges, which increases the lifespan of the mechanism. Used in automotive workshops, repair shops, gas stations, gardens, paint shops, etc. Material: powder-coated carbon steel. Operating temperature: up to +65°C.
List of product variants
Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
---|---|---|---|---|
RC-LC650-OLP-70 | LC650 OLP-70 drum with 3/8" hose / 15 m, 21 bar | - | 21 | |
RC-LC670-OLP-70 | LC670 drum OLP-70 with 3/8" hose / 21 m, 21 bar | - | 21 | |
RC-LC850-OLP-70 | LC850 drum OLP-70 with hose 1/2" / 15 m, 21 bar | - | 21 | |
RC-LC870-OLP-70 | LC870 OLP-70 drum with 1/2" hose / 21 m, 21 bar | - | 21 |
Universal drum for water and air, complete with a PVC hose, designed for wall mounting. The guiding arm has five mounting positions, allowing the drum to be installed in any convenient position. A robust swivel connection, serving as the flow path for the medium, and the fittings and sleeves are made of brass. The retractable spring is specially matched to the hose length, with rounded edges, which increases the lifespan of the mechanism. Used in automotive workshops, repair shops, gas stations, gardens, paint shops, etc. Material: powder-coated carbon steel. Operating temperature: up to +65°C.
Additional information
Material | CS – steel (cast iron) |
---|---|
Maximum operating temperature [°C] | 65 |
Additional information
Material | CS – steel (cast iron) |
---|---|
Maximum operating temperature [°C] | 65 |
