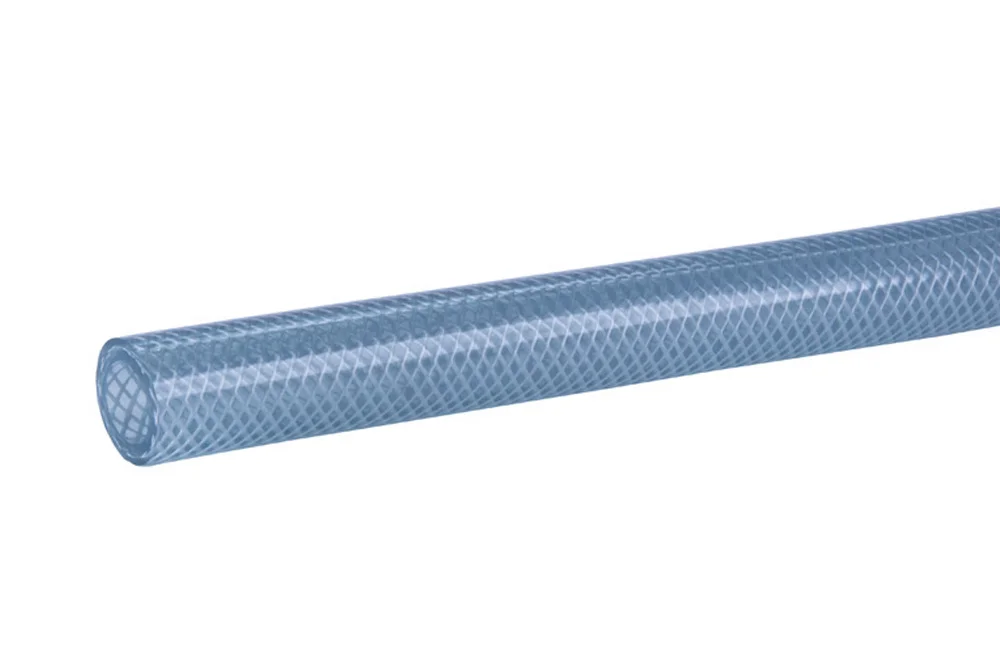

Braid-reinforced PVC hose for food substances TRICOCLAIR® AL
Lightweight, very flexible pressure hose designed for the transfer of water, juices, beverages, and other food products at temperatures up to +40°C. The absence of phthalates in the hose material makes it suitable for the transfer of milk and its derivatives, as well as alcohols with concentrations up to 50% and temperatures up to +40°C. Not recommended for oils and fatty food substances. Also widely used in industry and laboratories for compressed air, gases, and light chemicals. The reinforcement with a spiral braid ensures high pressure resistance and low deformation of the hose under pressure, even with pressure pulsations (within the working pressure range). Standards and requirements: Food industry, food contact: compliant with European regulations 1935/2004/EC and 10/2011/EU (simulant fluids A, B, C, and D1), 2023/2006/EC (GMP). Hose material: transparent PVC. Reinforcement: polyester braid. Working pressure: from 9 bar to 27 bar, depending on the hose diameter. Operating temperature: from -15°C to +60°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| TR-TRICOCLAIR-04 | TRICOCLAIR hose AL 4x8 mm | 4 | 27 | |
| TR-TRICOCLAIR-06 | TRICOCLAIR hose AL 6x12 mm | 6 | 22 | |
| TR-TRICOCLAIR-07 | TRICOCLAIR hose AL 7x13 mm | 6 | 21 | |
| TR-TRICOCLAIR-08 | TRICOCLAIR hose AL 8x14 mm | 8 | 20 | |
| TR-TRICOCLAIR-09 | TRICOCLAIR hose AL 9x15 mm | 8 | 20 | |
| TR-TRICOCLAIR-10 | TRICOCLAIR hose AL 10x16 mm | 10 | 20 | |
| TR-TRICOCLAIR-12 | TRICOCLAIR hose AL 12x19 mm | 12 | 20 | |
| TR-TRICOCLAIR-13 | TRICOCLAIR hose AL 13x20 mm | 12 | 20 | |
| TR-TRICOCLAIR-15 | TRICOCLAIR hose AL 15x23 mm | 16 | 20 | |
| TR-TRICOCLAIR-19 | TRICOCLAIR hose AL 19x27 mm | 20 | 20 | |
| TR-TRICOCLAIR-20 | TRICOCLAIR hose AL 20x28 mm | 20 | 20 | |
| TR-TRICOCLAIR-25 | TRICOCLAIR hose AL 25x34 mm | 25 | 16 | |
| TR-TRICOCLAIR-30 | TRICOCLAIR hose AL 30x41 mm | 30 | 13 | |
| TR-TRICOCLAIR-32 | TRICOCLAIR hose AL 32x42 mm | 32 | 12 | |
| TR-TRICOCLAIR-38 | TRICOCLAIR hose AL 38x48 mm | 38 | 12 | |
| TR-TRICOCLAIR-40 | TRICOCLAIR hose AL 40x52 mm | 40 | 10 | |
| TR-TRICOCLAIR-50 | TRICOCLAIR hose AL 50x64 mm | 50 | 9 |
Lightweight, very flexible pressure hose designed for the transfer of water, juices, beverages, and other food products at temperatures up to +40°C. The absence of phthalates in the hose material makes it suitable for the transfer of milk and its derivatives, as well as alcohols with concentrations up to 50% and temperatures up to +40°C. Not recommended for oils and fatty food substances. Also widely used in industry and laboratories for compressed air, gases, and light chemicals. The reinforcement with a spiral braid ensures high pressure resistance and low deformation of the hose under pressure, even with pressure pulsations (within the working pressure range). Standards and requirements: Food industry, food contact: compliant with European regulations 1935/2004/EC and 10/2011/EU (simulant fluids A, B, C, and D1), 2023/2006/EC (GMP). Hose material: transparent PVC. Reinforcement: polyester braid. Working pressure: from 9 bar to 27 bar, depending on the hose diameter. Operating temperature: from -15°C to +60°C.
Additional information
| Material | PVC – polyvinyl chloride |
|---|---|
| Maximum operating temperature [°C] | 60 |
| Minimum operating temperature [°C] | -15 |
| Vacuum resistance | no |
| Standard length [m] | 25, 40 |
| Reinforcement | polyester braid |
