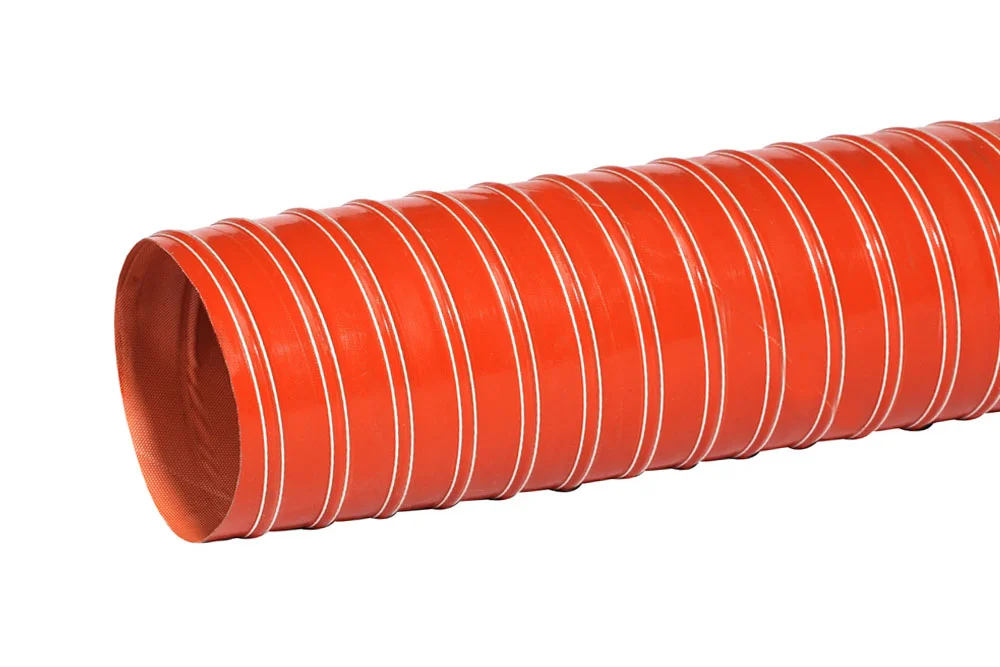

Extraction hose for vapors, high temperature gases SILICONE 2

Lightweight, very flexible and elastic hose designed for the extraction of hot vapors, smoke, gases, blowing, and the discharge of cooling air. Reinforced version of the SILICONE 1 hose, featuring two layers of fabric coated with silicone and a steel spiral placed between the layers. Chemically resistant, UV resistant, and aging resistant. Used, among others, for gas extraction in the metallurgical industry, foundries, glass and ceramic industries, for hot air in industrial dryers, in printing houses and paper mills, in vehicles and engines for cooling air, incinerators, as well as for the extraction of exhaust gases and welding fumes. Smooth inside (when straightened), with a very small bending radius allowing easy installation in tight spaces of equipment and vehicles. Not recommended for continuous dynamic bending. Installation with clamps. Other diameters and lengths, soft ends of sections, etc., available on special order. Hose material: two layers of glass fabric coated with red silicone. Reinforcement: steel wire spiral, double external fiberglass cord. Operating temperature: from -70°C to +250°C (temporarily up to +300°C).

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]Enquiry
TS-SILICONE2-013SILICONE Hose 2 13 mm122.6
TS-SILICONE2-016SILICONE Hose 2 16 mm162.6
TS-SILICONE2-018SILICONE Hose 2 18 mm182.5
TS-SILICONE2-019SILICONE Hose 2 19 mm202.5
TS-SILICONE2-022SILICONE Hose 2 22 mm222.5
TS-SILICONE2-025SILICONE Hose 2 25 mm252.5
TS-SILICONE2-030SILICONE Hose 2 30 mm302.5
TS-SILICONE2-032SILICONE Hose 2 32 mm322.5
TS-SILICONE2-034SILICONE Hose 2 34 mm352.5
TS-SILICONE2-035SILICONE Hose 2 35 mm352.4
TS-SILICONE2-036SILICONE Hose 2 36 mm352.4
TS-SILICONE2-038SILICONE Hose 2 38 mm382.4
TS-SILICONE2-039SILICONE Hose 2 39 mm382.4
TS-SILICONE2-041SILICONE Hose 2 41 mm402.4
TS-SILICONE2-044SILICONE Hose 2 44 mm452.4
TS-SILICONE2-051SILICONE Hose 2 51 mm502.4
TS-SILICONE2-055SILICONE Hose 2 55 mm552.3
TS-SILICONE2-057SILICONE Hose 2 57 mm552.3
TS-SILICONE2-060SILICONE Hose 2 60 mm602.2
TS-SILICONE2-063SILICONE Hose 2 63 mm652.2
TS-SILICONE2-065SILICONE Hose 2 65 mm652.2
TS-SILICONE2-070SILICONE Hose 2 70 mm702.2
TS-SILICONE2-076SILICONE Hose 2 76 mm752.1
TS-SILICONE2-080SILICONE Hose 2 80 mm802.1
TS-SILICONE2-083SILICONE Hose 2 83 mm802.1
TS-SILICONE2-090SILICONE Hose 2 90 mm902
TS-SILICONE2-095SILICONE Hose 2 95 mm902
TS-SILICONE2-102SILICONE Hose 2 102 mm1001.8
TS-SILICONE2-108SILICONE Hose 2 108 mm1001.8
TS-SILICONE2-110SILICONE Hose 2 110 mm1101.7
TS-SILICONE2-114SILICONE Hose 2 114 mm1101.7
TS-SILICONE2-120SILICONE Hose 2 120 mm1201.5
TS-SILICONE2-127SILICONE Hose 2 127 mm1251.5
TS-SILICONE2-130SILICONE Hose 2 130 mm1301.4
TS-SILICONE2-140SILICONE Hose 2 140 mm1401.4
TS-SILICONE2-152SILICONE Hose 2 152 mm1501.1
TS-SILICONE2-160SILICONE Hose 2 160 mm1600.9
TS-SILICONE2-165SILICONE Hose 2 165 mm1600.9
TS-SILICONE2-178SILICONE Hose 2 178 mm1800.8
TS-SILICONE2-180SILICONE Hose 2 180 mm1800.8
TS-SILICONE2-203SILICONE Hose 2 203 mm2000.6
TS-SILICONE2-230SILICONE Hose 2 230 mm2250.5
TS-SILICONE2-254SILICONE Hose 2 254 mm2500.4
TS-SILICONE2-305SILICONE Hose 2 305 mm3000.2

Lightweight, very flexible and elastic hose designed for the extraction of hot vapors, smoke, gases, blowing, and the discharge of cooling air. Reinforced version of the SILICONE 1 hose, featuring two layers of fabric coated with silicone and a steel spiral placed between the layers. Chemically resistant, UV resistant, and aging resistant. Used, among others, for gas extraction in the metallurgical industry, foundries, glass and ceramic industries, for hot air in industrial dryers, in printing houses and paper mills, in vehicles and engines for cooling air, incinerators, as well as for the extraction of exhaust gases and welding fumes. Smooth inside (when straightened), with a very small bending radius allowing easy installation in tight spaces of equipment and vehicles. Not recommended for continuous dynamic bending. Installation with clamps. Other diameters and lengths, soft ends of sections, etc., available on special order. Hose material: two layers of glass fabric coated with red silicone. Reinforcement: steel wire spiral, double external fiberglass cord. Operating temperature: from -70°C to +250°C (temporarily up to +300°C).

Additional information

Material

GF – fiberglass

Maximum operating temperature [°C]

250

Minimum operating temperature [°C]

-70

Vacuum resistance

yes

Standard length [m]

25, 4

Reinforcement

steel spiral

Additional information

Material

GF – fiberglass

Maximum operating temperature [°C]

250

Minimum operating temperature [°C]

-70

Vacuum resistance

yes

Standard length [m]

25, 4

Reinforcement

steel spiral
