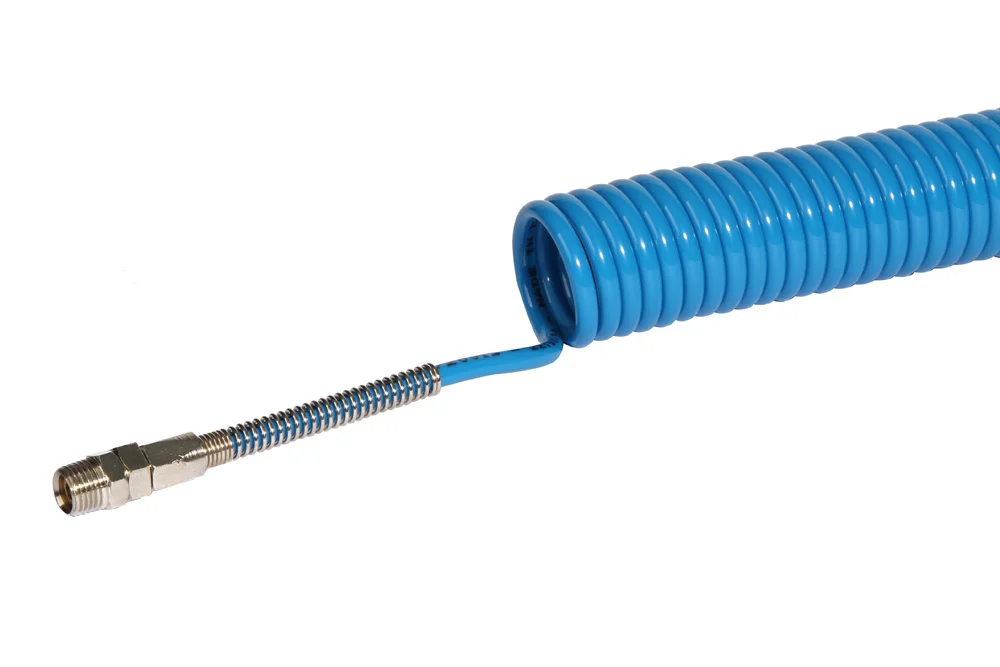

SPCRB polyurethane spiral air hose
Polyurethane spiral hose designed for pneumatic control systems, hand tools, industrial robots, etc. Resistant to abrasion, rupture, and kinking, successfully used in the automotive industry as well. Its high flexibility is maintained even after many years of use. Finished on both ends with straight sections of 100 mm and 500 mm and external BSPT threaded ends (without springs for an outer diameter of 16 mm). The stated total length is the maximum length of the hose when stretched. Hose material: blue polyurethane PUR. Working pressure: up to 17 bar (depending on hose diameter). Operating temperature: from -40°C to +60°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| ZC-SPCRB-06-025 | Spiral hose PU SPCRB 6x4 mm, L=2.5 m with GZ 1/4" | 4 | 13 | |
| ZC-SPCRB-06-050 | Spiral hose PU SPCRB 6x4 mm, L=5 m with GZ 1/4" | 4 | 13 | |
| ZC-SPCRB-06-075 | Spiral hose PU SPCRB 6x4 mm, L=7.5 m with GZ 1/4" | 4 | 13 | |
| ZC-SPCRB-08-025 | Spiral hose PU SPCRB 8x5 mm, L=2.5 m with GZ 1/4" | 5 | 17 | |
| ZC-SPCRB-08-050 | Spiral hose PU SPCRB 8x5 mm, L=5 m with GZ 1/4" | 5 | 17 | |
| ZC-SPCRB-08-075 | Spiral hose PU SPCRB 8x5 mm, L=7.5 m with GZ 1/4" | 5 | 17 | |
| ZC-SPCRB-10-025 | Spiral hose PU SPCRB 10x6.5 mm, L=2.5 m with GZ 1/4" | 6 | 13 | |
| ZC-SPCRB-10-050 | Spiral hose PU SPCRB 10x6.5 mm, L=5 m with GZ 1/4" | 6 | 13 | |
| ZC-SPCRB-10-075 | Spiral hose PU SPCRB 10x6.5 mm, L=7.5 m with GZ 1/4" | 6 | 13 | |
| ZC-SPCRB-12-025 | Spiral hose PU SPCRB 12x8 mm, L=2.5 m with GZ 3/8" | 8 | 9 | |
| ZC-SPCRB-12-050 | Spiral hose PU SPCRB 12x8 mm, L=5 m with GZ 3/8" | 8 | 9 | |
| ZC-SPCRB-12-075 | Spiral hose PU SPCRB 12x8 mm, L=7.5 m with GZ 3/8" | 8 | 9 | |
| ZC-SPCRB-16-025 | Spiral hose PU SPCRB 16x10 mm, L=2.5 m with GZ 3/8" | 10 | 16 | |
| ZC-SPCRB-16-050 | Spiral hose PU SPCRB 16x10 mm, L=5 m with GZ 3/8" | 10 | 16 | |
| ZC-SPCRB-16-075 | Spiral hose PU SPCRB 16x10 mm, L=7.5 m with GZ 3/8" | 10 | 16 |
Polyurethane spiral hose designed for pneumatic control systems, hand tools, industrial robots, etc. Resistant to abrasion, rupture, and kinking, successfully used in the automotive industry as well. Its high flexibility is maintained even after many years of use. Finished on both ends with straight sections of 100 mm and 500 mm and external BSPT threaded ends (without springs for an outer diameter of 16 mm). The stated total length is the maximum length of the hose when stretched. Hose material: blue polyurethane PUR. Working pressure: up to 17 bar (depending on hose diameter). Operating temperature: from -40°C to +60°C.
Additional information
| Material | B – brass (bronze) |
|---|---|
| Maximum operating temperature [°C] | 60 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | no |
