Is the Straight connector with BSPT male thread, type R 1C NSF safe for use with hot drinking water up to 150Â°C and compliant with NSF/ANSI 51 and 61?

Yes. The Straight connector with BSPT male thread, type R 1C NSF is designed for the food industry and specifically stated for cold or hot drinking water. Its specifications show: - Operating temperature range: â20Â°C to +150Â°C (suitable up to 150Â°C) - No plastic components; nickelâplated brass body with Viton seals (FDAâapproved for food contact) - Standards: compliant with NSF/ANSI 51 and NSF/ANSI 61 - Working pressure: 16 bar Therefore it is suitable and compliant for use with hot drinking water up to 150Â°C and meets NSF/ANSI 51 and 61 requirements.

Can the Straight connector with BSPT male thread, type R 1C NSF be used with detergents and chemicals without degrading seals or plating?

Yes. The Straight connector with BSPT male thread, type R 1C NSF is specifically designed for use with detergents and many chemicals without degrading seals or plating. It has no plastic components, features nickel plating applied via a special chemical process, and uses Viton seals (FDA food-contact approved), providing high chemical and detergent resistance. Its operating range (â20Â°C to +150Â°C), 16 bar working pressure and compliance with NSF/ANSI 51 and 61 make it suitable for food industry use and for various chemical, pharmaceutical, electronic and medical applications.

Does the Straight connector with BSPT male thread, type R 1C NSF require special maintenance after use with food-grade chemicals?

No special maintenance is required beyond normal cleaning and rinsing procedures appropriate for food-grade equipment. Reasoning: The Straight connector with BSPT male thread, type R 1C NSF is specifically designed for the food industry, uses no plastic components, and features nickel-plated brass construction with Viton seals approved for food contact (FDA). Its materials provide high resistance to detergents and food-grade chemicals, and it meets NSF/ANSI 51 and 61 standards. Operating range (â20Â°C to +150Â°C, up to 16 bar) and chemical compatibility make it suitable for repeated use with common food and cleaning agents. Recommended routine care: - Rinse thoroughly with potable water after use to remove residues. - Clean with standard food-industry detergents compatible with Viton (avoid chemicals known to attack Vitonâstrong oxidizers may require manufacturer guidance). - Inspect seals and threads periodically for wear or damage; replace Viton seals if degraded. - Dry or store in appropriate conditions to prevent contamination. If using aggressive or unusual chemicals, consult chemical compatibility charts or the connector manufacturer for specific guidance.

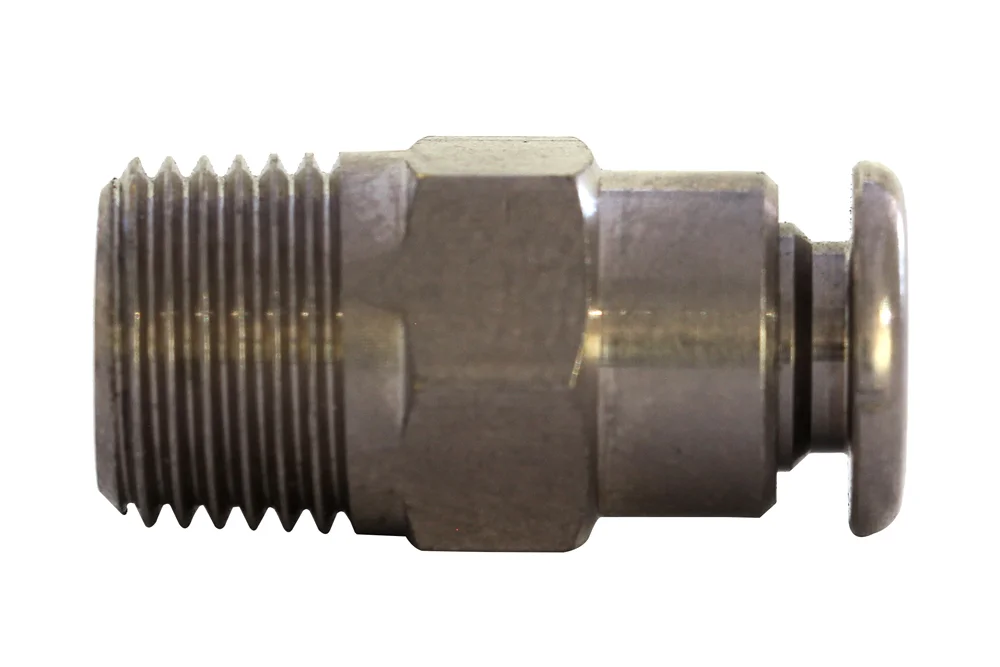

Straight connector with BSPT male thread, type R 1C NSF

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

Straight connection with external tapered BSPT thread, series F type R 1C NSF. Designed for the food industry (e.g., for cold or hot drinking water). No plastic components, nickel plating through a special chemical process, and Viton seals ensure high resistance to detergents and other chemicals. Also suitable for various applications in the chemical, pharmaceutical, electronic industries, and in medicine. Operating temperature: from -20°C to +150°C. Working pressure: 16 bar. Vacuum: 0.99 bar. Material: nickel-plated brass. Seal: Viton (approved for food contact by the FDA). Standards: NSF/ANSI 51, NSF/ANSI 61.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2F01C02	Straight connector R1C NSF hose 4 mm, GZ BSPT 1/8"	-	16	In stock	Enquiry
MW-2F01C07	Straight connector R1C NSF hose 6 mm, GZ BSPT 1/8"	-	16	In stock	Enquiry
MW-2F01C08	Straight connector R1C NSF hose 6 mm, GZ BSPT 1/4"	-	16	In stock	Enquiry
MW-2F01C09	Straight connector R1C NSF hose 8 mm, GZ BSPT 1/8"	-	16	In stock	Enquiry
MW-2F01C10	Straight connector R1C NSF hose 8 mm, GZ BSPT 1/4"	-	16	In stock	Enquiry
MW-2F01C11	Straight connector R1C NSF hose 8 mm, GZ BSPT 3/8"	-	16	In stock	Enquiry
MW-2F01C13	Straight connector R1C NSF hose 10 mm, GZ BSPT 1/4"	-	16	In stock	Enquiry
MW-2F01C14	Straight connector R1C NSF hose 10 mm, GZ BSPT 3/8"	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Straight connection with external tapered BSPT thread, series F type R 1C NSF. Designed for the food industry (e.g., for cold or hot drinking water). No plastic components, nickel plating through a special chemical process, and Viton seals ensure high resistance to detergents and other chemicals. Also suitable for various applications in the chemical, pharmaceutical, electronic industries, and in medicine. Operating temperature: from -20°C to +150°C. Working pressure: 16 bar. Vacuum: 0.99 bar. Material: nickel-plated brass. Seal: Viton (approved for food contact by the FDA). Standards: NSF/ANSI 51, NSF/ANSI 61.
