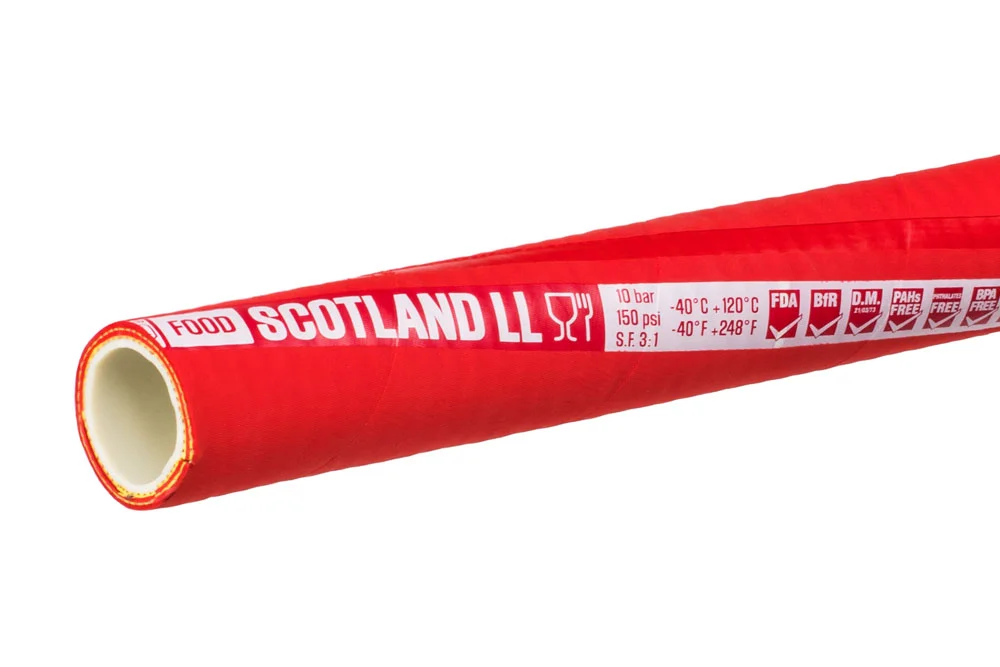

SCOTLAND LL BE® suction and discharge hose for strong alcohols
High-quality suction and discharge hose designed for the transfer of wine, beer, fruit juices, and other food substances free of fats, requiring the use of odorless and tasteless rubber. It is free from phthalates and bisphenol A. Designed for high-class wines and spirits, for use in breweries and distilleries. Widely used in the spirits industry for the transfer of strong alcohols with concentrations up to 96%. It features copper wires that ensure electrical continuity between the hose ends, enhancing the safety of transferring high-proof, flammable alcohol (ensure contact of the wire with the end during installation). The outer layer is resistant to abrasion, aging, and weather conditions. Standards and requirements: Food industry, food contact 1935/2004/EC, 2023/2006/EC (GMP). Inner layer compliant with FDA 21 CFR 177.2600, BfR XXI cat.2, D.M. 21/03/73. Inner layer: white butyl rubber (IIR). Reinforcement: synthetic cord, steel spiral. Outer layer: red butyl rubber (IIR). Working pressure: 10 bar. Vacuum: 0.9 bar. Operating temperature: from -40°C to +120°C.
List of product variants
Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
---|---|---|---|---|
IV-SCOT-LL-BE-019 | Hose SCOTLAND/LL BE 19x32 mm | 20 | 10 | |
IV-SCOT-LL-BE-025 | Hose SCOTLAND/LL BE 25x38 mm | 25 | 10 | |
IV-SCOT-LL-BE-032 | Hose SCOTLAND/LL BE 32x46 mm | 32 | 10 | |
IV-SCOT-LL-BE-038 | Hose SCOTLAND/LL BE 38x52 mm | 38 | 10 | |
IV-SCOT-LL-BE-051 | Hose SCOTLAND/LL BE 51x65 mm | 50 | 10 | |
IV-SCOT-LL-BE-063 | Hose SCOTLAND/LL BE 63.5x80 mm | 65 | 10 | |
IV-SCOT-LL-BE-076 | Hose SCOTLAND/LL BE 76x93 mm | 75 | 10 | |
IV-SCOT-LL-BE-102 | Hose SCOTLAND/LL BE 102x120 mm | 100 | 10 |
High-quality suction and discharge hose designed for the transfer of wine, beer, fruit juices, and other food substances free of fats, requiring the use of odorless and tasteless rubber. It is free from phthalates and bisphenol A. Designed for high-class wines and spirits, for use in breweries and distilleries. Widely used in the spirits industry for the transfer of strong alcohols with concentrations up to 96%. It features copper wires that ensure electrical continuity between the hose ends, enhancing the safety of transferring high-proof, flammable alcohol (ensure contact of the wire with the end during installation). The outer layer is resistant to abrasion, aging, and weather conditions. Standards and requirements: Food industry, food contact 1935/2004/EC, 2023/2006/EC (GMP). Inner layer compliant with FDA 21 CFR 177.2600, BfR XXI cat.2, D.M. 21/03/73. Inner layer: white butyl rubber (IIR). Reinforcement: synthetic cord, steel spiral. Outer layer: red butyl rubber (IIR). Working pressure: 10 bar. Vacuum: 0.9 bar. Operating temperature: from -40°C to +120°C.
Additional information
Material | IIR – butyl rubber |
---|---|
Maximum operating temperature [°C] | 120 |
Minimum operating temperature [°C] | -40 |
Vacuum resistance | yes |
Standard length [m] | 60 |
Reinforcement | steel spiral, synthetic cover |
