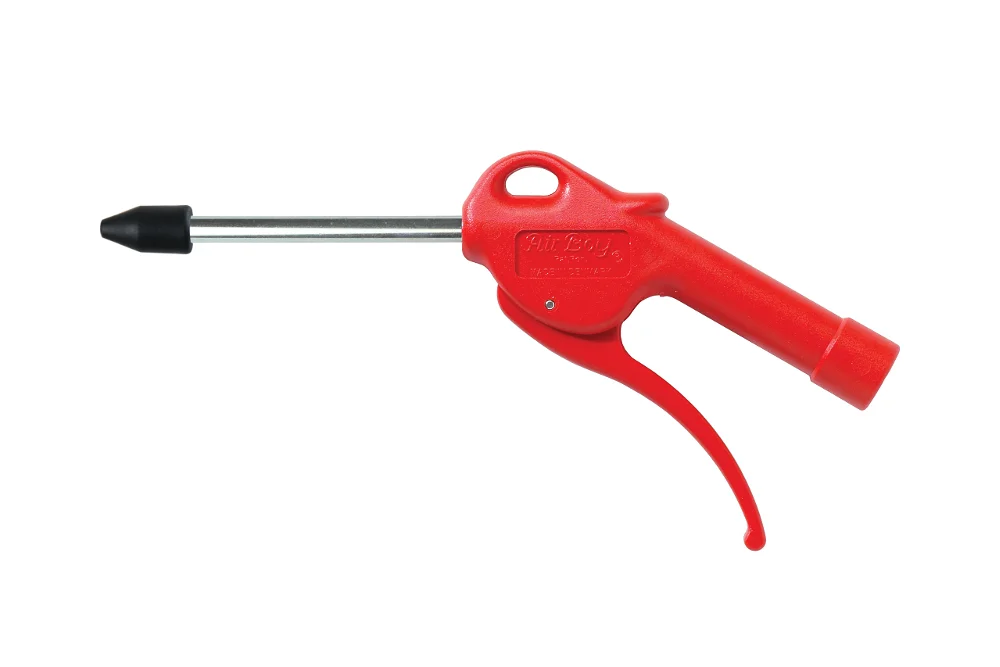

AIR BOY® NON SCRATCH air gun
Gun with a rubber nozzle (attachment) designed for removing all contaminants from delicate surfaces: liquids, fine shavings, chips, etc. Lightweight construction and ergonomic shape ensure easy and comfortable use. The gun is equipped with a rubber nozzle (attachment) that protects sensitive surfaces from scratches and damage during operation. The lever mechanism allows for precise dosing of the flowing medium. Compliant with OSHA standard 1910.95 (b) and directive 2003/10/EC. Body material: acetal. Nozzle / attachment material: galvanized steel / NBR. Sealing: NBR. Working pressure: 16 bar. Operating temperature: from -10°C to +80°C. Flow rate: 380 l/min (at 8 bar pressure). Sound intensity: 85 dB (at 8 bar pressure). Blowing force: 3.92 N.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| JW-140020-000 | AIR BOY NON SCRATCH air gun, nozzle O8 mm straight L=100 mm, 1/4" BSP thread | - | 16 | |
| JW-140021-000 | AIR BOY NON SCRATCH air gun, nozzle O8 mm bent L=100 mm, 1/4" BSP thread | - | 16 | |
| JW-140023-000 | AIR BOY NON SCRATCH air gun, short nozzle O8 mm, 1/4" BSP thread | - | 16 |
Gun with a rubber nozzle (attachment) designed for removing all contaminants from delicate surfaces: liquids, fine shavings, chips, etc. Lightweight construction and ergonomic shape ensure easy and comfortable use. The gun is equipped with a rubber nozzle (attachment) that protects sensitive surfaces from scratches and damage during operation. The lever mechanism allows for precise dosing of the flowing medium. Compliant with OSHA standard 1910.95 (b) and directive 2003/10/EC. Body material: acetal. Nozzle / attachment material: galvanized steel / NBR. Sealing: NBR. Working pressure: 16 bar. Operating temperature: from -10°C to +80°C. Flow rate: 380 l/min (at 8 bar pressure). Sound intensity: 85 dB (at 8 bar pressure). Blowing force: 3.92 N.
