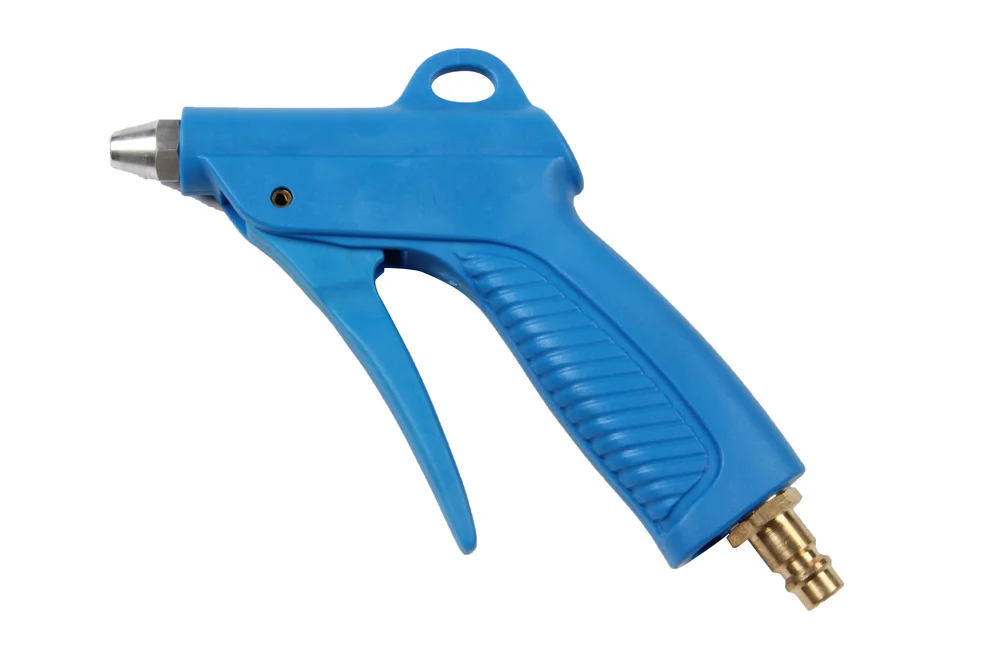

Air gun with standard nozzle, polyamide
Lightweight plastic compressed air gun designed for removing various contaminants from surfaces: liquids, fine chips, shavings, etc. Flow regulation by the degree of lever pressure. Made of durable glass fiber reinforced polyamide. Ergonomic shape and lever action that does not require force ensure user comfort. Due to its low weight and plastic construction, it is particularly recommended for the automotive, textile, electronic industries, etc. The gun is equipped with a standard nozzle with a hole diameter of 1.5 mm, interchangeable, with an external connection thread M12x1.25. Instead of the standard nozzle, other nozzles can be installed – see EWO gun accessories. Depending on the connection, we distinguish a gun finished with a EUROSTANDARD 7.2 plug, a hose end with a diameter of 6 mm, 9 mm, and 13 mm, or an internal thread of 1/4″. Material: body – blue polyamide (PA6 GK30) reinforced with glass fiber; sealing – NBR, PU. Maximum pressure: 10 bar. Operating pressure: 2 ÷ 6 bar. Operating temperature: from -10°C to +50°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| EW-47011 | Air gun with d. standard, end 6 mm (PA) | - | 10 | |
| EW-47017 | Air gun with d. standard, end 9 mm (PA) | - | 10 | |
| EW-47018 | Air gun with d. standard, end 13 mm (PA) | - | 10 | |
| EW-47040 | Air gun, standard nozzle, hole diameter 1.5 mm, G 1/4" BSP, (PA) | - | 10 | |
| EW-47041 | Air gun, standard nozzle, hole diameter 1.5 mm, plug DN 7.2, (PA) | - | 10 |
Lightweight plastic compressed air gun designed for removing various contaminants from surfaces: liquids, fine chips, shavings, etc. Flow regulation by the degree of lever pressure. Made of durable glass fiber reinforced polyamide. Ergonomic shape and lever action that does not require force ensure user comfort. Due to its low weight and plastic construction, it is particularly recommended for the automotive, textile, electronic industries, etc. The gun is equipped with a standard nozzle with a hole diameter of 1.5 mm, interchangeable, with an external connection thread M12x1.25. Instead of the standard nozzle, other nozzles can be installed – see EWO gun accessories. Depending on the connection, we distinguish a gun finished with a EUROSTANDARD 7.2 plug, a hose end with a diameter of 6 mm, 9 mm, and 13 mm, or an internal thread of 1/4″. Material: body – blue polyamide (PA6 GK30) reinforced with glass fiber; sealing – NBR, PU. Maximum pressure: 10 bar. Operating pressure: 2 ÷ 6 bar. Operating temperature: from -10°C to +50°C.
