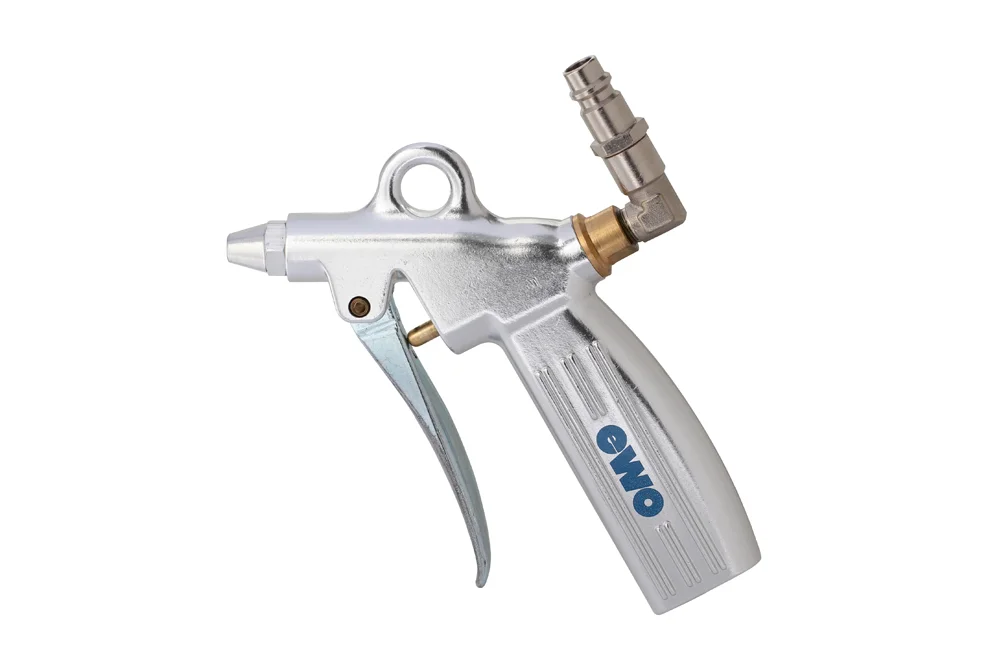

Air gun with standard nozzle, top connector DN 7.2, aluminum
High-quality aluminum compressed air gun designed for removing various contaminants from surfaces: liquids, fine chips, shavings, etc. Flow regulation by the degree of lever pressure. Made from forged aluminum, protected by anodizing, ensuring high strength, durability, and corrosion resistance. Can be used with water. Ideal for production lines, thanks to the EUROSTANDARD 7.2 plug attachment at the top of the body. The gun is equipped with a standard nozzle with a hole diameter of 1.5 mm, featuring an external connection thread M12x1.25. Other nozzles can be installed instead of the standard nozzle – see EWO gun accessories. Material: aluminum (forging). Connection material: nickel-plated brass. Nozzle hole diameter: 1.5 mm. Maximum pressure: 10 bar. Operating pressure: 2 ÷ 8 bar. Operating temperature: from -10°C to +50°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| EW-269741 | Air gun, standard nozzle, hole diameter 1.5 mm, top connector DN 7.2 | - | 10 |
High-quality aluminum compressed air gun designed for removing various contaminants from surfaces: liquids, fine chips, shavings, etc. Flow regulation by the degree of lever pressure. Made from forged aluminum, protected by anodizing, ensuring high strength, durability, and corrosion resistance. Can be used with water. Ideal for production lines, thanks to the EUROSTANDARD 7.2 plug attachment at the top of the body. The gun is equipped with a standard nozzle with a hole diameter of 1.5 mm, featuring an external connection thread M12x1.25. Other nozzles can be installed instead of the standard nozzle – see EWO gun accessories. Material: aluminum (forging). Connection material: nickel-plated brass. Nozzle hole diameter: 1.5 mm. Maximum pressure: 10 bar. Operating pressure: 2 ÷ 8 bar. Operating temperature: from -10°C to +50°C.
