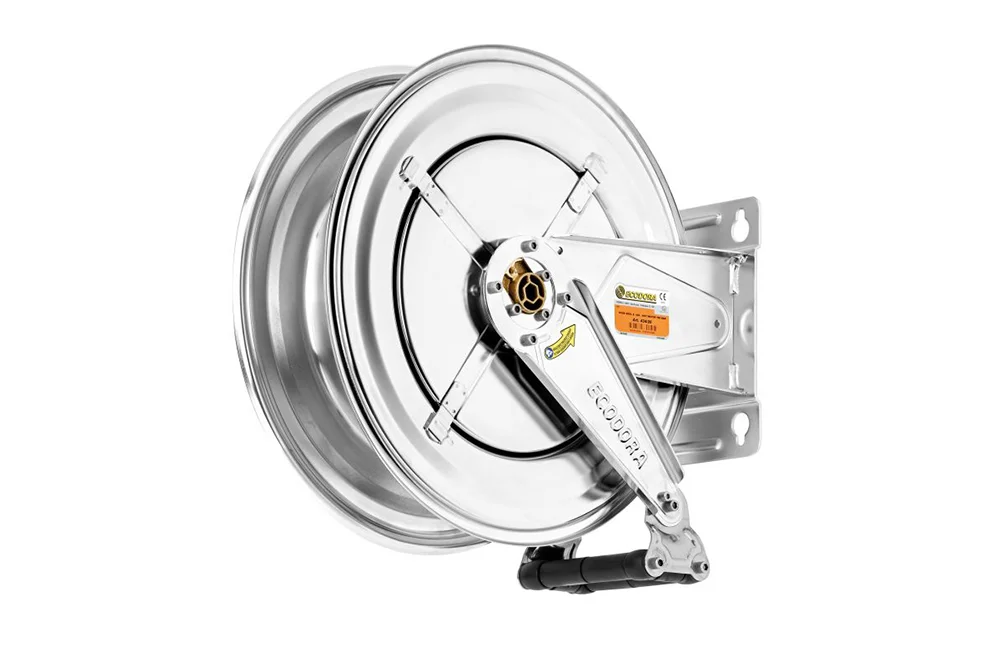

ECODORA E-354 automatic hose reel machine, stainless steel
Automatic drum reel made of stainless steel designed for cold and hot water, oil, lubricants, and other media. The retractable spring tested for 25,000 winding and unwinding cycles. Compliant with ATEX directive 94/9 IIB 2GD c T4 T135C X. Includes hose bumper. Rotating suspension or additional fixed suspension for quick disassembly (e.g., in winter) must be ordered separately. The drum is not equipped with a hose, which must also be ordered separately. For a diameter of 3/8″, the hose length that the drum can accommodate is 17 meters; for a diameter of 1/2″ – 10 meters. Material: AISI 304 steel. Sealing: viton. Operating temperature: up to +130°C (without hose).
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| ED-354-40 | Drum E-354 for hose 1/2" / 10 m or 3/8" / 17 m, AISI 304 | 10 | 150 |
Automatic drum reel made of stainless steel designed for cold and hot water, oil, lubricants, and other media. The retractable spring tested for 25,000 winding and unwinding cycles. Compliant with ATEX directive 94/9 IIB 2GD c T4 T135C X. Includes hose bumper. Rotating suspension or additional fixed suspension for quick disassembly (e.g., in winter) must be ordered separately. The drum is not equipped with a hose, which must also be ordered separately. For a diameter of 3/8″, the hose length that the drum can accommodate is 17 meters; for a diameter of 1/2″ – 10 meters. Material: AISI 304 steel. Sealing: viton. Operating temperature: up to +130°C (without hose).
Additional information
| Material | SS – stainless steel |
|---|---|
| Maximum operating temperature [°C] | 130 |
