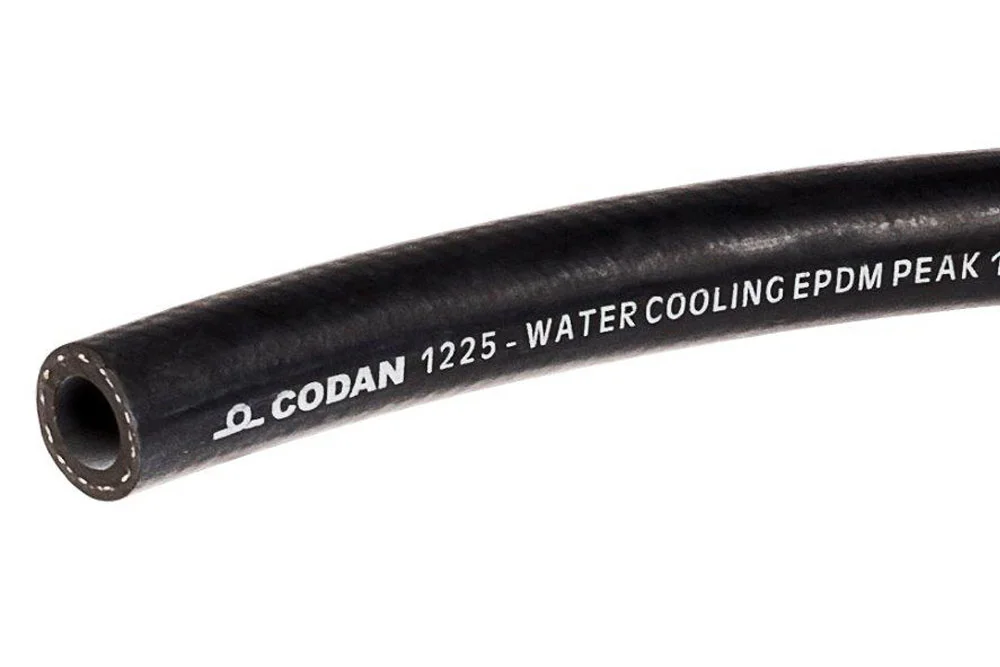

CODAN injection molding hose
Industrial hose for cold and hot water for heavy-duty conditions, requiring high flexibility, abrasion resistance, weather resistance, and ozone resistance. Used, among other applications, for cooling and thermostating injection molds. Can be used for air. Application at temperatures above +95°C reduces hose lifespan. Not oil-resistant, also not recommended for air with oil mist. Recommended installation with clamps or ferrules. Inner layer: black EPDM rubber. Reinforcement: synthetic braid. Outer layer: black, blue, or red EPDM rubber. Working pressure: 20 bar. Operating temperature: from -30°C to +95°C (20 bar), from -30°C to +140°C (10 bar), temporarily up to +160°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| CO-1225-10 | CODAN hose 1225 9.5x16.5 mm, black | 10 | 20 | |
| CO-1225-13 | CODAN hose 1225 12.7x21.5 mm, black | 12 | 20 | |
| CO-1225-19 | CODAN hose 1225 19x27 mm, black | 20 | 20 | |
| CO-1225-25 | CODAN hose 1225 25x35.5 mm, black | 25 | 20 | |
| CO-1228-10 | CODAN hose 1228 9.5x16.5 mm, blue | 10 | 20 | |
| CO-1228-13 | CODAN hose 1228 12.7x21.5 mm, blue | 12 | 20 | |
| CO-1228-19 | CODAN hose 1228 19x27 mm, blue | 20 | 20 | |
| CO-1228-25 | CODAN hose 1228 25x35.5 mm, blue | 25 | 20 | |
| CO-1229-10 | CODAN hose 1229 9.5x16.5 mm, red | 10 | 20 | |
| CO-1229-13 | CODAN hose 1229 12.7x21.5 mm, red | 12 | 20 | |
| CO-1229-19 | CODAN hose 1229 19x27 mm, red | 20 | 20 | |
| CO-1229-25 | CODAN hose 1229 25x35.5 mm, red | 25 | 20 |
Industrial hose for cold and hot water for heavy-duty conditions, requiring high flexibility, abrasion resistance, weather resistance, and ozone resistance. Used, among other applications, for cooling and thermostating injection molds. Can be used for air. Application at temperatures above +95°C reduces hose lifespan. Not oil-resistant, also not recommended for air with oil mist. Recommended installation with clamps or ferrules. Inner layer: black EPDM rubber. Reinforcement: synthetic braid. Outer layer: black, blue, or red EPDM rubber. Working pressure: 20 bar. Operating temperature: from -30°C to +95°C (20 bar), from -30°C to +140°C (10 bar), temporarily up to +160°C.
Additional information
| Material | EPDM – ethylene-propylene-diene rubber |
|---|---|
| Maximum operating temperature [°C] | 95 |
| Minimum operating temperature [°C] | -30 |
| Vacuum resistance | no |
| Standard length [m] | 20/ 30, 30, 40, 50, 50/ 100 |
| Reinforcement | synthetic braid |
