Prasa zaciskowa FINN-POWER P32 NMS

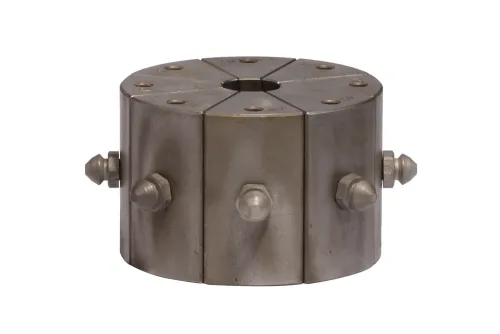

The P32 NMS crimping press is a basic stationary device for workshops, service centers, and small plants, intended for small-scale production of hoses. The larger head compared to the P20 allows for crimping hydraulic hoses up to 2″ in diameter. It is powered by a three-phase electric motor (400 V) with a power of 4 kW. The control of achieving the crimp diameter is done using an optical indicator (LED light), and once the diameter is reached, the press jaws stop. The crimp diameter setting is adjustable with a micrometric knob with a setting accuracy of 0.01 mm. All FINN-POWER crimping presses are designed to work with interchangeable jaw sets (ordered separately). For example, for a crimp diameter range from 10 to 87 mm, 17 sets of standard jaws from FP-32-10 to FP-32-78 should be ordered. The P32 NMS machine can also be equipped with a base or a bracket with sockets for storing jaws, complete with a magnetic holder for their quick exchange.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]Enquiry
FP-P32NMSFINN POWER type P32 NMS crimping press--

The P32 NMS crimping press is a basic stationary device for workshops, service centers, and small plants, intended for small-scale production of hoses. The larger head compared to the P20 allows for crimping hydraulic hoses up to 2″ in diameter. It is powered by a three-phase electric motor (400 V) with a power of 4 kW. The control of achieving the crimp diameter is done using an optical indicator (LED light), and once the diameter is reached, the press jaws stop. The crimp diameter setting is adjustable with a micrometric knob with a setting accuracy of 0.01 mm. All FINN-POWER crimping presses are designed to work with interchangeable jaw sets (ordered separately). For example, for a crimp diameter range from 10 to 87 mm, 17 sets of standard jaws from FP-32-10 to FP-32-78 should be ordered. The P32 NMS machine can also be equipped with a base or a bracket with sockets for storing jaws, complete with a magnetic holder for their quick exchange.

Additional information

Standard length [m]

50

Additional information

Standard length [m]

50
