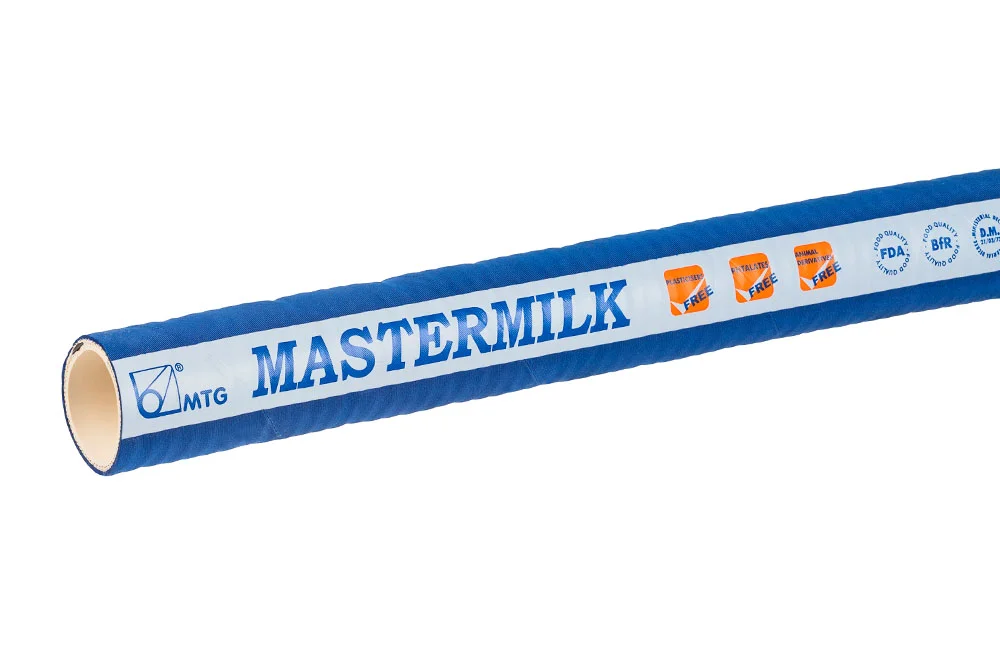

Flexible and flexible hose for milk and oily substances MASTERMILK SD

Flexible and elastic, easy to operate suction and discharge hose designed for the transfer of fatty and non-fatty food substances, requiring the use of odorless and tasteless rubber. It contains no plasticizers, phthalates, or animal-derived substances. The inner layer made of NBR is resistant to standard cleaning agents and processes used in the food industry. The outer layer is resistant to temporary contact with animal and vegetable fats. Particularly recommended for applications requiring a small bending radius with good pressure and vacuum resistance. Widely used in the dairy industry and for the transfer of milk under normal operating conditions. Not recommended for transfer applications in heavy working conditions and under pulsating pressure. Standards and requirements: 1) General: EC 2002/95 (RoHS), EC 1907/2006 (REACH). 2) Food industry, contact with food: EC 1935/2004, EC 2023/2006 (GMP). Inner layer compliant with D.M. 21/03/73, FDA 21 CFR 177.2600, BfR, 3A Sanitary Standards, RAL (German Institute for Quality Assurance and Certification). Inner layer: white NBR rubber. Reinforcement: synthetic cord, steel spiral. Outer layer: blue synthetic rubber. Working pressure: 10 bar. Vacuum: 0.9 bar. Operating temperature: from -20°C to +90°C.

List of product variants

Article numberProduct variant nameNominal inner diameterWorking pressure [bar]Enquiry
MT-MASTERMILK-SD-019MASTERMILK/SD hose 19x30 mm2010
MT-MASTERMILK-SD-025HOSE MASTERMILK/SD 25x36 mm2510
MT-MASTERMILK-SD-032MASTERMILK hose/SD 32x43 mm3210
MT-MASTERMILK-SD-038MASTERMILK/SD hose 38x50 mm3810
MT-MASTERMILK-SD-040MASTERMILK/SD hose 40x52 mm4010
MT-MASTERMILK-SD-045MASTERMILK/SD hose 45x57 mm4510
MT-MASTERMILK-SD-050MASTERMILK/SD hose 50x62 mm5010
MT-MASTERMILK-SD-063MASTERMILK/SD hose 63.5x76.5 mm6510
MT-MASTERMILK-SD-065MASTERMILK/SD hose 65x78 mm6510
MT-MASTERMILK-SD-075HOSE MASTERMILK/SD 75x89 mm7510
MT-MASTERMILK-SD-100MASTERMILK/SD hose 100x115 mm10010

Flexible and elastic, easy to operate suction and discharge hose designed for the transfer of fatty and non-fatty food substances, requiring the use of odorless and tasteless rubber. It contains no plasticizers, phthalates, or animal-derived substances. The inner layer made of NBR is resistant to standard cleaning agents and processes used in the food industry. The outer layer is resistant to temporary contact with animal and vegetable fats. Particularly recommended for applications requiring a small bending radius with good pressure and vacuum resistance. Widely used in the dairy industry and for the transfer of milk under normal operating conditions. Not recommended for transfer applications in heavy working conditions and under pulsating pressure. Standards and requirements: 1) General: EC 2002/95 (RoHS), EC 1907/2006 (REACH). 2) Food industry, contact with food: EC 1935/2004, EC 2023/2006 (GMP). Inner layer compliant with D.M. 21/03/73, FDA 21 CFR 177.2600, BfR, 3A Sanitary Standards, RAL (German Institute for Quality Assurance and Certification). Inner layer: white NBR rubber. Reinforcement: synthetic cord, steel spiral. Outer layer: blue synthetic rubber. Working pressure: 10 bar. Vacuum: 0.9 bar. Operating temperature: from -20°C to +90°C.

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

90

Minimum operating temperature [°C]

-20

Vacuum resistance

yes

Standard length [m]

40, 50

Reinforcement

steel spiral, synthetic cover

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

90

Minimum operating temperature [°C]

-20

Vacuum resistance

yes

Standard length [m]

40, 50

Reinforcement

steel spiral, synthetic cover
