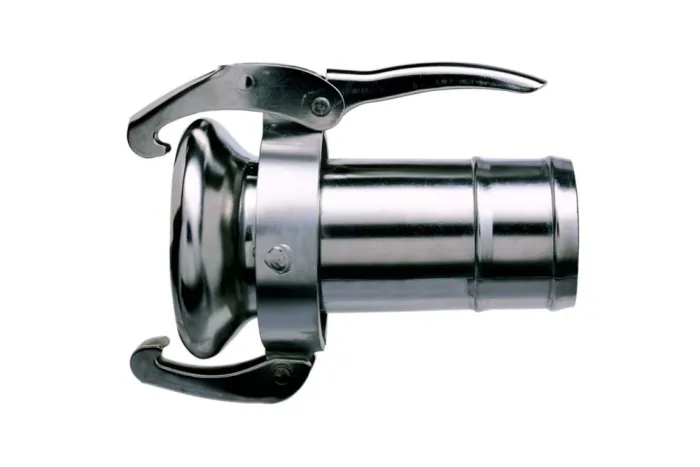

LAUX 42 lever connector socket with hose end, carbon steel, KMS
LAUX 42 lever connector socket with “tail” for hose with wide applications, e.g.: for the transport and unloading of bulk materials (grains, flours, feeds, granules, cement, minerals), for pressure and vacuum pumps, for the construction of temporary water and air installations in construction, mining, agriculture, for irrigation systems. When selecting a connector for a medium other than water, attention should be paid to the correct selection of seal material. The standard sealing is an EPDM gasket. Material: carbon steel, galvanized. Maximum working pressure: 12.5 bar (for liquids), 8 bar (for air). Tightness under vacuum. Operating temperature: from -50°C to +120°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| TF-KMS-038-040 | KMS socket 38 mm for 40 mm hose, galvanized steel. | 40 | 12.5 | |
| TF-KMS-048-040 | KMS socket 48 mm for 40 mm hose, galvanized steel. | 40 | 12.5 | |
| TF-KMS-048-050 | KMS socket 48 mm for 50 mm hose, galvanized steel. | 50 | 12.5 | |
| TF-KMS-076-050 | KMS socket 76 mm for 50 mm hose, galvanized steel. | 50 | 12.5 | |
| TF-KMS-076-065 | KMS socket 76 mm for hose 65 mm, galvanized steel. | 65 | 12.5 | |
| TF-KMS-076-075 | KMS socket 76 mm for hose 75 mm, galvanized steel. | 75 | 12.5 | |
| TF-KMS-076-080 | KMS socket 76 mm for 80 mm hose, galvanized steel. | 80 | 12.5 | |
| TF-KMS-102-075 | KMS socket 102 mm for 75 mm hose, galvanized steel. | 75 | 12.5 | |
| TF-KMS-102-080 | KMS socket 102 mm for 80 mm hose, galvanized steel. | 80 | 12.5 | |
| TF-KMS-102-090 | KMS socket 102 mm for 90 mm hose, galvanized steel. | 90 | 12.5 | |
| TF-KMS-102-100 | KMS socket 102 mm for 100 mm hose, galvanized steel. | 100 | 12.5 | |
| TF-KMS-133-125 | KMS socket 133 mm for hose 125 mm, galvanized steel. | 125 | 12.5 | |
| TF-KMS-152-150 | KMS socket 152 mm for hose 150 mm, galvanized steel. | 150 | 12.5 | |
| TF-KMS-204-200 | KMS socket 204 mm for 200 mm hose, galvanized steel. | 200 | 12.5 |
LAUX 42 lever connector socket with “tail” for hose with wide applications, e.g.: for the transport and unloading of bulk materials (grains, flours, feeds, granules, cement, minerals), for pressure and vacuum pumps, for the construction of temporary water and air installations in construction, mining, agriculture, for irrigation systems. When selecting a connector for a medium other than water, attention should be paid to the correct selection of seal material. The standard sealing is an EPDM gasket. Material: carbon steel, galvanized. Maximum working pressure: 12.5 bar (for liquids), 8 bar (for air). Tightness under vacuum. Operating temperature: from -50°C to +120°C.
Additional information
| Material | CS – steel (cast iron) |
|---|
Additional information
| Material | CS – steel (cast iron) |
|---|
