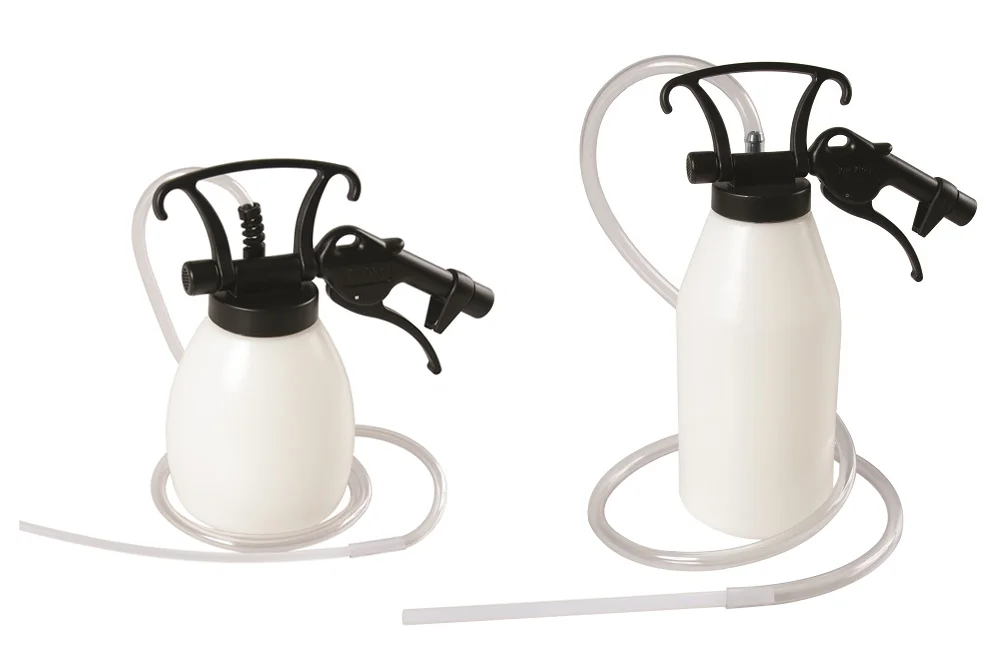

Gun for extracting oil and operating fluids, GW BSP connection
Easy-to-use air-powered gun made of durable and corrosion-resistant acetal designed for suctioning, e.g., engine oil, hydraulic oil, coolant, etc. Standardly equipped with a transparent tank with a capacity of 1.2 l and 2.0 l, facilitating the monitoring of the suctioned oil or other fluids, and a suction hose 1.5 meters long ending with a rigid tube with an outer diameter of Ø 10 mm (tube length 26 cm). Continuous operation is possible thanks to the lever lock. For engine oil, suction is recommended with a warm engine – min. oil temperature 50°C. Important! Not to be used for explosive fluids, e.g., gasoline. Material: gun, handle, cover, valve – acetal (POM); tank – polyethylene (PE); sealing – NBR; suction hose – PVC; tube – polyamide (PA11). Operating pressure: 6 ÷ 12 bar.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| JW-147150-134 | Oil and fluid suction gun, tank 1.2 l, GW 1/4" BSP | - | 12 | |
| JW-147160-134 | Oil and fluid suction gun, tank 2.0 l, GW 1/4" BSP | - | 12 |
