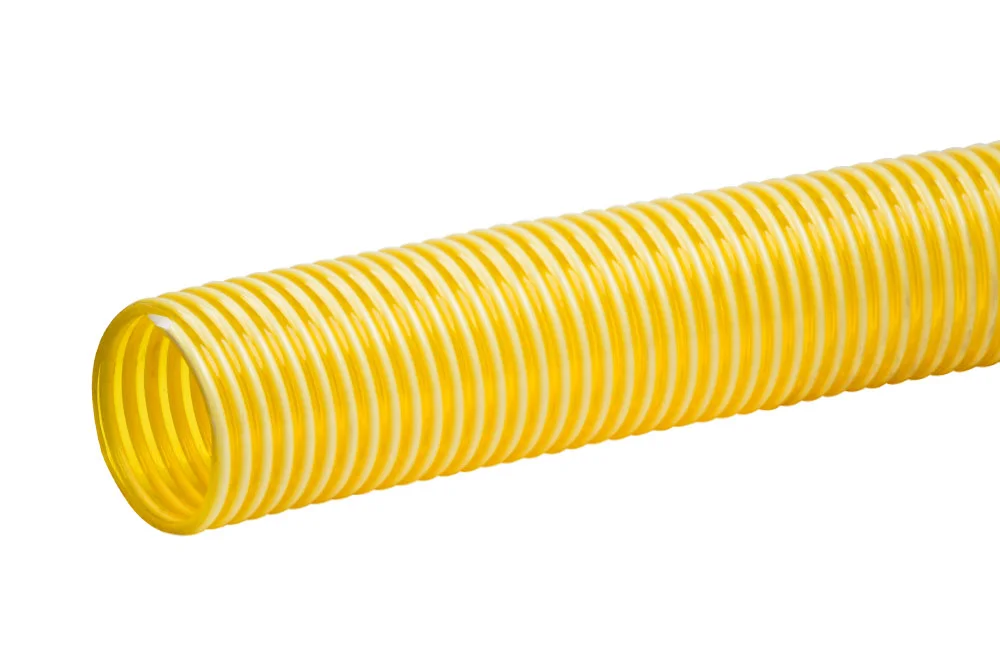

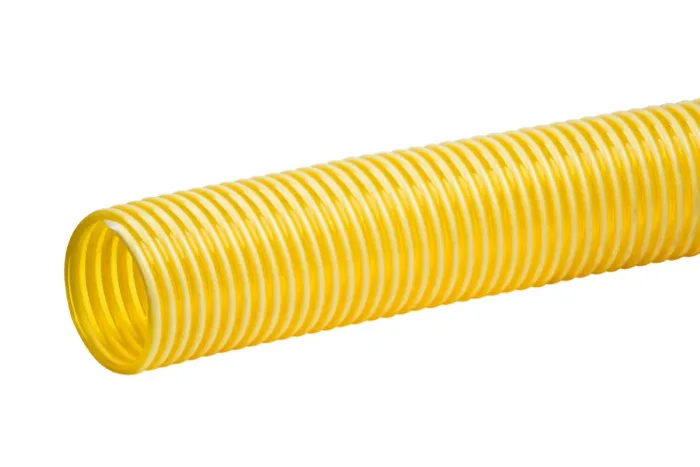

PVC hose for food substances reinforced with LUISIANA hard PVC spiral
Light and flexible suction and discharge hose intended for water, juices, beverages, beer, wine, alcohols with a concentration of up to 20%, and other food products. Not recommended for milk and its derivatives, oils, and fatty food substances. Reinforced with a hard PVC spiral, resistant to impacts, providing good resistance to vacuum and hose collapse. The transparent wall allows for easy visual monitoring of flow. The smooth inner surface reduces flow losses and ensures ease of cleaning. The outer surface is slightly corrugated. In applications not involving direct contact with food (in industry, construction, agriculture), it can be used for light chemicals, water, sludges and sewage, other liquids (without fats, oils, and hydrocarbons), as well as for air, vacuum transfer of dust, powders, granules, and other lightly abrasive bulk substances (non-fatty). Abrasiveness and potential static electricity issues should be considered. Available in an antistatic version LUISIANA AS – additionally features a copper wire embedded in the hose material parallel to the PVC spiral, which, when connected to the installation and grounded, ensures the discharge of electrostatic charges. This version is available on special order, example index for the antistatic version: e.g., ME-LUISIANA-AS-050. Standards and requirements: Food industry, contact with food: compliant with European requirements 1935/2004/EC and 10/2011/EU (simulant fluids A, B, and C), 2023/2006/EC (GMP). Hose material: transparent yellowish PVC. Reinforcement: hard PVC spiral. Working pressure: from 2 bar to 8 bar, depending on the hose diameter. Operating temperature: from -5°C to +60°C.
List of product variants
Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
---|---|---|---|---|
ME-LUISIANA-020 | LUISIANA hose 20 mm | 20 | 8 | |
ME-LUISIANA-025 | LUISIANA hose 25 mm | 25 | 8 | |
ME-LUISIANA-030 | LUISIANA hose 30 mm | 30 | 7 | |
ME-LUISIANA-032 | LUISIANA hose 32 mm | 32 | 7 | |
ME-LUISIANA-035 | LUISIANA hose 35 mm | 35 | 7 | |
ME-LUISIANA-038 | LUISIANA hose 38 mm | 38 | 6.5 | |
ME-LUISIANA-040 | LUISIANA hose 40 mm | 40 | 6.5 | |
ME-LUISIANA-045 | LUISIANA hose 45 mm | 45 | 6.5 | |
ME-LUISIANA-050 | LUISIANA hose 50 mm | 50 | 6 | |
ME-LUISIANA-060 | LUISIANA hose 60 mm | 60 | 5 | |
ME-LUISIANA-063 | LUISIANA hose 63 mm | 65 | 5 | |
ME-LUISIANA-070 | LUISIANA hose 70 mm | 70 | 4 | |
ME-LUISIANA-075 | LUISIANA hose 75 mm | 75 | 4 | |
ME-LUISIANA-080 | LUISIANA hose 80 mm | 80 | 4 | |
ME-LUISIANA-090 | LUISIANA hose 90 mm | 90 | 4 | |
ME-LUISIANA-100 | HOSE LOUISIANA 100 mm | 100 | 4 | |
ME-LUISIANA-102 | LUISIANA hose 102 mm | 100 | 4 | |
ME-LUISIANA-110 | LUISIANA hose 110 mm | 110 | 4 | |
ME-LUISIANA-120 | LUISIANA hose 120 mm | 120 | 3 | |
ME-LUISIANA-125 | LUISIANA hose 125 mm | 125 | 3 | |
ME-LUISIANA-150 | LUISIANA hose 150 mm | 150 | 3 | |
ME-LUISIANA-200 | HOSE LOUISIANA 200 mm | 200 | 2 | |
ME-LUISIANA-AS-032 | LUISIANA hose 32 mm, antistatic | 32 | 7 | |
ME-LUISIANA-AS-050 | LUISIANA hose 50 mm, antistatic | 50 | 6 | |
ME-LUISIANA-AS-060 | LUISIANA hose 60 mm, antistatic | 60 | 5 | |
ME-LUISIANA-AS-063 | LUISIANA hose 63 mm, antistatic | 65 | 5 |
Light and flexible suction and discharge hose intended for water, juices, beverages, beer, wine, alcohols with a concentration of up to 20%, and other food products. Not recommended for milk and its derivatives, oils, and fatty food substances. Reinforced with a hard PVC spiral, resistant to impacts, providing good resistance to vacuum and hose collapse. The transparent wall allows for easy visual monitoring of flow. The smooth inner surface reduces flow losses and ensures ease of cleaning. The outer surface is slightly corrugated. In applications not involving direct contact with food (in industry, construction, agriculture), it can be used for light chemicals, water, sludges and sewage, other liquids (without fats, oils, and hydrocarbons), as well as for air, vacuum transfer of dust, powders, granules, and other lightly abrasive bulk substances (non-fatty). Abrasiveness and potential static electricity issues should be considered. Available in an antistatic version LUISIANA AS – additionally features a copper wire embedded in the hose material parallel to the PVC spiral, which, when connected to the installation and grounded, ensures the discharge of electrostatic charges. This version is available on special order, example index for the antistatic version: e.g., ME-LUISIANA-AS-050. Standards and requirements: Food industry, contact with food: compliant with European requirements 1935/2004/EC and 10/2011/EU (simulant fluids A, B, and C), 2023/2006/EC (GMP). Hose material: transparent yellowish PVC. Reinforcement: hard PVC spiral. Working pressure: from 2 bar to 8 bar, depending on the hose diameter. Operating temperature: from -5°C to +60°C.
Additional information
Material | PVC – polyvinyl chloride |
---|---|
Maximum operating temperature [°C] | 60 |
Minimum operating temperature [°C] | -5 |
Vacuum resistance | yes |
Standard length [m] | 10, 25, 50, 60 |
Reinforcement | PVC spiral |
