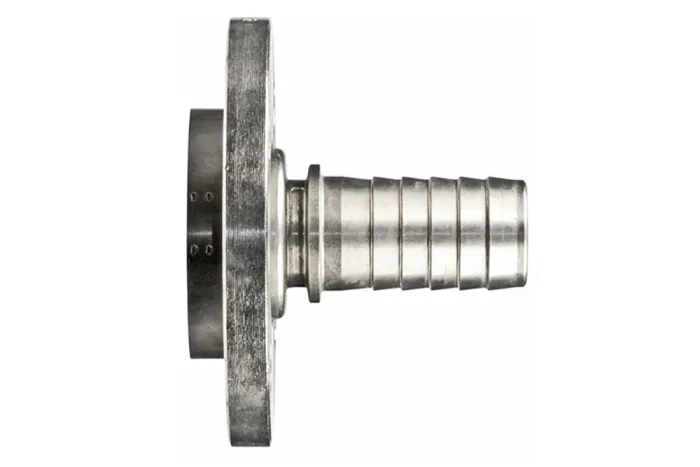

FSS swivel flange end for steam hose to EN 14423, galvanized steel
FSS end with a swivel flange, for rubber hoses for steam, with a corrugated tail for the hose, with a lock – for installation in the hose using shell clamps for steam (EN 14423, DIN 2826, sizes 1/2” to 2”). Flange according to European standards (EN 10092-1) PN40 and PN16 and according to American standards ASA (ASME) 150 PSI and 300 PSI. Material: galvanized steel. Working pressure: 18 bar (+210°C) for saturated steam and according to the working pressure of the respective flange class at this temperature; for other applications according to the working pressure for the respective flange class (e.g., PN40) – selection in contact with Tubes International.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| RS-FSA2-015-013-ST | FSS end with rotary coupling ASA 1/2", hose 1/2", galvanized steel | 12 | 18 | |
| RS-FSA2-020-019-ST | FSS end with rotary coupling ASA 3/4", hose 3/4", galvanized steel | 20 | 18 | |
| RS-FSA2-025-025-ST | FSS end with rotary coupling ASA 1", hose 1", galvanized steel | 25 | 18 | |
| RS-FSA2-032-032-ST | FSS end with rotary coupling ASA 1.1/4", hose 1.1/4", galvanized steel | 32 | 18 | |
| RS-FSA2-040-038-ST | FSS end with rotary coupling ASA 1.1/2", hose 1.1/2", galvanized steel | 38 | 18 | |
| RS-FSA2-050-050-ST | FSS end with rotary coupling ASA 2", hose 2", galvanized steel | 50 | 18 | |
| RS-FSA2-065-065-ST | FSS end with rotary coupling ASA 2.1/2", hose 2.1/2", galvanized steel | 65 | 18 | |
| RS-FSA2-080-075-ST | FSS end with rotary coupling ASA 3", hose 3", galvanized steel | 75 | 18 | |
| RS-FSA2-100-100-ST | FSS end with rotary coupling ASA 4", hose 4", galvanized steel | 100 | 18 | |
| RS-FSA4-015-013-ST | FSS end with rotary coupling ASA 300 1/2", hose 1/2", galvanized steel | 12 | 18 | |
| RS-FSA4-020-019-ST | FSS end with rotary coupling ASA 300 3/4", hose 3/4", galvanized steel | 20 | 18 | |
| RS-FSA4-025-025-ST | FSS end with rotary coupling ASA 300 1", hose 1", galvanized steel | 25 | 18 | |
| RS-FSA4-032-032-ST | FSS end with rotary coupling ASA 300 1.1/4", hose 1.1/4", galvanized steel | 32 | 18 | |
| RS-FSA4-040-038-ST | FSS end with rotary coupling ASA 300 1.1/2", hose 1.1/2", galvanized steel | 38 | 18 | |
| RS-FSA4-050-050-ST | FSS end with rotary coupling ASA 300 2", hose 2", galvanized steel | 50 | 18 | |
| RS-FSA4-065-065-ST | FSS end with rotary coupling ASA 300 2.1/2", hose 2.1/2", galvanized steel | 65 | 18 | |
| RS-FSA4-080-075-ST | FSS end with rotary coupling ASA 300 3", hose 3", galvanized steel | 75 | 18 | |
| RS-FSA4-100-100-ST | FSS end with rotary coupling ASA 300 4", hose 4", galvanized steel | 100 | 18 | |
| RS-FSS2-015-013-ST | FSS end with rotary coupling DN15 PN40, hose 1/2", galvanized steel | 12 | 18 | |
| RS-FSS2-020-019-ST | FSS end with rotary coupling DN20 PN40, hose 3/4", galvanized steel | 20 | 18 | |
| RS-FSS2-025-019-ST | FSS end with rotary coupling DN25 PN40, hose 3/4", galvanized steel | 20 | 18 | |
| RS-FSS2-025-025-ST | FSS end with rotary coupling DN25 PN40, hose 1", galvanized steel | 25 | 18 | |
| RS-FSS2-032-032-ST | FSS end with rotary coupling DN32 PN40, hose 1.1/4", galvanized steel | 32 | 18 | |
| RS-FSS2-040-038-ST | FSS end with rotary coupling DN40 PN40, hose 1.1/2", galvanized steel | 38 | 18 | |
| RS-FSS2-050-050-ST | FSS end with rotary coupling DN50 PN16, 2" hose, galvanized steel | 50 | 18 | |
| RS-FSS2-065-065-ST | FSS end with rotary coupling DN65 PN16, hose 2.1/2", galvanized steel | 65 | 18 | |
| RS-FSS2-080-075-ST | FSS end with rotary coupling DN80 PN16, 3" hose, galvanized steel | 75 | 18 | |
| RS-FSS2-100-100-ST | FSS end with rotary coupling DN100 PN16, 4" hose, galvanized steel | 100 | 18 | |
| RS-FSS4-050-050-ST | FSS end with rotary coupling DN50 PN40, 2" hose, galvanized steel | 50 | 18 | |
| RS-FSS4-065-065-ST | FSS end with rotary coupling DN65 PN40, hose 2.1/2", galvanized steel | 65 | 18 | |
| RS-FSS4-080-075-ST | FSS end with rotary coupling DN80 PN40, 3" hose, galvanized steel | 75 | 18 | |
| RS-FSS4-100-100-ST | FSS end with rotary coupling DN100 PN40, 4" hose, galvanized steel | 100 | 18 |
FSS end with a swivel flange, for rubber hoses for steam, with a corrugated tail for the hose, with a lock – for installation in the hose using shell clamps for steam (EN 14423, DIN 2826, sizes 1/2” to 2”). Flange according to European standards (EN 10092-1) PN40 and PN16 and according to American standards ASA (ASME) 150 PSI and 300 PSI. Material: galvanized steel. Working pressure: 18 bar (+210°C) for saturated steam and according to the working pressure of the respective flange class at this temperature; for other applications according to the working pressure for the respective flange class (e.g., PN40) – selection in contact with Tubes International.
Additional information
| Material | CS – steel (cast iron) |
|---|---|
| Standard length [m] | 10, 15, 30, 50 |
Additional information
| Material | CS – steel (cast iron) |
|---|---|
| Standard length [m] | 10, 15, 30, 50 |
