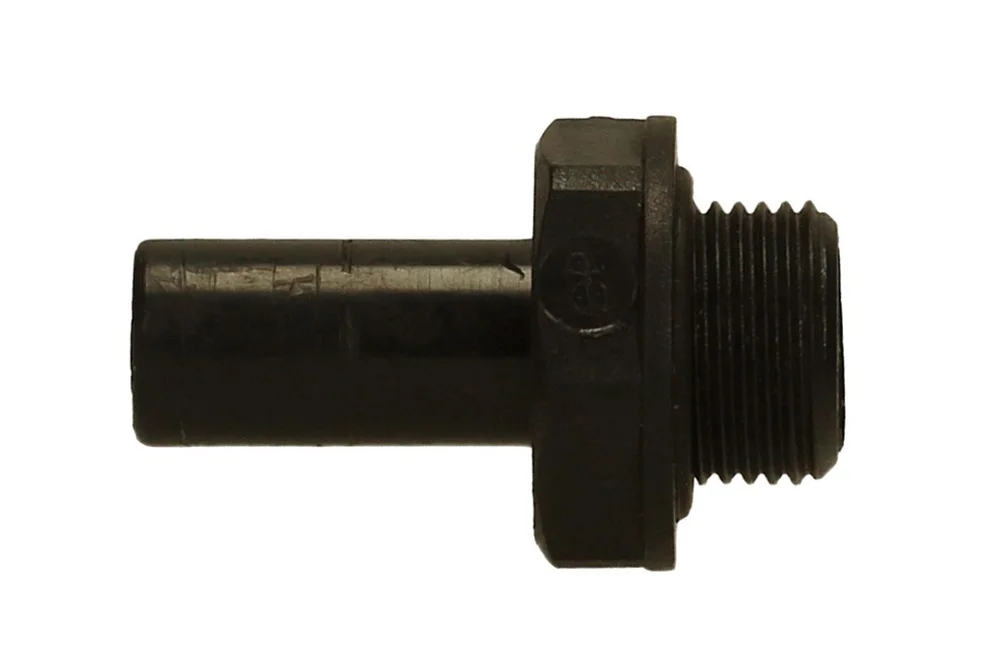

SPEEDFIT screw-in spigot with male thread, plastic
External threaded fitting for the SPEEDFIT system used in compressed air installations. The installation can be made using plastic or metal pipes (copper, brass, aluminum). By pushing the fitting into the coupling, we obtain the possibility of connecting to the installation with an internal thread. Material: plastic. Working pressure: 10 bar (+23°C), 7 bar (+70°C). Operating temperature: from -20°C to +70°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| JG-PM051213E | Screw-in nipple 12 mm x 3/8" BSP | - | 10 | |
| JG-PM051214E | Screw-in stub 12 mm x 1/2" BSP | - | 10 | |
| JG-PM051513E | Screw-in stub 15 mm x 3/8" BSP | - | 10 | |
| JG-PM051514E | Screw-in stub 15 mm x 1/2" BSP | - | 10 | |
| JG-PM051814E | Screw-in stub 18 mm x 1/2" BSP | - | 10 | |
| JG-PM052214E | Screw-in stub 22 mm x 1/2" BSP | - | 10 | |
| JG-PM052216E | Screw-in stub 22 mm x 3/4" BSP | - | 10 |
External threaded fitting for the SPEEDFIT system used in compressed air installations. The installation can be made using plastic or metal pipes (copper, brass, aluminum). By pushing the fitting into the coupling, we obtain the possibility of connecting to the installation with an internal thread. Material: plastic. Working pressure: 10 bar (+23°C), 7 bar (+70°C). Operating temperature: from -20°C to +70°C.
Additional information
| Material | P – material (plastic) |
|---|
Additional information
| Material | P – material (plastic) |
|---|
