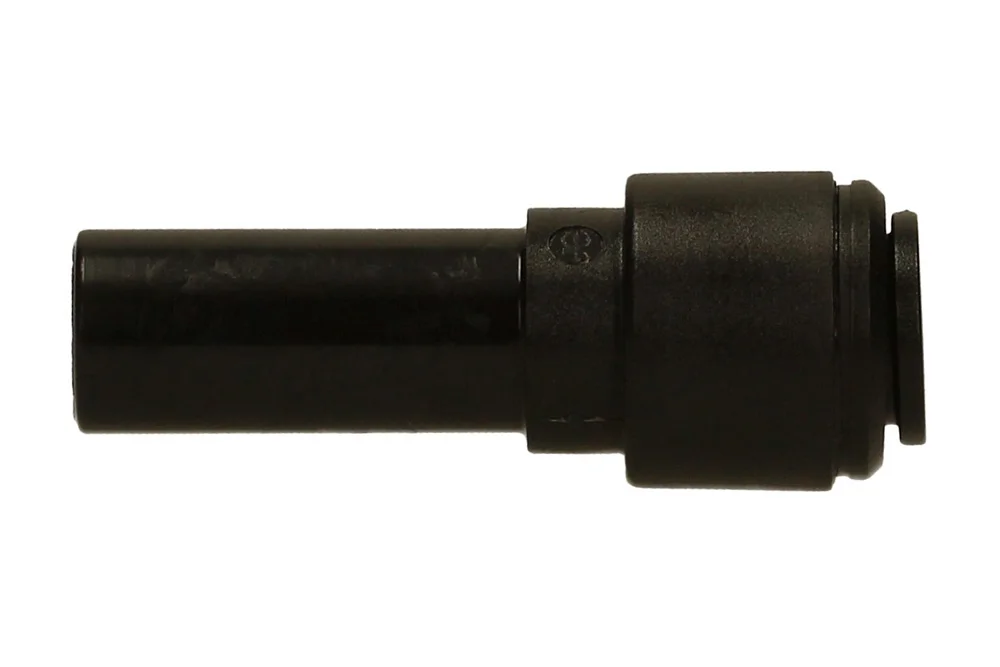

SPEEDFIT reduction fitting, plastic
Reduction fitting for the SPEEDFIT system used in compressed air installations. The installation can be made using plastic or metal pipes (copper, brass, aluminum). Material: plastic. Working pressure: 10 bar (+23°C), 7 bar (+70°C). Operating temperature: from -20°C to +70°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| JG-PM061510E | reduction fitting 15 mm x 10 mm | - | 10 | |
| JG-PM061512E | reduction fitting 15 mm x 12 mm | - | 10 | |
| JG-PM061815E | reduction fitting 18 mm x 15 mm | - | 10 | |
| JG-PM062215E | reduction fitting 22 mm x 15 mm | - | 10 | |
| JG-PM062218E | reduction fitting 22 mm x 18 mm | - | 10 | |
| JG-PM062815E | reduction fitting 28 mm x 15 mm | - | 10 | |
| JG-PM062822E | reduction fitting 28 mm x 22 mm | - | 10 |
Additional information
| Material | P – material (plastic) |
|---|---|
| Standard length [m] | 3 |
