Can a SPEEDFIT elbow connector, plastic withstand 10 bar at 23Â°C and safe operation from -20Â°C to +70Â°C?

Yes. The SPEEDFIT elbow connector, plastic is rated for a working pressure of 10 bar at +23Â°C, so it can withstand 10 bar at that temperature. Its allowable working pressure decreases with temperature . it is rated to 7 bar at +70Â°C. The specified operating temperature range is â20Â°C to +70Â°C, so safe operation within that full temperature range is supported by the product specifications. Ensure installation follows manufacturer guidelines and consider additional safety factors, cycling, or exposure conditions that might affect long-term performance.

Is the SPEEDFIT elbow connector, plastic rated for 7 bar at 70Â°C and suitable for compressed air systems?

Yes. The SPEEDFIT elbow connector, plastic is rated for 7 bar at 70Â°C and is described for use in compressed air installations. Its material is plastic and the stated working pressure is 10 bar at +23Â°C and 7 bar at +70Â°C, with an operating temperature range of -20Â°C to +70Â°C, so it is suitable for compressed air within those limits.

Does the SPEEDFIT elbow connector, plastic support repeated pressure cycles at 10 bar (23Â°C) without fatigue?

Based on the provided description, the SPEEDFIT elbow connector, plastic is rated for a working pressure of 10 bar at 23Â°C, which indicates it is designed to operate at that pressure under normal service conditions. However, the specification alone does not guarantee unlimited or indefinite resistance to repeated pressure cycles (fatigue). Fatigue resistance depends on material properties, design details (wall thickness, stress concentrations), manufacturing quality and the exact cycling profile (pressure amplitude, frequency, number of cycles, temperature variations and presence of mechanical or environmental stresses). Practical interpretation: - At 23Â°C and within the stated working pressure of 10 bar, the SPEEDFIT elbow connector, plastic is intended for continuous use and should perform reliably under static pressure. - For repeated cyclical loading (pressure cycling), many plastic fittings can tolerate a large number of cycles if the cycles stay within the rated working pressure and temperature limits, but long-term fatigue life is not assured by the single working-pressure rating alone. Recommendation: - For critical applications subject to frequent pressure cycling, vibration, or where failure has high consequences, consult the manufacturer for fatigue/cyclic testing data or choose a fitting with explicit cyclic fatigue certification or a metal alternative (copper, brass, aluminum) if higher fatigue resistance is required.

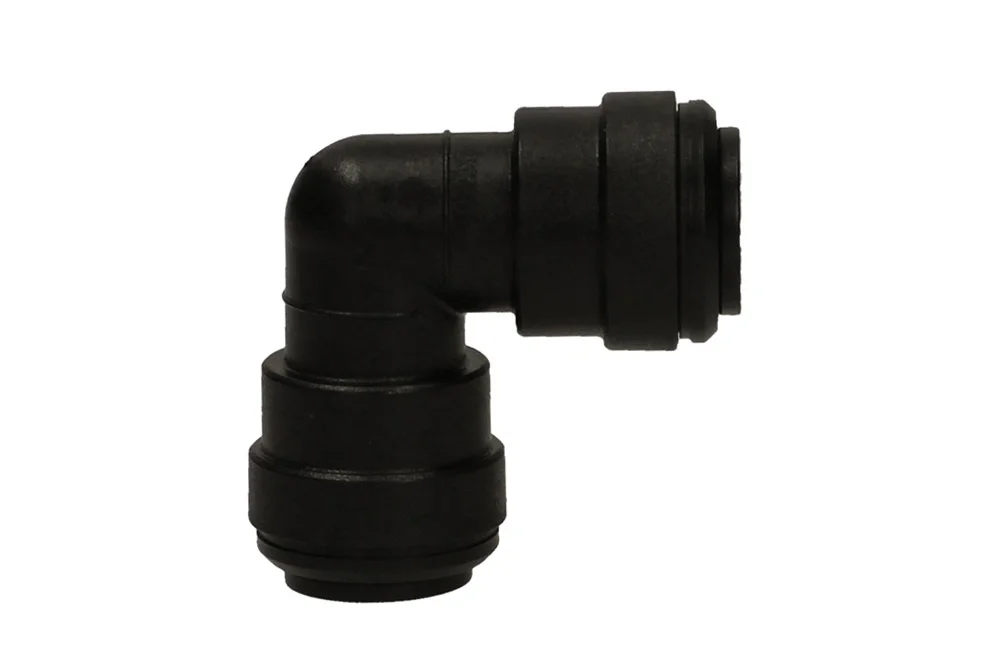

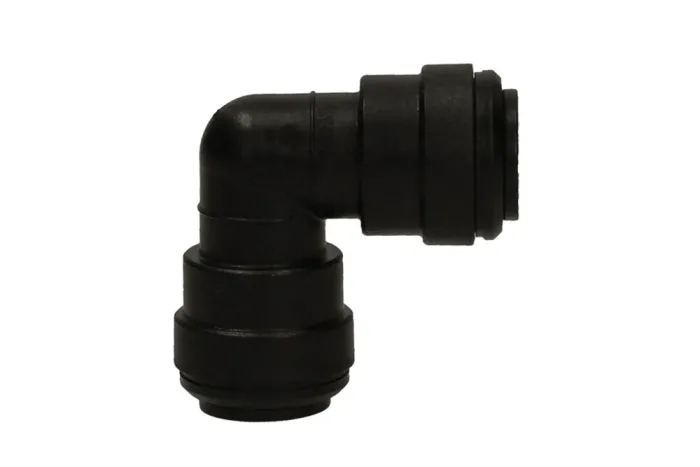

Coupling elbow SPEEDFIT, plastic plastic

All products, Pneumatic piping systems/

Additional information

Material	P – material (plastic)

Coupling elbow for the SPEEDFIT system, used in compressed-air installations. The installation can be made using plastic or metal pipes (copper, brass, aluminum). Material: plastic plastic. pressure working: 10 bar (+23°C), 7 bar (+70°C). Operating temperature: from -20°C to +70°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
JG-PM0312E	Elbow fitting 12 mm	-	10	In stock	Enquiry
JG-PM0315E	Elbow fitting 15 mm	-	10	In stock	Enquiry
JG-PM0318E	Elbow fitting 18 mm	-	10	In stock	Enquiry
JG-PM0322E	Elbow fitting 22 mm	-	10	In stock	Enquiry
JG-PM0328E	Elbow fitting 28 mm	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Coupling elbow for the SPEEDFIT system, used in compressed-air installations. The installation can be made using plastic or metal pipes (copper, brass, aluminum). Material: plastic plastic. pressure working: 10 bar (+23°C), 7 bar (+70°C). Operating temperature: from -20°C to +70°C.
