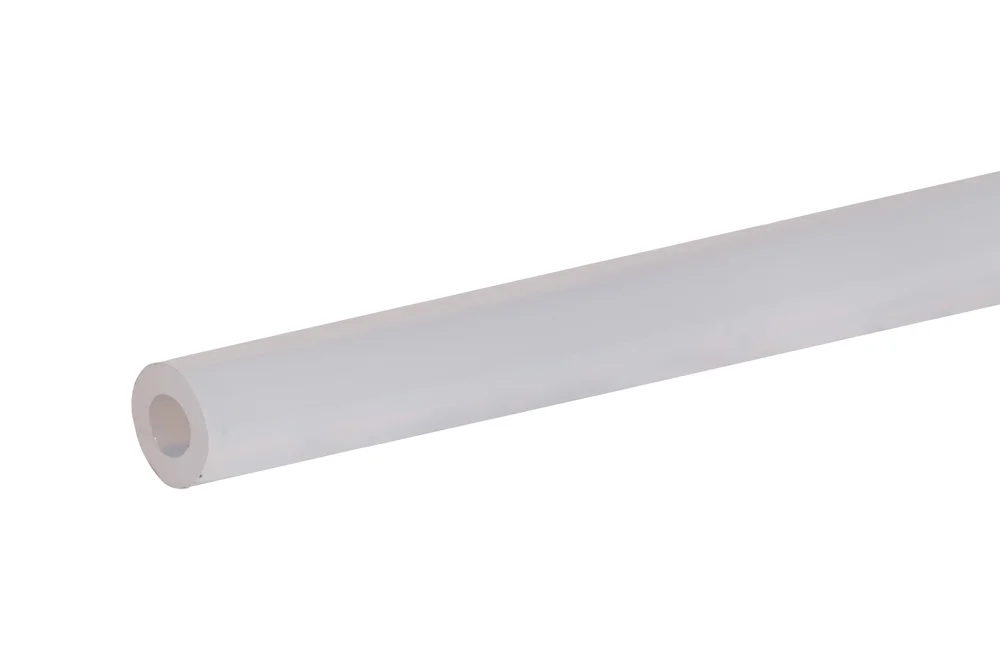

DIN 73378 polyamide pneumatic hose, PA12 X-XIPHL
Flexible and lightweight polyamide hose, intended for pneumatic, oil, fuel, and hydraulic installations, resistant to chemicals and lubricants. It has a calibrated outer diameter, allowing for the use of plug couplings, which significantly shortens and facilitates its installation. Compliant with DIN 73378 standard. Available in colors: yellow, orange, red, blue, green, natural, and black. Hose material: polyamide PA 12 (nylon). Working pressure: from 16 bar to 49 bar, depending on the diameter and wall thickness of the hose. Operating temperature: from -55°C to +100°C (for water-based media +70°C).
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| ZC-PA12H-04X02 | PA12 X-HIPHL nylon hose 4x2 mm | 2 | 49 | |
| ZC-PA12H-04X02BK | Nylon hose PA12 X-HIPHL 4x2 mm, black | 2 | 49 | |
| ZC-PA12H-04X02BL | Nylon hose PA12 X-HIPHL 4x2 mm, blue | 2 | 49 | |
| ZC-PA12H-05X03 | PA12 X-HIPHL nylon hose 5x3 mm | 3 | 37 | |
| ZC-PA12H-05X03BK | Nylon hose PA12 X-HIPHL 5x3 mm, black | 3 | 37 | |
| ZC-PA12H-05X03BL | PA12 X-HIPHL nylon hose 5x3 mm, blue | 3 | 37 | |
| ZC-PA12H-06X04 | PA12 X-HIPHL nylon hose 6x4 mm | 4 | 29 | |
| ZC-PA12H-06X04BK | Nylon hose PA12 X-HIPHL 6x4 mm, black | 4 | 29 | |
| ZC-PA12H-06X04BL | Nylon hose PA12 X-HIPHL 6x4 mm, blue | 4 | 29 | |
| ZC-PA12H-08X05 | PA12 X-HIPHL nylon hose 8x5 mm | 5 | 34 | |
| ZC-PA12H-08X05BK | Nylon hose PA12 X-HIPHL 8x5 mm, black | 5 | 34 | |
| ZC-PA12H-08X05BL | Nylon hose PA12 X-HIPHL 8x5 mm, blue | 5 | 34 | |
| ZC-PA12H-08X06 | PA12 X-HIPHL nylon hose 8x6 mm | 6 | 21 | |
| ZC-PA12H-08X06BK | Nylon hose PA12 X-HIPHL 8x6 mm, black | 6 | 21 | |
| ZC-PA12H-08X06BL | Nylon hose PA12 X-HIPHL 8x6 mm, blue | 6 | 21 | |
| ZC-PA12H-08X06R | Nylon hose PA12 X-HIPHL 8x6 mm, red | 6 | 21 | |
| ZC-PA12H-08X5,5 | Nylon hose PA12 X-HIPHL 8x5.5 mm | 6 | 27 | |
| ZC-PA12H-08X5,5BK | Nylon hose PA12 X-HIPHL 8x5.5 mm, black | 6 | 27 | |
| ZC-PA12H-08X5,5BL | Nylon hose PA12 X-HIPHL 8x5.5 mm, blue | 6 | 27 | |
| ZC-PA12H-10X06 | Nylon hose PA12 X-HIPHL 10x6 mm | 6 | 37 | |
| ZC-PA12H-10X06BK | Nylon hose PA12 X-HIPHL 10x6 mm, black | 6 | 37 | |
| ZC-PA12H-10X06BL | Nylon hose PA12 X-HIPHL 10x6 mm, blue | 6 | 37 | |
| ZC-PA12H-10X08 | PA12 X-HIPHL nylon hose 10x8 mm | 8 | 16 | |
| ZC-PA12H-10X08BK | PA12 X-HIPHL nylon hose 10x8 mm, black | 8 | 16 | |
| ZC-PA12H-10X08BL | Nylon hose PA12 X-HIPHL 10x8 mm, blue | 8 | 16 | |
| ZC-PA12H-10X7,5 | Nylon hose PA12 X-HIPHL 10x7.5 mm | 8 | 21 | |
| ZC-PA12H-12X08 | PA12 X-HIPHL nylon hose 12x8 mm | 8 | 29 | |
| ZC-PA12H-12X09 | Nylon hose PA12 X-HIPHL 12x9 mm | 8 | 21 | |
| ZC-PA12H-12X09BL | Nylon hose PA12 X-HIPHL 12x9 mm, blue | 8 | 21 | |
| ZC-PA12H-14X10 | Nylon hose PA12 X-HIPHL 14x10 mm | 10 | 24 | |
| ZC-PA12H-15X12 | PA12 X-HIPHL nylon hose 15x12 mm | 12 | 16 | |
| ZC-PA12H-16X12 | PA12 X-HIPHL nylon hose 16x12 mm | 12 | 21 | |
| ZC-PA12H-18X14 | Nylon hose PA12 X-HIPHL 18x14 mm | 14 | 18 | |
| ZC-PA12H-20X16 | Nylon hose PA12 X-HIPHL 20x16 mm | 16 | 16 |
Flexible and lightweight polyamide hose, intended for pneumatic, oil, fuel, and hydraulic installations, resistant to chemicals and lubricants. It has a calibrated outer diameter, allowing for the use of plug couplings, which significantly shortens and facilitates its installation. Compliant with DIN 73378 standard. Available in colors: yellow, orange, red, blue, green, natural, and black. Hose material: polyamide PA 12 (nylon). Working pressure: from 16 bar to 49 bar, depending on the diameter and wall thickness of the hose. Operating temperature: from -55°C to +100°C (for water-based media +70°C).
Additional information
| Material | PA – polyamide |
|---|---|
| Maximum operating temperature [°C] | 100 |
| Minimum operating temperature [°C] | -55 |
| Vacuum resistance | no |
| Standard length [m] | 10, 100, 15, 50, 6 |
Additional information
| Material | PA – polyamide |
|---|---|
| Maximum operating temperature [°C] | 100 |
| Minimum operating temperature [°C] | -55 |
| Vacuum resistance | no |
| Standard length [m] | 10, 100, 15, 50, 6 |
