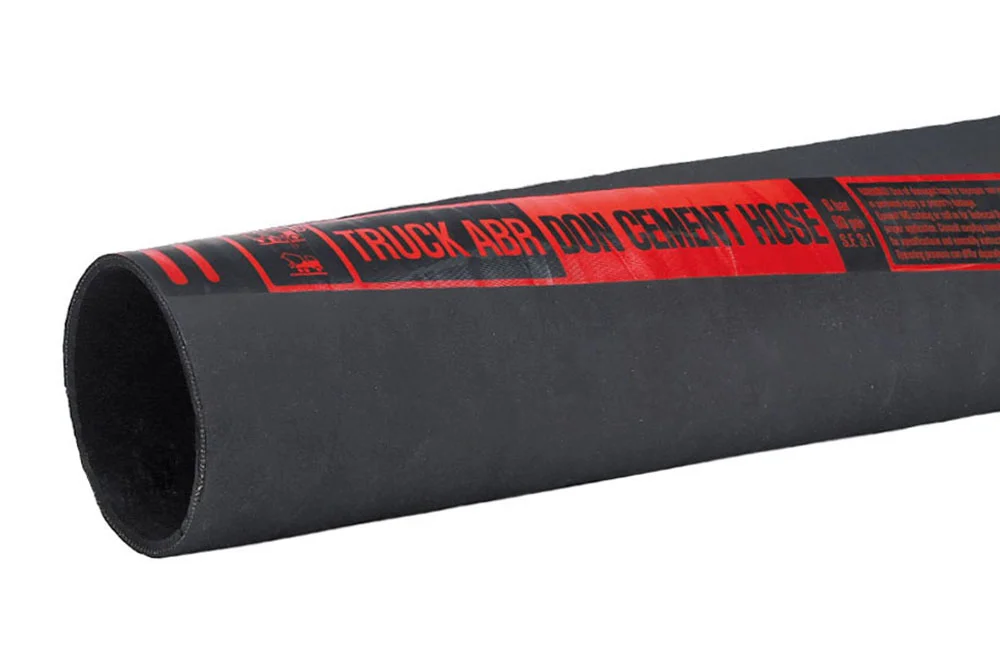

DON® discharge hose for cement, dry bulk substances
Soft suction hose, for larger diameters and small thicknesses almost flat at rest, intended for pneumatic transport of dry bulk materials. Inner layer made of black, smooth, antistatic rubber (R < 106 Ω), abrasion-resistant (70±5 mm3 according to ISO 4649, formerly DIN 53516). Reinforcement with synthetic cord. Outer layer made of antistatic (R < 106 Ω) abrasion-resistant rubber, weather-resistant and ozone-resistant. The hose is primarily used for the transfer of cement, sand, gravel, silica, and other dry abrasive materials from rail tankers, road tankers, and silos. Standard length: 60 m (or 120 m – contact Tubes International). Inner layer: black NR/SBR rubber. Reinforcement: synthetic cord. Outer layer: black NR/SBR rubber. Working pressure: from 5 bar to 6 bar – depending on the hose diameter. Operating temperature: from -40°C to +70°C. Indices marked at the end with the letters XE have an inner layer made of high-abrasion-resistant antistatic rubber (abrasion 50 mm3 according to ISO4649) and with a copper wire.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| IV-DON-050XE | Hose DON 50x65 mm, abrasiveness 50 mm3, copper wire | 50 | 6 | |
| IV-DON-075XE | Hose DON 75x93 mm, abrasion 50 mm3, copper wire | 75 | 6 | |
| IV-DON-076 | Hose DON 76x94 mm | 75 | 6 | |
| IV-DON-090 | Hose DON 90x106 mm | 90 | 6 | |
| IV-DON-102X112 | Hose DON 102x112 mm | 100 | 5 | |
| IV-DON-102X114 | Hose DON 102x114 mm | 100 | 6 | |
| IV-DON-102X116 | Hose DON 102x116 mm | 100 | 6 | |
| IV-DON-102X118 | Hose DON 102x118 mm | 100 | 5 | |
| IV-DON-102X120 | Hose DON 102x120 mm | 100 | 5 | |
| IV-DON-102X120,5 | Hose DON 102x120.5 mm | 100 | 5 | |
| IV-DON-102X122 | Hose DON 102x122 mm | 100 | 5 | |
| IV-DON-127 | Hose DON 127x139 mm | 125 | 5 |
Soft suction hose, for larger diameters and small thicknesses almost flat at rest, intended for pneumatic transport of dry bulk materials. Inner layer made of black, smooth, antistatic rubber (R < 106 Ω), abrasion-resistant (70±5 mm3 according to ISO 4649, formerly DIN 53516). Reinforcement with synthetic cord. Outer layer made of antistatic (R < 106 Ω) abrasion-resistant rubber, weather-resistant and ozone-resistant. The hose is primarily used for the transfer of cement, sand, gravel, silica, and other dry abrasive materials from rail tankers, road tankers, and silos. Standard length: 60 m (or 120 m – contact Tubes International). Inner layer: black NR/SBR rubber. Reinforcement: synthetic cord. Outer layer: black NR/SBR rubber. Working pressure: from 5 bar to 6 bar – depending on the hose diameter. Operating temperature: from -40°C to +70°C. Indices marked at the end with the letters XE have an inner layer made of high-abrasion-resistant antistatic rubber (abrasion 50 mm3 according to ISO4649) and with a copper wire.
Additional information
| Material | SBR/NR – a mixture of SBR and NR rubber |
|---|---|
| Maximum operating temperature [°C] | 70 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | no |
| Standard length [m] | 60 |
