Is the Hose for powders, dust PARAFLEXÂ® suitable for positive pressure applications or only for vacuum (up to 0.6 bar)?

Hose for powders, dust PARAFLEXÂ® Format is intended only for vacuum (extraction) applications . it is not designed for positive pressure. The product description explicitly states resistance to vacuum up to 0.6 bar and specifies that it is "Not intended for use with positive pressure," so do not use it under positive-pressure conditions.

Can Hose for powders, dust PARAFLEXÂ® be used in outdoor environments exposed to UV and harsh weather conditions?

Hose for powders, dust PARAFLEXÂ® is suitable for outdoor use: the outer corrugated SBR rubber layer is weather- and abrasion-resistant and the hose operates from -40Â°C to +70Â°C, making it capable of withstanding UV and harsh weather conditions typically encountered outdoors. Note that it is designed only for vacuum (extraction) up to 0.6 bar, includes a copper anti-static wire, and is not intended for positive-pressure applications.

Can Hose for powders, dust PARAFLEXÂ® be used with electrically conductive materials without additional grounding?

Hose for powders, dust PARAFLEXÂ® includes a copper anti-static wire for discharging electric charges, which reduces the risk of electrostatic buildup during conveyance of powders and dusts. However, the presence of an anti-static wire does not automatically eliminate the need for additional grounding in all installations. If the transported material or the process can generate significant electrostatic charges, applicable safety standards or site electrical codes typically require that the anti-static wire be firmly connected to a true earth ground at regular intervals and at both ends of the hose assembly. For safe operation with electrically conductive or potentially charge-generating materials, you should: - Verify that the hoseâs anti-static wire is continuous and electrically connected to any metal fittings. - Ensure the anti-static wire is properly bonded to plant earth ground on installation. - Follow local regulations and industry standards for electrostatic discharge (e.g., ATEX, NFPA) that apply to your facility and materials. - Inspect connections and continuity regularly as part of maintenance. In summary: Hose for powders, dust PARAFLEXÂ® is equipped with a copper anti-static wire to discharge charges, but you must provide proper grounding (bonding to earth) according to standards and site requirements; do not rely solely on the hose without verified grounding.

Hose for powders, dust PARAFLEX®

All products, Bulk material transfer hoses/

Additional information

Material	NR – natural rubber
Maximum operating temperature [°C]	70
Minimum operating temperature [°C]	-40
Vacuum resistance	yes
Standard length [m]	10, 40, 60

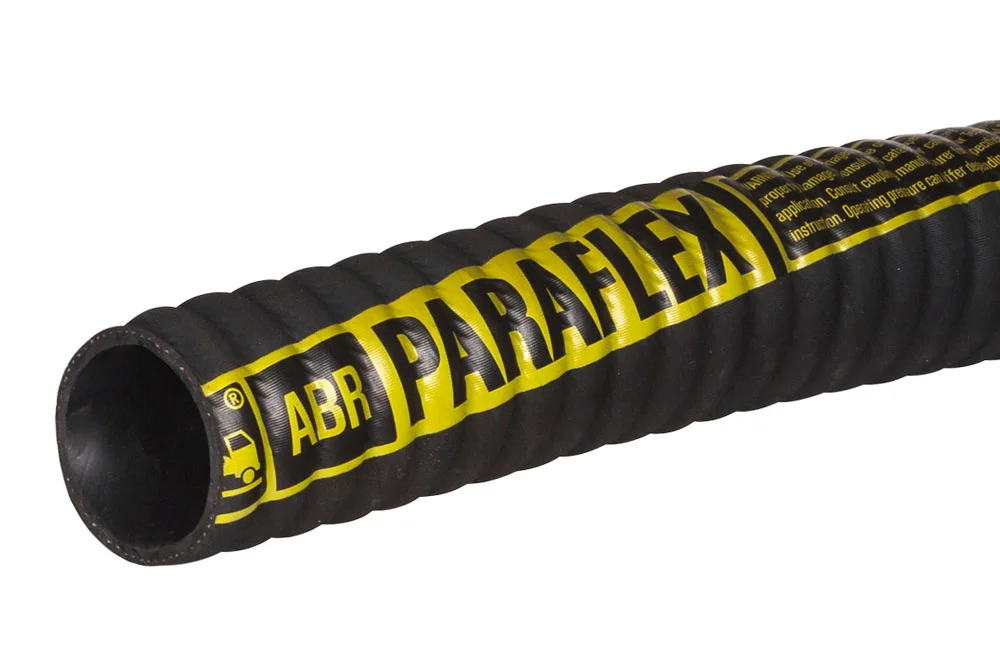

Very lightweight and extremely flexible rubber hose for dust extraction, powders, and other lightly abrasive materials. The inner layer is smooth, made of wear-resistant rubber with a thickness of 2.4 mm. The outer layer is corrugated, resistant to abrasion and weather conditions. Thanks to the steel spiral reinforcement, it is resistant to kinking and vacuum up to 0.6 bar. Not intended for use with positive pressure, designed only for vacuum (extraction). Due to its lightness and exceptional flexibility for a rubber hose, it performs excellently in vacuum cleaning systems in the industry, such as in quarries or foundries. It features a copper anti-static wire for discharging electric charges. Inner layer: black natural rubber. Reinforcement: synthetic cord, steel spiral. Outer layer: black SBR rubber. Vacuum: up to 0.6 bar. Operating temperature: from -40°C to +70°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
IV-PARAFLEX-051	PARAFLEX hose 51x59 mm	50	-	In stock	Enquiry
IV-PARAFLEX-060	PARAFLEX hose 60x68 mm	60	-	In stock	Enquiry
IV-PARAFLEX-080	PARAFLEX hose 80x88 mm	80	-	In stock	Enquiry
IV-PARAFLEX-102	PARAFLEX hose 102x113 mm	100	-	In stock	Enquiry
IV-PARAFLEX-110	PARAFLEX hose 110x121 mm	110	-	In stock	Enquiry
IV-PARAFLEX-120	PARAFLEX hose 120x131 mm	120	-	In stock	Enquiry
IV-PARAFLEX-127	PARAFLEX hose 127x138 mm	125	-	In stock	Enquiry
IV-PARAFLEX-152	PARAFLEX hose 152x163 mm	150	-	In stock	Enquiry
IV-PARAFLEX-203	PARAFLEX hose 203x215 mm	200	-	In stock	Enquiry
IV-PARAFLEX-250	PARAFLEX hose 250x262 mm	250	-	In stock	Enquiry
IV-PARAFLEX-305	PARAFLEX hose 305x318 mm	300	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Very lightweight and extremely flexible rubber hose for dust extraction, powders, and other lightly abrasive materials. The inner layer is smooth, made of wear-resistant rubber with a thickness of 2.4 mm. The outer layer is corrugated, resistant to abrasion and weather conditions. Thanks to the steel spiral reinforcement, it is resistant to kinking and vacuum up to 0.6 bar. Not intended for use with positive pressure, designed only for vacuum (extraction). Due to its lightness and exceptional flexibility for a rubber hose, it performs excellently in vacuum cleaning systems in the industry, such as in quarries or foundries. It features a copper anti-static wire for discharging electric charges. Inner layer: black natural rubber. Reinforcement: synthetic cord, steel spiral. Outer layer: black SBR rubber. Vacuum: up to 0.6 bar. Operating temperature: from -40°C to +70°C.

Additional information

Material	NR – natural rubber
Maximum operating temperature [°C]	70
Minimum operating temperature [°C]	-40
Vacuum resistance	yes
Standard length [m]	10, 40, 60
