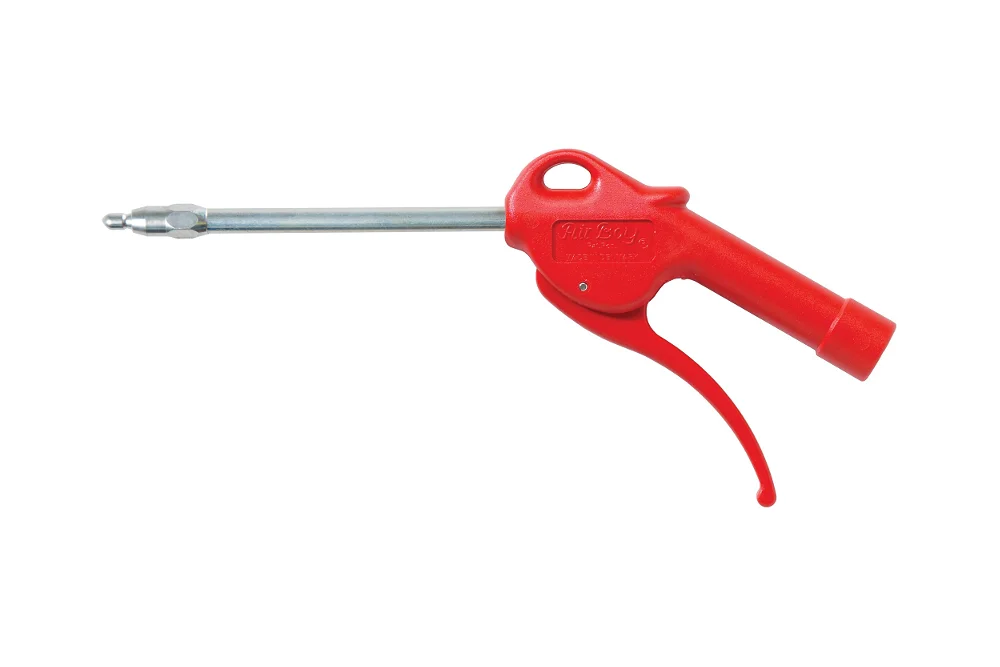

SILENT AIR BOY® air gun
Silent universal gun designed for removing all types of contaminants from surfaces: liquids, fine chips, shavings, etc. Lightweight construction and ergonomic shape ensure easy and comfortable use. The gun is equipped with a special straight nozzle 130 mm long, guaranteeing safety and low noise levels. The lever mechanism allows for precise dosing of the flowing medium. Available model with flow regulation. Compliant with OSHA 1910.95 (b), STD 1-13.1, and directive 2003/10/EC. Body material: acetal. Nozzle material: galvanized steel. Nozzle diameter: 8 mm. Sealing: NBR. Working pressure: 16 bar. Operating temperature: from -10°C to +60°C. Flow rate: 260 l/m (at 8 bar pressure). Sound level: 74 dB (at 8 bar pressure). Blowing force: 1.72 N.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| JW-140125-000 | SILENT AIR BOY air gun, nozzle O8 mm bent L=120 mm, G 1/4" BSP | - | 16 | |
| JW-140126-000 | SILENT AIR BOY air gun, nozzle O8 mm straight L=130 mm, 1/4" BSP thread | - | 16 | |
| JW-140135-000 | SILENT AIR BOY air gun, flow regulation, O8 mm bent nozzle L=120 mm, 1/4" BSP thread | - | 16 |
Silent universal gun designed for removing all types of contaminants from surfaces: liquids, fine chips, shavings, etc. Lightweight construction and ergonomic shape ensure easy and comfortable use. The gun is equipped with a special straight nozzle 130 mm long, guaranteeing safety and low noise levels. The lever mechanism allows for precise dosing of the flowing medium. Available model with flow regulation. Compliant with OSHA 1910.95 (b), STD 1-13.1, and directive 2003/10/EC. Body material: acetal. Nozzle material: galvanized steel. Nozzle diameter: 8 mm. Sealing: NBR. Working pressure: 16 bar. Operating temperature: from -10°C to +60°C. Flow rate: 260 l/m (at 8 bar pressure). Sound level: 74 dB (at 8 bar pressure). Blowing force: 1.72 N.
