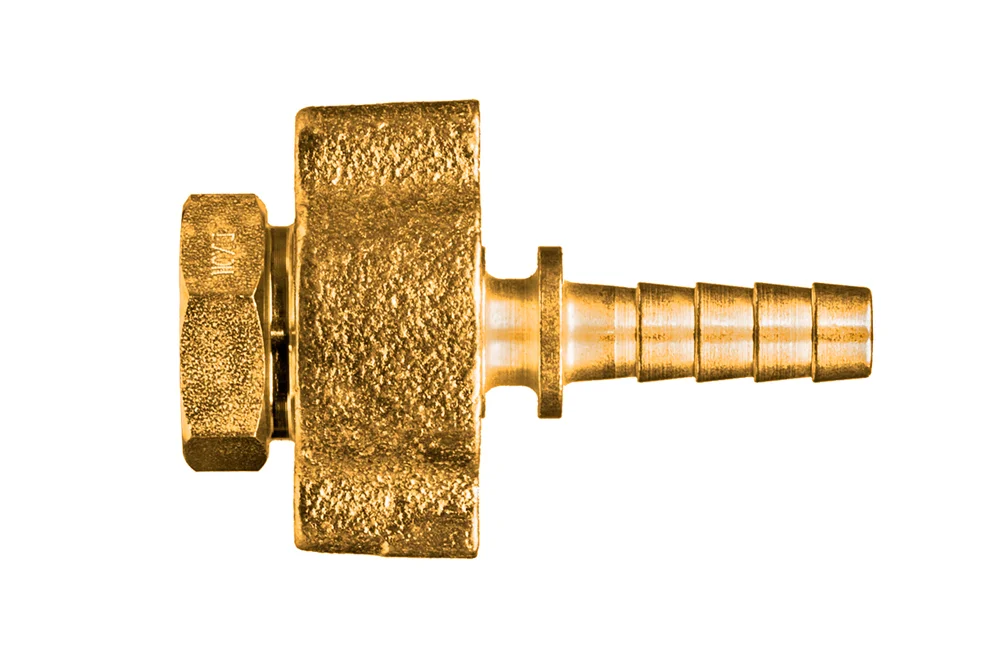

Steam hose end with GW NPT, brass GF BOSS
NPT internal threaded ends for rubber hoses for steam, with a ribbed tail for the hose, with a lock – for installation in the hose using BOSS SBC type steam clamps. The complete end consists of three parts – a spherical end GB with a spout (“tail”) for the hose, a wing nut B with a special internal thread (NPS), and a special adapter GFB with an external thread (NPS) matching the nut and an internal thread of the same size as the end. The GFB adapter has a conical polymer or copper insert that works with the spherical end. This creates a tight, steam-resistant, and high-temperature connection that is also easy to unscrew and screw without the use of special tools, using the wing nut. Material: brass. Working pressure: 18 bar (+210°C) – saturated steam. Operating temperature: up to +230°C.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| DX-GF-12-12-B-NPT | GF end with GW NPT 3/4", hose 3/4", brass | 20 | 18 | |
| DX-GF-16-16-B-NPT | GF end with GW NPT 1", hose 1", brass | 25 | 18 |
NPT internal threaded ends for rubber hoses for steam, with a ribbed tail for the hose, with a lock – for installation in the hose using BOSS SBC type steam clamps. The complete end consists of three parts – a spherical end GB with a spout (“tail”) for the hose, a wing nut B with a special internal thread (NPS), and a special adapter GFB with an external thread (NPS) matching the nut and an internal thread of the same size as the end. The GFB adapter has a conical polymer or copper insert that works with the spherical end. This creates a tight, steam-resistant, and high-temperature connection that is also easy to unscrew and screw without the use of special tools, using the wing nut. Material: brass. Working pressure: 18 bar (+210°C) – saturated steam. Operating temperature: up to +230°C.
Additional information
| Material | B – brass (bronze) |
|---|
Additional information
| Material | B – brass (bronze) |
|---|
