Is the Quick coupling socket 90Â° for injection molds with hose end without valve, DYROS series 6 suitable for use with cooling liquids and compressed air at up to 15 bar?

Yes. The Quick coupling socket 90Â° for injection molds with hose end without valve, DYROS series 6 is suitable for use with cooling liquids and compressed air up to 15 bar. The product is explicitly designed for cooling liquids for molds in plastic processing and for compressed air installations. Construction materials (brass body, treated stainless steel retaining rings/springs/balls) and Viton seals are appropriate for typical cooling fluids and compressed air at the stated working pressure of 15 bar. Ensure compatibility with your specific fluid chemistry and operating temperature range of Viton before deployment.

Can the Quick coupling socket 90Â° for injection molds with hose end without valve, DYROS series 6 be autoclaved or exposed to high-temperature sterilization?

The Quick coupling socket 90Â° for injection molds with hose end without valve, DYROS series 6 is built from brass components with stainless steel retaining rings, springs and balls, and Viton seals, rated to 15 bar. Brass and stainless steel tolerate autoclave temperatures, but Viton has maximum continuous-use temperatures around 200â250Â°C and can withstand steam sterilization (121Â°Câ134Â°C) for typical cycles. However repeated autoclaving or higher-temperature sterilization may degrade Viton and affect sealing performance. If you require validated repeated autoclave resistance, test seals after cycles or consult the manufacturer for sterilization compatibility and any recommended limits.

Does the Quick coupling socket 90Â° for injection molds with hose end without valve, DYROS series 6 resist corrosion in salty or chlorinated environments?

Quick coupling socket 90Â° for injection molds with hose end without valve, DYROS series 6 offers reasonable resistance to corrosion but is not fully immune in salty or highly chlorinated environments. Why: - Main body and all components are brass. Brass has good general corrosion resistance but is vulnerable to dezincification and pitting in aggressive chloride-rich (saline) or highly chlorinated conditions. - Retaining rings, springs, and balls are made of treated stainless steel. Treated stainless steels improve corrosion resistance; however, performance depends on the specific alloy and treatment. In chloride environments some stainless grades (especially austenitic types) can suffer pitting or stress corrosion cracking. - Viton sealing is highly resistant to many chemicals, including chlorine and some saline exposure, and will perform well as the seal material. - Working pressure (15 bar) is unrelated to corrosion resistance. Practical guidance: - For occasional or short-term exposure to mildly salty or lightly chlorinated environments, the coupling will likely perform acceptably. - For continuous, heavy, or long-term exposure to seawater, splash zones, or strong chlorinated solutions (e.g., certain pool chemicals), brass and common stainless steels can corrode; a more corrosion-resistant alternative (e.g., bronze with dezincification-resistant alloy, high-grade duplex or 316L/2205 stainless, or more protective coatings) would be recommended. - Regular inspection, rinsing with fresh water after salt/chlorine exposure, and preventive maintenance will extend service life. Conclusion: Quick coupling socket 90Â° for injection molds with hose end without valve, DYROS series 6 can resist some saline/chlorinated conditions but is not guaranteed corrosion-proof in aggressive or continuous exposure.

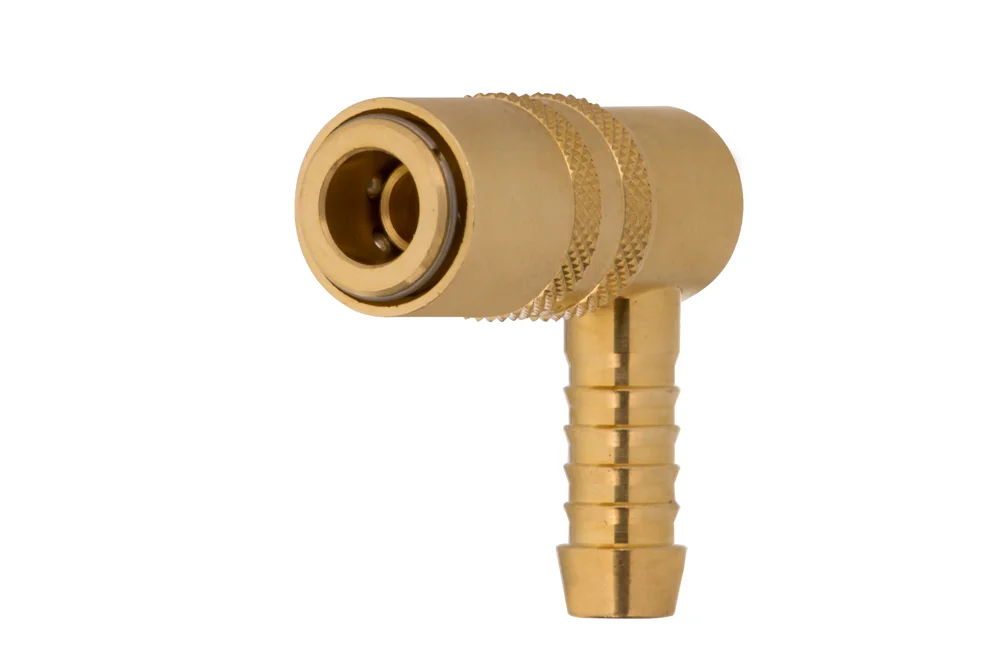

Quick coupling socket 90° for injection molds with hose end without valve, DYROS series 6

Additional information

Material	B – brass (bronze)

90° quick coupling socket DYROS series 6 with hose end without valve. Designed for cooling liquids for molds in plastic processing, compressed air installations, gas cylinders, and other technical fields. Material: all components are made of brass, while the retaining rings, springs, and balls are made of treated stainless steel. Sealing: viton. Working pressure: 15 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
DY-VK616-90-OV	90° socket DN 6 with 3/8" hose end, without valve	10	15	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

90° quick coupling socket DYROS series 6 with hose end without valve. Designed for cooling liquids for molds in plastic processing, compressed air installations, gas cylinders, and other technical fields. Material: all components are made of brass, while the retaining rings, springs, and balls are made of treated stainless steel. Sealing: viton. Working pressure: 15 bar.
