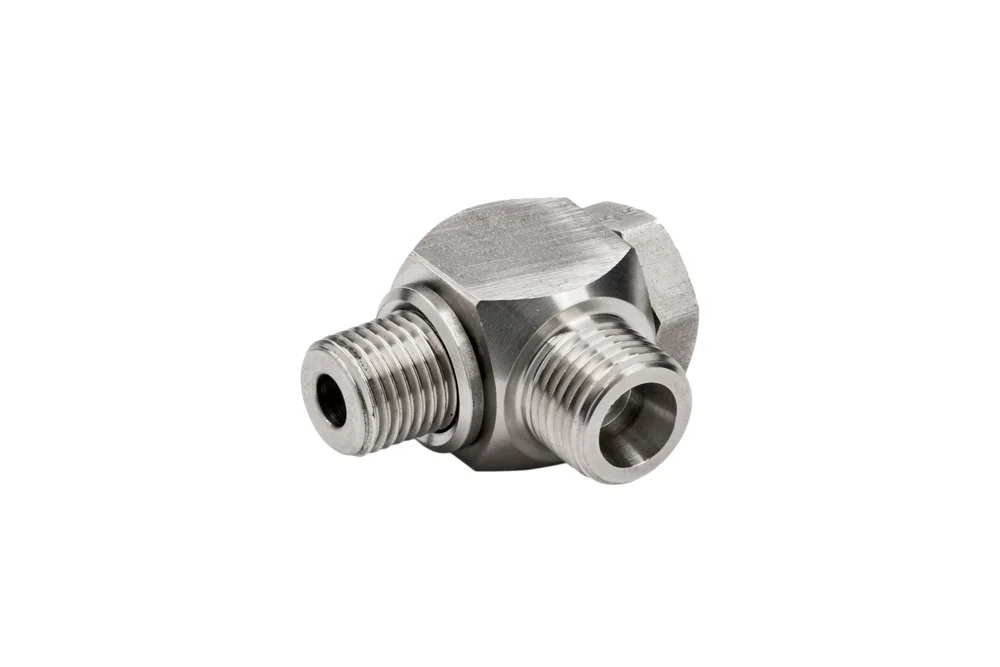

BANJO WH-ME adjustable angle screw connection, stainless steel

, /
BANJO WH-ME adjustable angle screw connection, stainless steel

Additional information

Material

SS – stainless steel

DIN 2353 angular adjustable screw connection BANJO, type WH-ME: 24° DIN 2353 socket with external metric thread and external metric thread (sealing DIN 3852 type E – elastomer seal with rectangular cross-section). Safety factor 4:1. Available as: L (light series), S (heavy series). Material: AISI 316 steel.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
HD-WH-06L-ME-10-SSDIN 2353 fitting WH 6L M10x1, AISI 316-500In stock0 zł
Enquiry
HD-WH-06S-ME-12-SSDIN 2353 fitting WH 6S M12x1.5, AISI 316-500In stock0 zł
Enquiry
HD-WH-08L-ME-12-SSDIN 2353 fitting WH 8L M12x1.5, AISI 316-400In stock0 zł
Enquiry
HD-WH-08S-ME-14-SSDIN 2353 fitting WH 8S M14x1.5, AISI 316-450In stock0 zł
Enquiry
HD-WH-10L-ME-14-SSDIN 2353 fitting WH 10L M14x1.5, AISI 316-350In stock0 zł
Enquiry
HD-WH-10S-ME-16-SSDIN 2353 fitting WH 10S M16x1.5, AISI 316-400In stock0 zł
Enquiry
HD-WH-12L-ME-16-SSDIN 2353 fitting WH 12L M16x1.5, AISI 316-315In stock0 zł
Enquiry
HD-WH-12S-ME-18-SSDIN 2353 fitting WH 12S M18x1.5, AISI 316-400In stock0 zł
Enquiry
HD-WH-15L-ME-18-SSDIN 2353 fitting WH 15L M18x1.5, AISI 316-315In stock0 zł
Enquiry
HD-WH-16S-ME-22-SSDIN 2353 fitting WH 16S M22x1.5, AISI 316-400In stock0 zł
Enquiry
HD-WH-18L-ME-22-SSDIN 2353 fitting WH 18L M22x1.5, AISI 316-315In stock0 zł
Enquiry
HD-WH-20S-ME-27-SSDIN 2353 fitting WH 20S M27x2, AISI 316-400In stock0 zł
Enquiry
HD-WH-22L-ME-26-SSDIN 2353 fitting WH 22L M26x1.5, AISI 316-200In stock0 zł
Enquiry
HD-WH-25S-ME-33-SSDIN 2353 fitting WH 25S M33x2, AISI 316-250In stock0 zł
Enquiry
HD-WH-28L-ME-33-SSDIN 2353 fitting WH 18L M33x2, AISI 316-200In stock0 zł
Enquiry
HD-WH-30S-ME-42-SSDIN 2353 fitting WH 30S M42x2, AISI 316-250In stock0 zł
Enquiry
HD-WH-35L-ME-42-SSDIN 2353 fitting WH 35L M42x2, AISI 316-200In stock0 zł
Enquiry
HD-WH-38S-ME-48-SSDIN 2353 fitting WH 38S M48x2, AISI 316-250In stock0 zł
Enquiry
HD-WH-42L-ME-48-SSDIN 2353 fitting WH 42L M48x2, AISI 316-200In stock0 zł
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY
BANJO WH-ME adjustable angle screw connection, stainless steel

DIN 2353 angular adjustable screw connection BANJO, type WH-ME: 24° DIN 2353 socket with external metric thread and external metric thread (sealing DIN 3852 type E – elastomer seal with rectangular cross-section). Safety factor 4:1. Available as: L (light series), S (heavy series). Material: AISI 316 steel.
