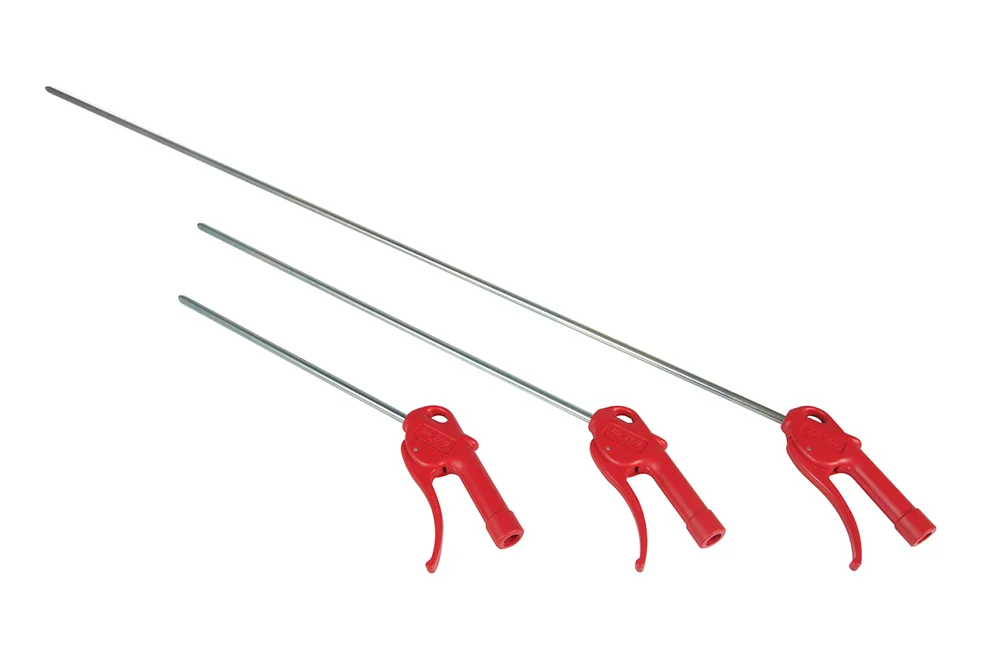

AIR BOY® Classic air gun
Universal gun designed for removing all types of contaminants from surfaces: liquids, fine chips, shavings, etc. Lightweight construction and ergonomic shape ensure easy and comfortable use. For aggressive fluids and media, a gun with a nozzle made of AISI 316 stainless steel is recommended. The lever mechanism allows for precise dosing of the flowing medium. Available model with flow regulation. Compliant with OSHA standard 1910.95 (b) and directive 2003/10/EC. Body material: acetal. Nozzle material: galvanized steel or AISI 316 steel. Nozzle diameter: 8 mm. Sealing: NBR. Working pressure: 16 bar. Operating temperature: from -10°C to +80°C. Flow rate: 380 l/min (at 8 bar pressure). Sound intensity: 85 dB (at 8 bar pressure). Blowing force: 3.92 N.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| JW-140100-000 | AIR BOY air gun, nozzle O8 mm straight L=100 mm, 1/4" BSP thread | - | 16 | |
| JW-140101-000 | AIR BOY air gun, nozzle O8 mm bent L=100 mm, 1/4" BSP thread | - | 16 | |
| JW-140103-000 | AIR BOY air gun, flow regulation, O8 mm bent nozzle L=100 mm, 1/4" BSP thread | - | 16 | |
| JW-140112-000 | AIR BOY air gun, nozzle O8 mm straight L=300 mm, 1/4" BSP thread | - | 16 | |
| JW-140113-000 | AIR BOY air gun, nozzle O8 mm straight L=500 mm, 1/4" BSP thread | - | 16 | |
| JW-140114-000 | AIR BOY air gun, nozzle O8 mm straight L=1000 mm, 1/4" BSP thread | - | 16 | |
| JW-140120-000 | AIR BOY air gun, O8 mm nozzle bent AISI 316 steel L=100 mm, 1/4" BSP thread | - | 16 |
Universal gun designed for removing all types of contaminants from surfaces: liquids, fine chips, shavings, etc. Lightweight construction and ergonomic shape ensure easy and comfortable use. For aggressive fluids and media, a gun with a nozzle made of AISI 316 stainless steel is recommended. The lever mechanism allows for precise dosing of the flowing medium. Available model with flow regulation. Compliant with OSHA standard 1910.95 (b) and directive 2003/10/EC. Body material: acetal. Nozzle material: galvanized steel or AISI 316 steel. Nozzle diameter: 8 mm. Sealing: NBR. Working pressure: 16 bar. Operating temperature: from -10°C to +80°C. Flow rate: 380 l/min (at 8 bar pressure). Sound intensity: 85 dB (at 8 bar pressure). Blowing force: 3.92 N.
