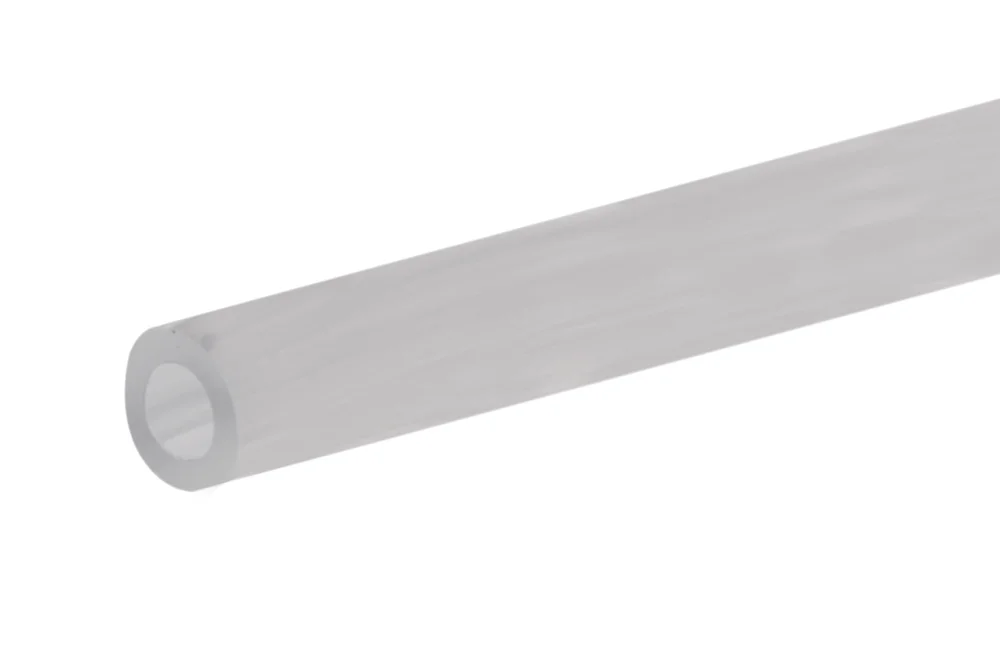

Chemical resistant hose, also for food substances TYGON® 2375
Colorless, transparent, flexible hose completely free of plasticizers for chemical and food applications – requiring high chemical resistance due to the nature of the substances (e.g., wine – alcohol, acids – orange juice) or used cleaning and disinfecting agents. Resistant to acids, bases, salts, alcohols, and ketones, with very low levels of absorption and adsorption. This minimizes the risk of changing the properties, taste, and smell of the fluid even with repeated use of the hose. The glassy smooth, pore-free inner surface prevents the deposition and adherence of contaminants inside the hose and facilitates cleaning. Resistant to chemical cleaning and disinfecting agents. Not recommended for hydrocarbons. Meets hygiene and food contact requirements: European 1935/2004/EC and 10/2011 EU (for conditions and substances according to certification), American FDA 21 CFR 177.1520, NSF-51. Possible sterilization with ethylene oxide or radiation (up to 2.5 Mrad). Compliant with REACH – does not contain hazardous and prohibited substances. Proper incineration of used hoses does not release hazardous substances (e.g., hydrochloric acid). The hose is used for both food substances (e.g., wine dispensing) and chemical applications: detergent installations, ink dispensing, acid filling for batteries, chemical analyzers. Full hose roll length 15 m (for internal diameter 25.4 mm – 7.5 m). The specified working pressure is defined relative to the burst pressure with a safety factor of 1:5. Material: polyolefin. Operating temperature: from -75°C to +54°C. Brittleness temperature: -75°C. Hardness: 75° Shore (A). Density: 0.90 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| VE-AJK00002 | TYGON 2375 hose 1.6x3.2 mm | 2 | 2.76 | |
| VE-AJK00003 | TYGON hose 2375 1.6x4.8 mm | 2 | 4.48 | |
| VE-AJK00004 | TYGON hose 2375 2.4x4 mm | 2 | 1.72 | |
| VE-AJK00007 | Hose TYGON 2375 3.2x6.4 mm | 3 | 2.76 | |
| VE-AJK00009 | TYGON hose 2375 4x5.6 mm | 4 | 1.38 | |
| VE-AJK00012 | TYGON hose 2375 4.8x8 mm | 5 | 2.07 | |
| VE-AJK00017 | Hose TYGON 2375 6.4x9.6 mm | 6 | 1.38 | |
| VE-AJK00022 | Hose TYGON 2375 8x11.2 mm | 8 | 1.38 | |
| VE-AJK00027 | Hose TYGON 2375 9.5x12.7 mm | 10 | 1.17 | |
| VE-AJK00029 | TYGON hose 2375 9.5x15.9 mm | 10 | 1.72 | |
| VE-AJK00038 | TYGON hose 2375 12.7x19.1 mm | 12 | 1.72 | |
| VE-AJK00046 | Hose TYGON 2375 15.9x22.3 mm | 16 | 1.38 | |
| VE-AJK00053 | Hose TYGON 2375 19x25.4 mm | 20 | 1.17 | |
| VE-AJK42064 | Hose TYGON 2375 25.4x35 mm | 25 | 1.31 |
Colorless, transparent, flexible hose completely free of plasticizers for chemical and food applications – requiring high chemical resistance due to the nature of the substances (e.g., wine – alcohol, acids – orange juice) or used cleaning and disinfecting agents. Resistant to acids, bases, salts, alcohols, and ketones, with very low levels of absorption and adsorption. This minimizes the risk of changing the properties, taste, and smell of the fluid even with repeated use of the hose. The glassy smooth, pore-free inner surface prevents the deposition and adherence of contaminants inside the hose and facilitates cleaning. Resistant to chemical cleaning and disinfecting agents. Not recommended for hydrocarbons. Meets hygiene and food contact requirements: European 1935/2004/EC and 10/2011 EU (for conditions and substances according to certification), American FDA 21 CFR 177.1520, NSF-51. Possible sterilization with ethylene oxide or radiation (up to 2.5 Mrad). Compliant with REACH – does not contain hazardous and prohibited substances. Proper incineration of used hoses does not release hazardous substances (e.g., hydrochloric acid). The hose is used for both food substances (e.g., wine dispensing) and chemical applications: detergent installations, ink dispensing, acid filling for batteries, chemical analyzers. Full hose roll length 15 m (for internal diameter 25.4 mm – 7.5 m). The specified working pressure is defined relative to the burst pressure with a safety factor of 1:5. Material: polyolefin. Operating temperature: from -75°C to +54°C. Brittleness temperature: -75°C. Hardness: 75° Shore (A). Density: 0.90 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.
Additional information
| Maximum operating temperature [°C] | 54 |
|---|---|
| Minimum operating temperature [°C] | -75 |
| Vacuum resistance | yes |
| Standard length [m] | 15 |
