Can the Socket DN 13 quick connector with female thread, TST 190 series, brass be used with steam at 200Â°C and 25 bar without degrading the Viton seal?

Yes . Socket DN 13 quick connector with female thread, TST 190 series, brass can be used with steam at 200Â°C and 25 bar without degrading the Viton seal, provided the conditions match the stated limits. The product specification lists: working pressure 25 bar and operating temperature from -20Â°C to +200Â°C (Viton), and explicitly notes suitability for steam. Viton (FKM) typically resists hot steam and maintains properties up to ~200Â°C, so at 200Â°C and 25 bar the seal operates at the upper limit of its rated range. Caveats: - Continuous exposure at the upper temperature/pressure limit can accelerate aging; consider inspection/replacement intervals. - Actual service life depends on steam purity, presence of condensate, thermal cycling, and mechanical stress. - Verify flange/thread compatibility and installation torque to avoid leaks. If you require long-term reliability beyond occasional use at this extreme, consider specifying a higher-temperature elastomer or consult the manufacturer for validated lifespan data.

Is the Socket DN 13 quick connector with female thread, TST 190 series, brass suitable for use with steam up to 200Â°C and 25 bar?

Yes. The Socket DN 13 quick connector with female thread, TST 190 series, brass is suitable for steam up to 200Â°C and 25 bar. The product description explicitly states it can be used for steam, has a working pressure of 25 bar and an operating temperature range up to +200Â°C (with Viton), and is constructed of brass with stainless steel internal components. Ensure compatibility of connected fittings and seals with steam and verify installation complies with applicable safety standards.

Can Socket DN 13 quick connector with female thread, TST 190 series, brass handle hot oil at 200Â°C and 25 bar?

Yes. Socket DN 13 quick connector with female thread, TST 190 series, brass can handle hot oil at 200Â°C and 25 bar if fitted with Viton seals. The product specification lists working pressure 25 bar and operating temperature range â20Â°C to +200Â°C (Viton). Materials (brass body, stainless steel spring/ring/balls) are suitable for high-temperature oil service, but ensure the specific connector you receive is equipped with Viton Oârings/seals and that the hot oilâs chemical compatibility with Viton is confirmed. For continuous service at 200Â°C, verify installation, seal condition, and manufacturerâs guidance; if oil contains additives or aggressive components, request compatibility data or consider higherâtemperature sealing alternatives.

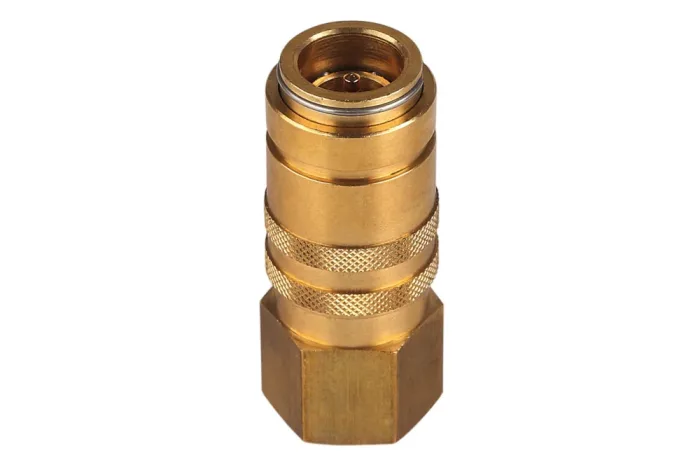

Socket DN 13 quick coupling with a thread internal, series TST 190, brass

Additional information

Material	B – brass (bronze)

Socket DN13 quick coupling with a thread internal BSP and metric, with valve or without valve. Widely used in industry for cooling injection and casting molds of plastic, aluminum, brass and zinc alloy parts. It can be used for water in cleaning machines, for hot oil, water vapor. Bore diameter: 13 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (Viton). Material: brass (body socket, connection, sleeve valve), steel stainless (spring, ring, balls).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-CSK190-DG21	Socket DN 13 with 1/2" BSP female, with a valve	-	25	In stock	Enquiry
FW-CSK190-DG26	Socket DN 13 with 3/4" BSP female, with a valve	-	25	In stock	Enquiry
FW-CSK190-DGM24	Socket DN 13 with M24x1.5 female, with a valve	-	25	In stock	Enquiry
FW-SK190-DG21	Socket DN 13 with 1/2" BSP female, without valve	-	25	In stock	Enquiry
FW-SK190-DG26	Socket DN 13 with 3/4" BSP female, without valve	-	25	In stock	Enquiry
FW-SK190-DGM24	Socket DN 13 with M24x1.5 female, without valve	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Socket DN13 quick coupling with a thread internal BSP and metric, with valve or without valve. Widely used in industry for cooling injection and casting molds of plastic, aluminum, brass and zinc alloy parts. It can be used for water in cleaning machines, for hot oil, water vapor. Bore diameter: 13 mm. Working pressure: 25 bar. Operating temperature: from -20°C to +200°C (Viton). Material: brass (body socket, connection, sleeve valve), steel stainless (spring, ring, balls).
