Is the Double nipple with BSPT male thread, stainless steel, type VT127 suitable for use with potable water and compatible seals at 10 bar working pressure?

Yes . Double nipple with BSPT male thread, stainless steel, type VT127 appears suitable for potable water service at 10 bar, with caveats. Why: the nipple is AISI 316 stainless steel, which is widely used and accepted for potable water applications due to its corrosion resistance and general hygienic properties. The specified working pressure is 10 bar, matching your requirement. Caveats and recommendations: - Confirm certification/approval for potable water (e.g., NSF/WRAS/KTW or local potable-water approvals) with the manufacturer or supplier before installation. Material suitability alone does not guarantee regulatory compliance. - Verify that the actual dimensions, surface finish and manufacturing processes meet potable-water standards and that no harmful coatings or contaminants are present. - Ensure seals/gaskets used with the fitting are compatible with potable water and rated for 10 bar (common choices: EPDM, PTFE, or approved drinking-water elastomers). Verify chemical compatibility and regulatory approvals for the chosen seal material. - Check thread sealing method (tape, PTFE paste, or fitting-specific seal) is appropriate for BSPT male threads and potable water service. Conclusion: Material and stated working pressure are appropriate, but confirm potable-water certifications and use compatible, approved seals and installation practices.

Can the Double nipple with BSPT male thread, stainless steel, type VT127 withstand chemical exposure in industrial piping at 10 bar?

Yes - Double nipple with BSPT male thread, stainless steel, type VT127 made of AISI 316 and rated for 10 bar is generally suitable for chemical exposure in industrial piping at that pressure. AISI 316 stainless steel offers good corrosion resistance to many chemicals (acids, alkalis, salts, and organic solvents), and the 10 bar working pressure matches your stated requirement. However, final suitability depends on the specific chemical(s), concentration, temperature, exposure duration and flow conditions; certain chlorides, strong acids at high temperature, or halogenated compounds can cause localized corrosion or stress corrosion cracking. Verify compatibility with the exact chemical environment, operating temperature and manufacturer tolerances before use.

Does the Double nipple with BSPT male thread, stainless steel, type VT127 meet pressure-vessel certification requirements at 10 bar?

No. Double nipple with BSPT male thread, stainless steel, type VT127 as described does not by itself meet pressure-vessel certification requirements at 10 bar. The description states a working pressure of 10 bar and material AISI 316, but pressure-vessel certification (e.g., PED, ASME Section VIII or other national rules) requires documented design calculations, traceable material certificates, manufacturing and welding records, non-destructive testing, inspection, and conformity assessment by an authorized body. The provided information (product type, material, nominal working pressure and indicative dimensions) is insufficient to demonstrate compliance. To verify certification you need manufacturer-supplied certification documents (material certificates EN 10204/3.1 or equivalent, test reports, conformity declaration, design standard references, applicable safety factors and allowable stresses, and evidence of assessment by the relevant notified body). Only with those documents and confirmed conformity to the applicable pressure equipment directive/standard can the part be considered certified for use in a pressure vessel at 10 bar.

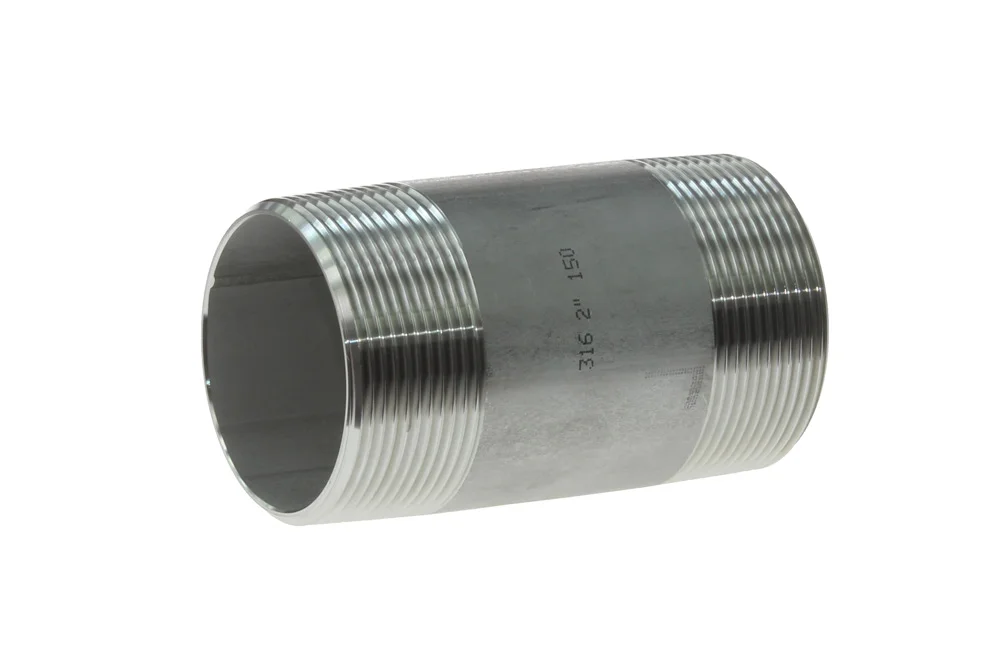

Nipple double with a thread external BSPT, steel stainless, type VT127

Additional information

Material	SS – stainless steel

Nipple double with a BSPT male thread intended for use in pipe connections of industrial installations. Material: steel AISI 316. Working pressure: 10 bar. The given dimensions are indicative and may differ slightly depending on the manufacturer.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NM-VT127-04	Nipple barrel with 1/4" BSPT male, AISI 316	-	10	In stock	Enquiry
NM-VT127-06	Nipple barrel with 3/8" BSPT male, AISI 316	-	10	In stock	Enquiry
NM-VT127-08	Nipple barrel with 1/2" BSPT male, AISI 316	-	10	In stock	Enquiry
NM-VT127-12	Nipple barrel with 3/4" BSPT male, AISI 316	-	10	In stock	Enquiry
NM-VT127-16	Nipple barrel with 1" BSPT male, AISI 316	-	10	In stock	Enquiry
NM-VT127-20	Nipple barrel with 1.1/4" BSPT male, AISI 316	-	10	In stock	Enquiry
NM-VT127-24	Nipple barrel with 1.1/2" BSPT male, AISI 316	-	10	In stock	Enquiry
NM-VT127-32	Nipple barrel with 2" BSPT male, AISI 316	-	10	In stock	Enquiry
NM-VT127-40	Nipple barrel with 2.1/2" BSPT male, AISI 316	-	10	In stock	Enquiry
NM-VT127-48	Nipple barrel with 3" BSPT male, AISI 316	-	10	In stock	Enquiry
NM-VT127-64	Nipple barrel with 4" BSPT male, AISI 316	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Nipple double with a BSPT male thread intended for use in pipe connections of industrial installations. Material: steel AISI 316. Working pressure: 10 bar. The given dimensions are indicative and may differ slightly depending on the manufacturer.
