Is the BSPT male threaded end CNP type made of AISI 316 steel suitable for use with rubber and plastic industrial hoses?

Yes. The BSPT male threaded end CNP type made of AISI 316 steel is suitable for use with rubber and plastic industrial hoses. It is specifically designed with a "tail" for hose insertion and is intended for rubber and plastic industrial hose applications. Installation options include straps, clamps, or special CNFL type crimping sleeves, ensuring secure attachment. The AISI 316 stainless steel construction provides good corrosion resistance and strength appropriate for many industrial hose connections.

Can BSPT male threaded end CNP type in AISI 316 steel be crimped with CNFL sleeves for a leak-free hose connection?

Yes. A BSPT male threaded end CNP type in AISI 316 steel with a hose tail designed for rubber and plastic industrial hoses can be crimped using CNFL-type crimping sleeves to achieve a leak-free connection, provided the sleeve size matches the hose and tail dimensions and crimping is performed with the correct tooling and parameters. Ensure compatibility of hose material and reinforcement with crimping, follow manufacturer specifications for sleeve length, crimp diameter, and pressure ratings, and perform pressure testing after crimping to verify a leak-free assembly.

Can BSPT male threaded end CNP type in AISI 316 steel withstand industrial chemical exposure when used with rubber/plastic hoses?

Yes. BSPT male threaded end, AISI 316 steel, CNP type is generally suitable for industrial chemical exposure when used with rubber or plastic hoses, with important caveats. Why itâs suitable: - AISI 316 stainless steel offers good corrosion resistance to many common industrial chemicals (acids, alkalis, salts, and organic solvents) due to its molybdenum content. The BSPT male threaded CNP type construction provides a robust metal-to-hose connection and mechanical strength for industrial use. - The CNP tail design intended for rubber/plastic industrial hoses and compatible installation methods (straps, clamps, or CNFL crimping sleeves) allow secure fittings that minimize leakage and mechanical failure. Caveats and considerations: - Chemical compatibility is fluid-specific. AISI 316 resists many chemicals but not all (e.g., hot concentrated chlorides, some chlorinated hydrocarbons, or certain strong oxidizers can cause pitting, crevice corrosion, or stress corrosion cracking). Check the specific chemical, concentration, temperature, and exposure duration. - Hose material matters: rubber and plastic hoses vary widely (EPDM, NBR, Viton/FKM, PTFE-lined, PVC, etc.). Chemical compatibility must be verified for the chosen hose with the intended media. - Sealing and thread exposure: BSPT tapered threads may require sealant (PTFE tape, thread compound) compatible with the media and temperature. Ensure sealing method and any sealants are chemically compatible. - Mechanical and environmental factors: temperature extremes, pressure, vibration, and abrasive media can affect longevity. Proper installation (correct clamps/crimps), avoiding crevice formation, and regular inspection are essential. - Standards and certifications: verify that the fitted assembly meets applicable industry standards and safety/regulatory requirements for the specific application. Recommendation: Perform a compatibility check: confirm media vs. AISI 316 corrosion charts and hose material compatibility, consider temperature and concentration, select appropriate sealing method, and use correct clamping/crimping. For aggressive media or critical systems, consult materials/corrosion experts or consider higher-alloy options or fully lined hoses.

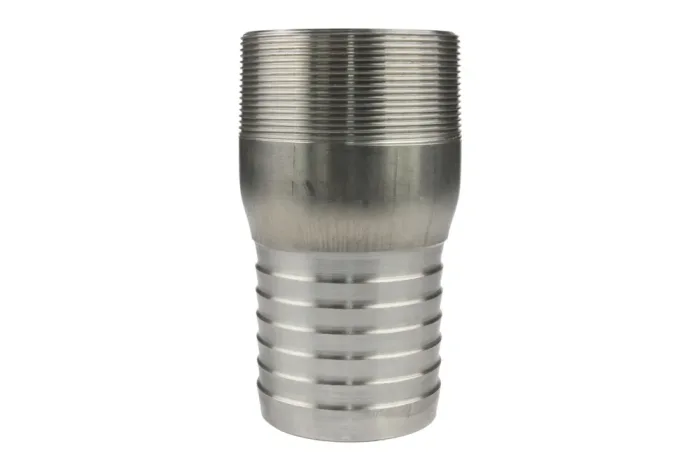

BSPT male threaded end, AISI 316 steel, CNP type

All products, Low-pressure fittings and adapters/

Additional information

Material	SS – stainless steel

Type CNP end with external tapered BSPT thread made of AISI 316 steel with a “tail” for hose. Designed for rubber and plastic industrial hoses. Installation using straps, clamps, or special CNFL type crimping sleeves. Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-CNP-050-SS316	CNP end with GZ BSPT 1/2" for 1/2" hose, AISI 316	12	10	In stock	Enquiry
AC-CNP-075-SS316	CNP end with GZ BSPT 3/4" for 3/4" hose, AISI 316	20	10	In stock	Enquiry
AC-CNP-100-SS316	CNP end with GZ BSPT 1" for 1" hose, AISI 316	25	10	In stock	Enquiry
AC-CNP-125-SS316	CNP end with GZ BSPT 1.1/4" for hose 1.1/4", AISI 316	32	10	In stock	Enquiry
AC-CNP-150-SS316	CNP end with GZ BSPT 1.1/2" for hose 1.1/2", AISI 316	40	10	In stock	Enquiry
AC-CNP-200-SS316	CNP end with GZ BSPT 2" for 2" hose, AISI 316	50	10	In stock	Enquiry
AC-CNP-250-SS316	CNP end with GZ BSPT 2.1/2" for hose 2.1/2", AISI 316	65	10	In stock	Enquiry
AC-CNP-300-SS316	CNP end with GZ BSPT 3" for 3" hose, AISI 316	75	10	In stock	Enquiry
AC-CNP-400-SS316	CNP end with GZ BSPT 4" for 4" hose, AISI 316	100	10	In stock	Enquiry
AC-CNP-500-SS316	CNP end with GZ BSPT 5" for 5" hose, AISI 316	125	10	In stock	Enquiry
AC-CNP-600-SS316	CNP end with GZ BSPT 6" for 6" hose, AISI 316	150	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Type CNP end with external tapered BSPT thread made of AISI 316 steel with a “tail” for hose. Designed for rubber and plastic industrial hoses. Installation using straps, clamps, or special CNFL type crimping sleeves. Material: AISI 316 steel.
