Ferrule for a hose, carbon steel, type CNFL

All products, Low-pressure fittings and adapters/

Additional information

Material	CS – steel (cast iron)

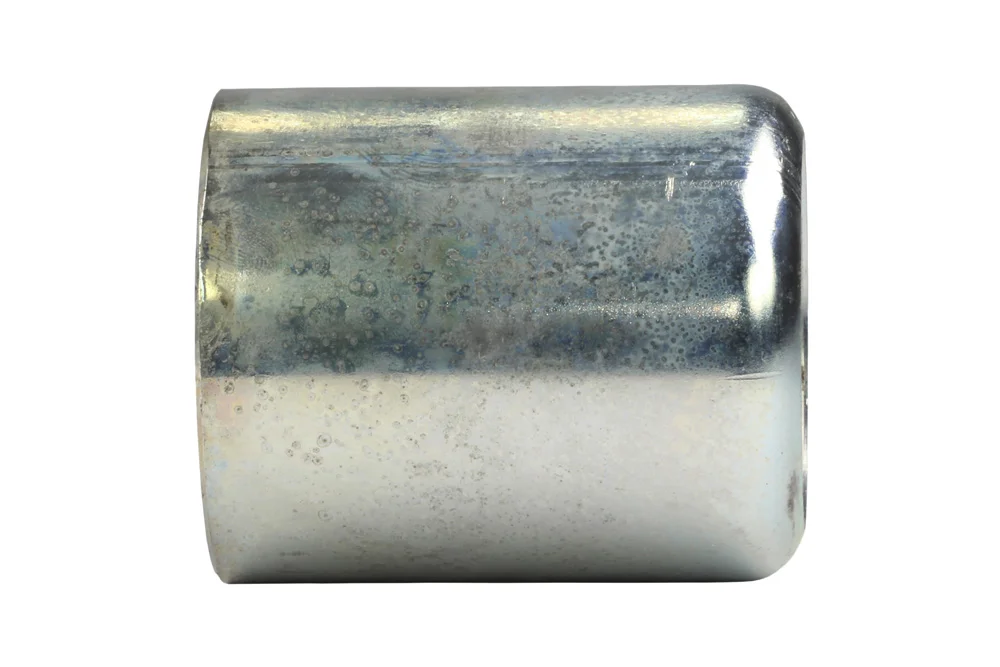

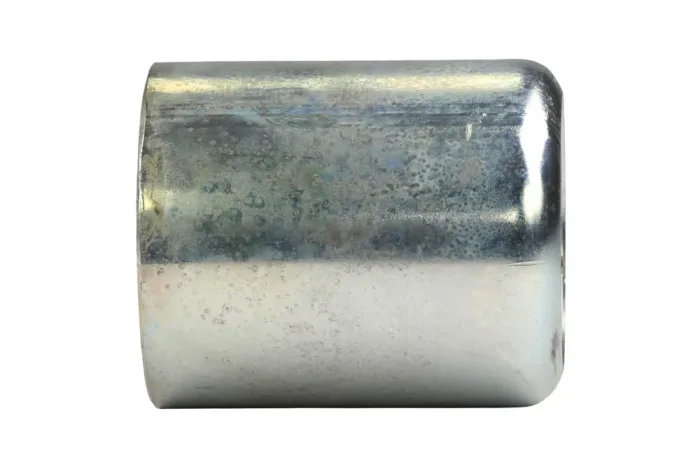

Ferrule CNFL for crimping rubber hoses and industrial plastic hoses. Intended for CN-type ends and connectors. Diameter D1 – external diameter. Diameter D2 – internal diameter. Diameter D3 – lock diameter. Material: carbon steel, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-CNFL-150-1	Sleeve LD na hose 1.1/2" (49÷51 mm), galvanized steel	38	-	In stock	Enquiry
AC-CNFL-150-2	Sleeve LD na hose 1.1/2" (51÷54 mm), galvanized steel	38	-	In stock	Enquiry
AC-CNFL-150-3	Sleeve LD na hose 1.1/2" (54÷57 mm), galvanized steel	38	-	In stock	Enquiry
AC-CNFL-200-1	Sleeve LD na hose 2" (65÷67 mm), galvanized steel	50	-	In stock	Enquiry
AC-CNFL-200-2	Sleeve LD na hose 2" (67÷70 mm), galvanized steel	50	-	In stock	Enquiry
AC-CNFL-200-3	Sleeve LD na hose 2" (70÷73 mm), galvanized steel	50	-	In stock	Enquiry
AC-CNFL-250-1	Sleeve LD na hose 2.1/2" (78÷82.5 mm), galvanized steel	65	-	In stock	Enquiry
AC-CNFL-250-2	Sleeve LD na hose 2.1/2" (80÷82.5 mm), galvanized steel	65	-	In stock	Enquiry
AC-CNFL-300-1	Sleeve LD na hose 3" (90.5÷92 mm), galvanized steel	75	-	In stock	Enquiry
AC-CNFL-300-2	Sleeve LD na hose 3" (92.5÷95 mm), galvanized steel	75	-	In stock	Enquiry
AC-CNFL-300-3	Sleeve LD na hose 3" (95.6÷98.5 mm), galvanized steel	75	-	In stock	Enquiry
AC-CNFL-400-1	Sleeve LD na hose 4" (117.5÷119 mm), galvanized steel	100	-	In stock	Enquiry
AC-CNFL-400-2	Sleeve LD na hose 4" (119.5÷122 mm), galvanized steel	100	-	In stock	Enquiry
AC-CNFL-400-3	Sleeve LD na hose 4" (122.5÷125.5 mm), galvanized steel	100	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Ferrule CNFL for crimping rubber hoses and industrial plastic hoses. Intended for CN-type ends and connectors. Diameter D1 – external diameter. Diameter D2 – internal diameter. Diameter D3 – lock diameter. Material: carbon steel, galvanized.
