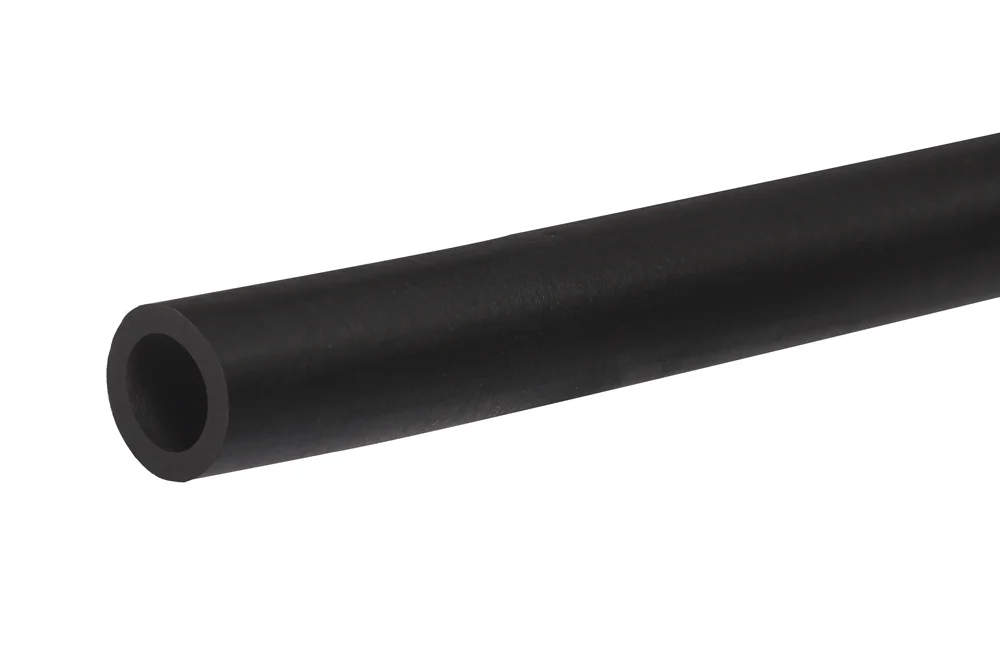

VERSILON™ F-5500-A high chemical and temperature resistance hose
Black, opaque, high-quality flexible hose made of fluorine rubber, resistant to solvents, fuels, oils, aggressive chemicals, also under elevated temperature conditions. Used for cleaning solvents (dry cleaning, solvent recovery systems), aggressive chemicals, acids and bases, hot oils and fuels. Suitable for peristaltic pumps. Resistant to ozone, sunlight, and weather conditions. The opaque black wall of the hose completely protects light-sensitive substances. The production process of the hose with post-vulcanization heating removes any residues and ensures minimal outgassing, required in vacuum and space applications. Full roll length of the hose is 15 m. Working pressure specified relative to burst pressure with a safety factor of 1:5. Material: fluoroelastomer (FKM). Maximum operating temperature: +204°C. Brittleness temperature: -51°C. Hardness: 60° Shore (A). Density: 1.90 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.
List of product variants
Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
---|---|---|---|---|
VE-T5502-13 | VERSILON F-5500-A hose 1.6x3.2 mm | 2 | 1.24 | |
VE-T5504-23 | VERSILON F-5500-A hose 3.2x6.4 mm | 3 | 1.31 | |
VE-T5506-23 | VERSILON F-5500-A hose 4.8x8 mm | 5 | 1.03 | |
VE-T5508-23 | VERSILON F-5500-A hose 6.4x9.6 mm | 6 | 0.9 | |
VE-T5510-23 | VERSILON F-5500-A hose 8x11.2 mm | 8 | 0.76 | |
VE-T5512-23 | VERSILON F-5500-A hose 9.5x12.7 mm | 10 | 0.69 |
Black, opaque, high-quality flexible hose made of fluorine rubber, resistant to solvents, fuels, oils, aggressive chemicals, also under elevated temperature conditions. Used for cleaning solvents (dry cleaning, solvent recovery systems), aggressive chemicals, acids and bases, hot oils and fuels. Suitable for peristaltic pumps. Resistant to ozone, sunlight, and weather conditions. The opaque black wall of the hose completely protects light-sensitive substances. The production process of the hose with post-vulcanization heating removes any residues and ensures minimal outgassing, required in vacuum and space applications. Full roll length of the hose is 15 m. Working pressure specified relative to burst pressure with a safety factor of 1:5. Material: fluoroelastomer (FKM). Maximum operating temperature: +204°C. Brittleness temperature: -51°C. Hardness: 60° Shore (A). Density: 1.90 g/cm³. Note: Product packaged in the Clean Room of Tubes International (CLEAN ROOM) adhering to strict standards. Return of the product after opening the packaging is not possible.
Additional information
Material | PTFE – teflon and similar |
---|---|
Maximum operating temperature [°C] | 204 |
Vacuum resistance | yes |
Standard length [m] | 15, 30 |
