Can the Hydraulic quick coupling with valve and eliminator, socket with GW BSP, stainless steel, TEMA STANDARD be used with pulsating pressure and what reduction in maximum working pressure is required?

Yes. Hydraulic quick coupling with valve and eliminator, socket with GW BSP, stainless steel, TEMA STANDARD can be used with pulsating pressure, but the maximum working pressure must be reduced by 50%. Given the nominal working pressure up to 300 bar (depending on diameter), for pulsating service apply a 50% reduction (e.g. a 300 bar rated coupling should be limited to 150 bar under pulsating conditions). The coupling is suitable for hydraulic oil and other listed media, constructed in AISI 316 with Viton sealing, safety ring and additional Oâring for gas compatibility; safety factor 4:1 and heavyâduty design support such applications when the reduced pressure limit is observed.

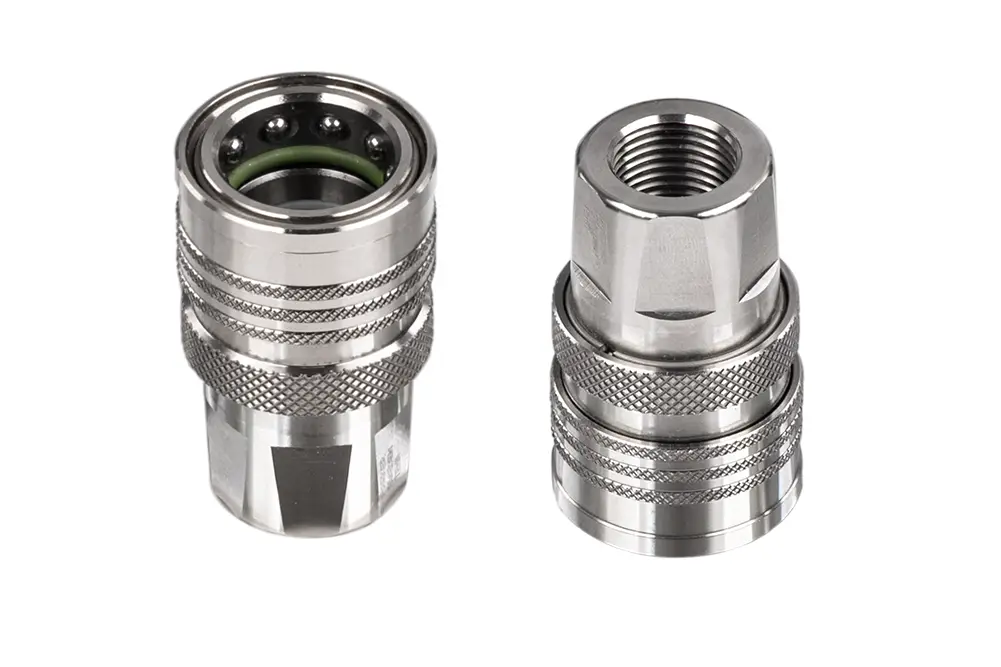

Hydraulic quick coupling with valve and eliminator, socket with GW BSP, stainless steel, TEMA STANDARD

All products, Hydraulic quick couplings/

Additional information

Material	SS – stainless steel

TEMA STANDARD quick coupling socket (NORDIC RANGE) with shut-off valve and eliminator, featuring internal BSP thread. The socket has an additional o-ring, making it suitable for gas installations. It also includes a safety ring to prevent accidental disconnection. It is designed for heavy-duty working conditions. For pulsating pressure, the maximum working pressure should be reduced by 50%. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Material: AISI 316 steel. Working pressure: up to 300 bar (depending on diameter). Safety factor 4:1. Sealing: viton. Operating temperature: from -20°C to +200°C. Flow has been provided for a pressure drop of 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TA-H-10011RV	SS socket with GW 1" BSP, Viton seal, with valve	-	250	In stock	Enquiry
TA-H-3811RV	SS socket with GW 3/8" BSP, Viton seal, with valve and elimination.	-	300	In stock	Enquiry
TA-H-5011RFV	SS socket with 1/2" BSP thread, Viton seal, with valve	-	300	In stock	Enquiry
TA-H-5011RV	SS socket with GW 1/2" BSP, Viton seal, with valve	-	300	In stock	Enquiry
TA-H-7511RV	SS socket with 3/4" BSP thread, Viton seal, with valve and elimination.	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

TEMA STANDARD quick coupling socket (NORDIC RANGE) with shut-off valve and eliminator, featuring internal BSP thread. The socket has an additional o-ring, making it suitable for gas installations. It also includes a safety ring to prevent accidental disconnection. It is designed for heavy-duty working conditions. For pulsating pressure, the maximum working pressure should be reduced by 50%. Application: hydraulic power (hydraulic oil), industrial (water, steam, fuels and oils, gases and chemicals). Material: AISI 316 steel. Working pressure: up to 300 bar (depending on diameter). Safety factor 4:1. Sealing: viton. Operating temperature: from -20°C to +200°C. Flow has been provided for a pressure drop of 3 bar.
