Does the Nickel-plated brass adaptor with GW BSP, type A6 require Teflon tape for tapered threads and washers for cylindrical threads to ensure a leak-free connection?

Yes. The Nickel-plated brass adaptor with GW BSP, type A6 typically requires additional seals for a leak-free connection. For tapered BSP threads use Teflon tape or a suitable thread sealant; for cylindrical (parallel) BSP threads use an aluminum or copper washer. This aligns with the adaptorâs specification for pneumatic connections and its 60 bar working pressure.

Can Nickel-plated brass adaptor with GW BSP, type A6 be used with both hoses and pneumatic fittings at 60 bar without extra seals?

No. Nickel-plated brass adaptor with GW BSP, type A6 cannot be relied on without extra seals. Description states tightness usually requires additional seals: for tapered BSP threads use PTFE tape or sealant; for cylindrical BSP threads use aluminum or copper washers. Although material and working pressure (60 bar) are suitable, proper sealing method must be applied to ensure leak-tight connections with hoses and pneumatic fittings.

Is the Nickel-plated brass adaptor with GW BSP, type A6 compatible with PTFE tape or liquid sealants for tapered threads?

Yes. The Nickel-plated brass adaptor with GW BSP, type A6 is compatible with PTFE (Teflon) tape or liquid thread sealants when used on tapered BSP threads. According to the product description, tapered threads require Teflon tape or a sealant to ensure tightness; for cylindrical threads the required sealing method is aluminum or copper washers. Use an appropriate PTFE tape or thread sealant rated for pneumatic applications and compatible with brass, and apply it correctly to avoid overâapplication or contamination of the pneumatic system. Working pressure: 60 bar.

Nickel-plated brass adaptor with GW BSP, type A6

All products, Threaded pneumatic fittings/

Additional information

Material	B – brass (bronze)

Internal thread adaptor BSP type A6, intended for connecting pneumatic components (including hoses) together. The tightness of the connection usually requires the use of additional seals. In the case of a tapered thread, Teflon tape or sealant is used; for a cylindrical thread, aluminum or copper washers are required. Material: nickel-plated brass. Working pressure: 60 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2106001	Adaptor A6, GW BSP 1/4" / GW BSP 1/8"	-	60	In stock	Enquiry

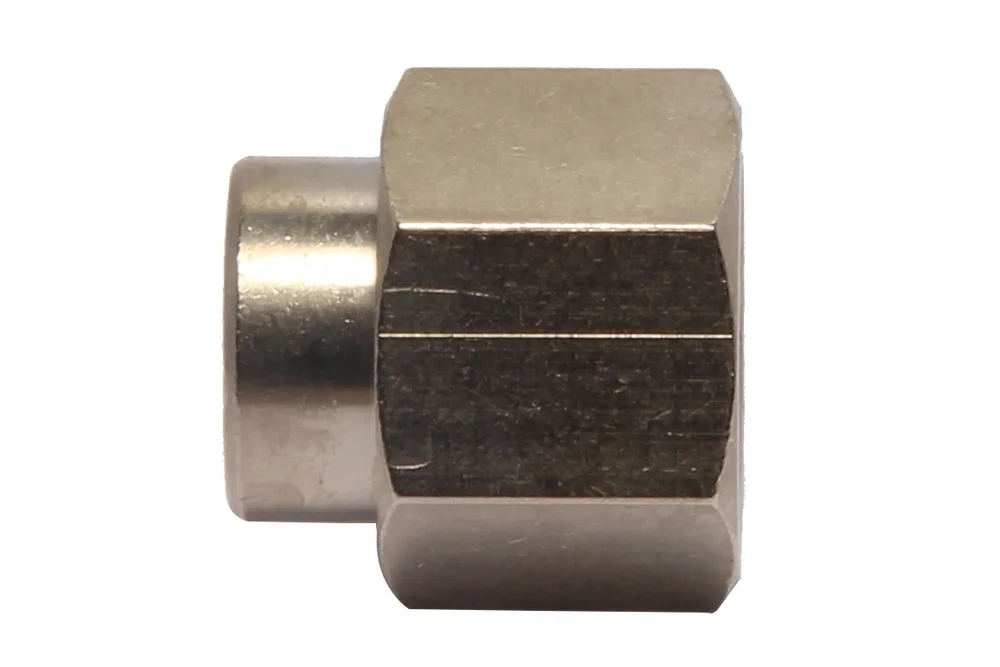

MW-2106002	Adaptor A6, GW BSP 3/8" / GW BSP 1/8"	-	60	In stock	Enquiry
MW-2106003	Adaptor A6, GW BSP 1/4" / GW BSP 3/8"	-	60	In stock	Enquiry
MW-2106004	Adaptor A6, GW BSP 1/2" / GW BSP 1/4"	-	60	In stock	Enquiry
MW-2106005	Adaptor A6, GW BSP 1/2" / GW BSP 3/8"	-	60	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Internal thread adaptor BSP type A6, intended for connecting pneumatic components (including hoses) together. The tightness of the connection usually requires the use of additional seals. In the case of a tapered thread, Teflon tape or sealant is used; for a cylindrical thread, aluminum or copper washers are required. Material: nickel-plated brass. Working pressure: 60 bar.
