Does the Nickel-plated brass tee "T" with GW BSP, type A11 require thread sealant or washers for leak-tight installation at 60 bar?

Nickel-plated brass tee "T" with GW BSP, type A11 requires additional seals for a leak-tight installation at 60 bar. If the BSP thread on the fitting is tapered (BSPT), use Teflon tape or a suitable thread sealant. If the BSP thread is cylindrical (BSPP), use an appropriate aluminum or copper washer (flat sealing washer) on the joint. Ensure the washer material and sealant are compatible with the media and rated for 60 bar. Tighten to the manufacturerâs torque recommendations to avoid damage and ensure sealing.

Can Nickel-plated brass tee "T" with GW BSP, type A11 handle 60 bar without additional sealing (tape, sealant or washers)?

Nickel-plated brass tee "T" with GW BSP, type A11: No, it cannot be relied on to hold 60 bar without additional sealing. Description states tightness usually requires seals: tapered BSP threads need PTFE (Teflon) tape or sealant; cylindrical BSP threads require aluminum or copper washers. To ensure leak-free performance at up to 60 bar, use the appropriate seal (tape/sealant for tapered, washer for cylindrical) and follow proper assembly torque.

Is any specific sealant recommended for Nickel-plated brass tee "T" with GW BSP, type A11 connections at 60 bar?

For Nickel-plated brass tee "T" with GW BSP, type A11 Format operating at 60 bar: - Identify the thread form first: - If the GW BSP threads on the Tee are tapered (BSPT), use PTFE (Teflon) tape or a thread sealant rated for pneumatic use and compatible with brass and nickel plating. Apply tape neatly (2â3 wraps) in the direction of thread engagement to avoid unraveling. - If the GW BSP threads are cylindrical (BSPP), do NOT use tape on the thread face. use a metallic sealing washer (aluminum or copper) or an appropriate O-ring/flat gasket specified for BSPP connections to achieve a reliable seal. - Sealant compatibility and pressure: - Choose PTFE tape or a thread sealant rated for at least 60 bar and compatible with pneumatic/hydraulic oils or gases you use. - Ensure any liquid sealant is compatible with brass/nickel plating to avoid galvanic or chemical attack. - Installation tips: - Clean threads and sealing surfaces; avoid over-tightening which can damage threads or washers. - For critical or safety applications, use a high-pressure anaerobic sealant specifically specified for metal threads and rated above 60 bar. Summary: For Nickel-plated brass tee "T" with GW BSP, type A11 Format at 60 bar. use PTFE tape or compatible thread sealant for tapered BSP threads; use aluminum or copper washers (or specified O-rings/gaskets) for cylindrical BSP threads.

Nickel-plated brass tee “T” with GW BSP, type A11

All products, Threaded pneumatic fittings/

Additional information

Material	B – brass (bronze)

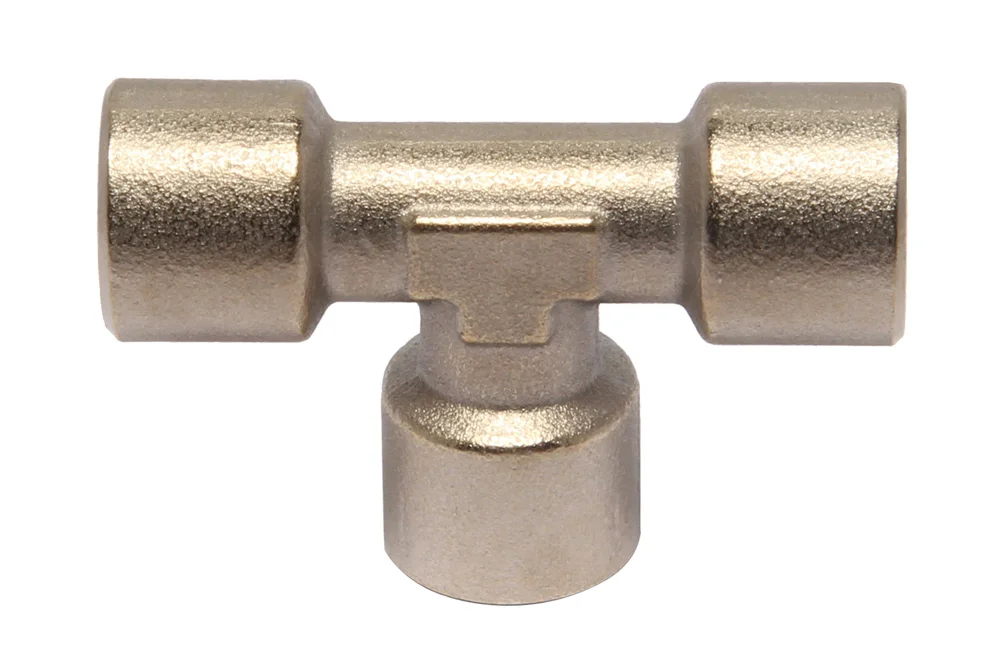

T-shaped “T” fitting with internal BSP thread type A11 designed for connecting pneumatic components (including hoses) together. The tightness of the connection usually requires the use of additional seals. In the case of tapered threads, Teflon tape or sealant is used; for cylindrical threads, aluminum or copper washers are required. Material: nickel-plated brass. Working pressure: 60 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2111001	Tee A11, 3 x G 1/8" BSP	-	60	In stock	Enquiry
MW-2111002	Tee A11, 3 x G 1/4" BSP	-	60	In stock	Enquiry
MW-2111003	A11 tee, 3 x G thread BSP 3/8"	-	60	In stock	Enquiry
MW-2111004	Tee A11, 3 x G 1/2" BSP	-	60	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

T-shaped “T” fitting with internal BSP thread type A11 designed for connecting pneumatic components (including hoses) together. The tightness of the connection usually requires the use of additional seals. In the case of tapered threads, Teflon tape or sealant is used; for cylindrical threads, aluminum or copper washers are required. Material: nickel-plated brass. Working pressure: 60 bar.
