Can the NPT male threaded end, CNP type made of AISI 316 steel be used with both rubber and plastic industrial hoses and secured with straps, clamps, or CNFL clamping sleeves?

Yes. The NPT male threaded end, CNP type, made of AISI 316 steel can be used with both rubber and plastic industrial hoses. It features an external tapered NPT thread and a hose âtailâ specifically designed for secure insertion into hoses. Installation is compatible with straps, clamps, or the special CNFL type clamping sleeves, providing flexible and robust fastening options. AISI 316 construction offers excellent corrosion resistance, making it suitable for demanding industrial environments. Ensure correct hose diameter matching the tail profile and select an appropriate clamp or CNFL sleeve tightened to manufacturer torque/recommendations for leak-free, durable connections.

Is the NPT male threaded end, AISI 316 steel, CNP type compatible with hose tails of varying diameters and pressure ratings?

NPT male threaded end, AISI 316 steel, CNP type Format is compatible with a range of rubber and plastic industrial hoses of varying diameters and pressure ratings, provided the hose inner diameter matches the tail diameter and the selected clamping method suits the hose construction and operating pressure. The CNP tail is designed for installation with straps, standard clamps, or CNFL clamping sleeves; for higher-pressure applications CNFL sleeves or heavy-duty clamps are recommended. Verify hose working pressure, material compatibility with AISI 316, and ensure the NPT thread and mating fittings meet the systemâs pressure and sealing requirements before use.

Does the NPT male threaded end, AISI 316 steel, CNP type include a hose tail length suitable for standard clamping methods?

Yes. The NPT male threaded end, AISI 316 steel, CNP type includes a hose tail ("tail") specifically intended for attachment of rubber and plastic industrial hoses. The description notes that the part is designed for installation using straps, clamps, or the special CNFL type clamping sleeves, so the tail length and profile are suitable for standard clamping methods.

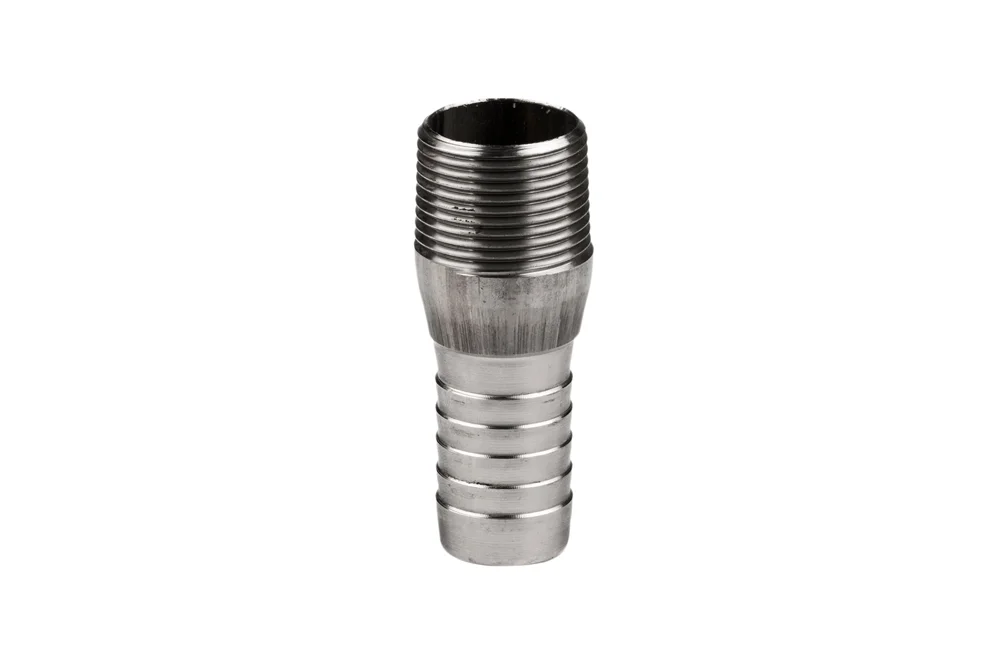

Fitting with an NPT male thread, AISI 316 steel, type CNP

All products, Low-pressure fittings and adapters/

Additional information

Material	CS – steel (cast iron)

Fitting type CNP terminated with a tapered NPT male thread made of galvanized steel with a “tail” for a hose. Intended for rubber hoses and industrial plastic hoses. Assembly by means of bands, clamps or special sheet-metal ferrules of the CNFL type. Material: AISI 316 steel.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AC-CNPN-050-SS316	Fitting CNP with 1/2" NPT male for hose 1/2", AISI 316	12	10	In stock	Enquiry
AC-CNPN-075-SS316	Fitting CNP with 3/4" NPT male for hose 3/4", AISI 316	20	10	In stock	Enquiry
AC-CNPN-100-SS316	Fitting CNP with 1" NPT male for hose 1", AISI 316	25	10	In stock	Enquiry
AC-CNPN-125-SS316	Fitting CNP with 1.1/4" NPT male for hose 1.1/4", AISI 316	32	10	In stock	Enquiry
AC-CNPN-150-SS316	Fitting CNP with 1.1/2" NPT male for hose 1.1/2", AISI 316	40	10	In stock	Enquiry
AC-CNPN-200-SS316	Fitting CNP with 2" NPT male for hose 2", AISI 316	50	10	In stock	Enquiry
AC-CNPN-250-SS316	Fitting CNP with 2.1/2" NPT male for hose 2.1/2", AISI 316	65	10	In stock	Enquiry
AC-CNPN-300-SS316	Fitting CNP with 3" NPT male for hose 3", AISI 316	75	10	In stock	Enquiry
AC-CNPN-400-SS316	Fitting CNP with 4" NPT male for hose 4", AISI 316	100	10	In stock	Enquiry
AC-CNPN-500-SS316	Fitting CNP with 5" NPT male for hose 5", AISI 316	125	10	In stock	Enquiry
AC-CNPN-600-SS316	Fitting CNP with 6" NPT male for hose 6", AISI 316	150	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Fitting type CNP terminated with a tapered NPT male thread made of galvanized steel with a “tail” for a hose. Intended for rubber hoses and industrial plastic hoses. Assembly by means of bands, clamps or special sheet-metal ferrules of the CNFL type. Material: AISI 316 steel.
