Is the Plastic pneumatic throttling valve MRF T/B compatible with standard push-in hose fittings and easy to disconnect for maintenance?

Yes. The Plastic pneumatic throttling valve MRF T/B features a plug-in connection designed specifically for quick attachment and easy disassembly of pneumatic hoses, so it is compatible with standard push-in hose fittings and allows fast disconnects for maintenance. Its plastic body and screwdriver-adjustable throttle make it suitable for typical compressed-air systems (working pressure up to 10 bar, temp. â10Â°C to +70Â°C). Ensure the hose outer diameter and pushâin fitting type match the valveâs plug-in connection specifications for a secure, leakâfree fit.

Can the Plastic pneumatic throttling valve MRF T/B maintain precise flow control at varying supply pressures up to 10 bar?

Plastic pneumatic throttling valve MRF T/B can provide precise flow control within its specified limits, but performance may vary with supply pressure. It is rated for working pressure up to 10 bar and its nominal flow is specified at 6.3 bar (in the throttled direction). Because the valve is designed for simultaneous bidirectional throttling and fine adjustment via a screwdriver, it will regulate flow across the stated pressure range; however, actual precision at different supply pressures depends on system conditions (inlet variation, downstream pressure, hose length/diameter and load). For best and most consistent precision, use it near the conditions for which nominal flow was specified (6.3 bar) and verify performance in your specific application.

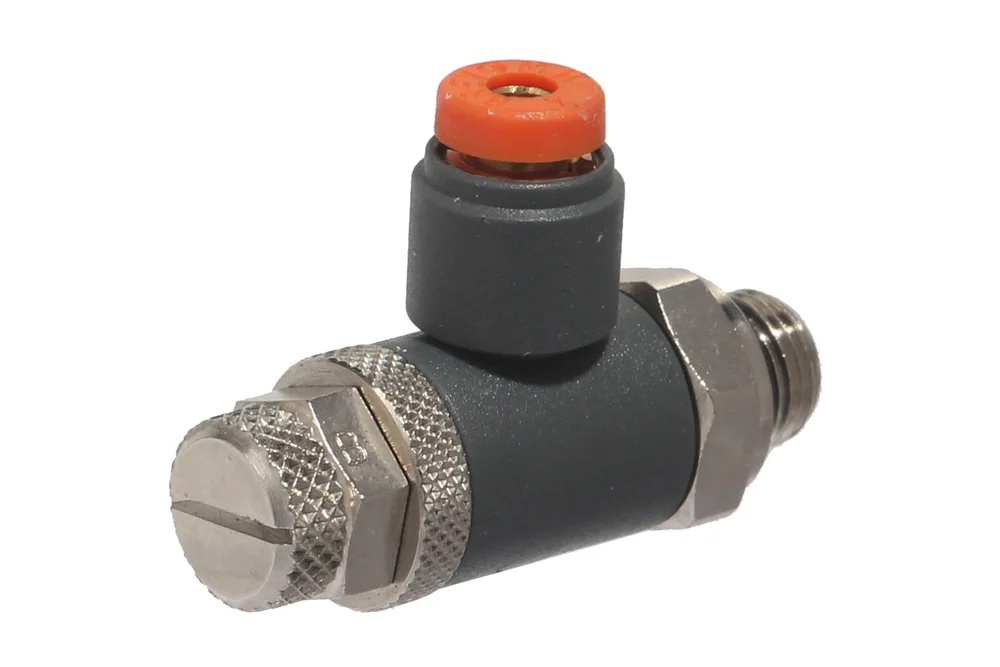

Plastic pneumatic throttling valve MRF T/B

Q: Does the Plastic pneumatic throttling valve MRF T/B support bidirectional flow adjustment with screwdriver tuning?

Yes. The Plastic pneumatic throttling valve MRF T/B supports bidirectional flow adjustment with screwdriver tuning. It is specifically designed for simultaneous flow regulation in both directionsâduring filling and ventingâand its adjustment is made using a screwdriver, allowing you to set the flow rate for compressed air in either direction.

All products, Pneumatic valves/

Additional information

Material	P – material (plastic)

MRF T/B type throttling valve used for simultaneous flow regulation in both directions – during filling and venting, applied in pneumatic systems to regulate the flow rate of compressed air. Equipped with a plug-in connection for easy disassembly of pneumatic hoses. Adjustment change using a screwdriver. The specified nominal flow at a pressure of 6.3 bar (in the throttled direction). Working pressure: up to 10 bar. Operating temperature: from -10°C to +70°C. Body material: plastic.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MW-9021214	MRF T/B throttling valve, 12 mm hose, GZ BSP 1/4"	-	10	In stock	0 zł		Enquiry
MW-9021215	MRF T/B throttling valve, 12 mm hose, GZ BSP 3/8"	-	10	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

MRF T/B type throttling valve used for simultaneous flow regulation in both directions – during filling and venting, applied in pneumatic systems to regulate the flow rate of compressed air. Equipped with a plug-in connection for easy disassembly of pneumatic hoses. Adjustment change using a screwdriver. The specified nominal flow at a pressure of 6.3 bar (in the throttled direction). Working pressure: up to 10 bar. Operating temperature: from -10°C to +70°C. Body material: plastic.
