What measurement range should I choose for the Pressure gauge for reducers with rear connection, type GS40, if my working pressure is 7 bar?

For a working pressure of 7 bar, choose a Pressure gauge for reducers with rear connection, type GS40 with a range where 7 bar does not exceed 75% of the full scale. 75% of the maximum range = 0.75 Ã full scale â¥ 7 bar â full scale â¥ 7 / 0.75 = 9.33 bar. The next standard available range shown in the description is 0 Ã· 10 bar, which satisfies the requirement (7 bar = 70% of full scale). Therefore select the Pressure gauge for reducers with rear connection, type GS40 with measurement range 0 Ã· 10 bar. Operating temperature remains -20Â°C to +70Â°C.

Can I use the Pressure gauge for reducers with rear connection, type GS40, if my system pressure sometimes reaches 8 bar?

Pressure gauge for reducers with rear connection, type GS40 is specified with a measurement range 0 Ã· 10 bar and a recommendation that the working pressure should not exceed 75% of the maximum range. 75% of 10 bar = 7.5 bar, so if your system sometimes reaches 8 bar, that exceeds the recommended limit. Therefore you should not use Pressure gauge for reducers with rear connection, type GS40 on a system that reaches 8 bar; choose a gauge with a higher maximum range (e.g. 0â16 bar or similar) to keep the working pressure at or below 75% of the gaugeâs full scale.

What is the recommended maximum working pressure for Pressure gauge for reducers with rear connection, type GS40?

The recommended maximum working pressure for Pressure gauge for reducers with rear connection, type GS40 is 7.5 bar. This follows from the guidance that the working pressure should not exceed 75% of the gaugeâs maximum range (0 Ã· 10 bar).

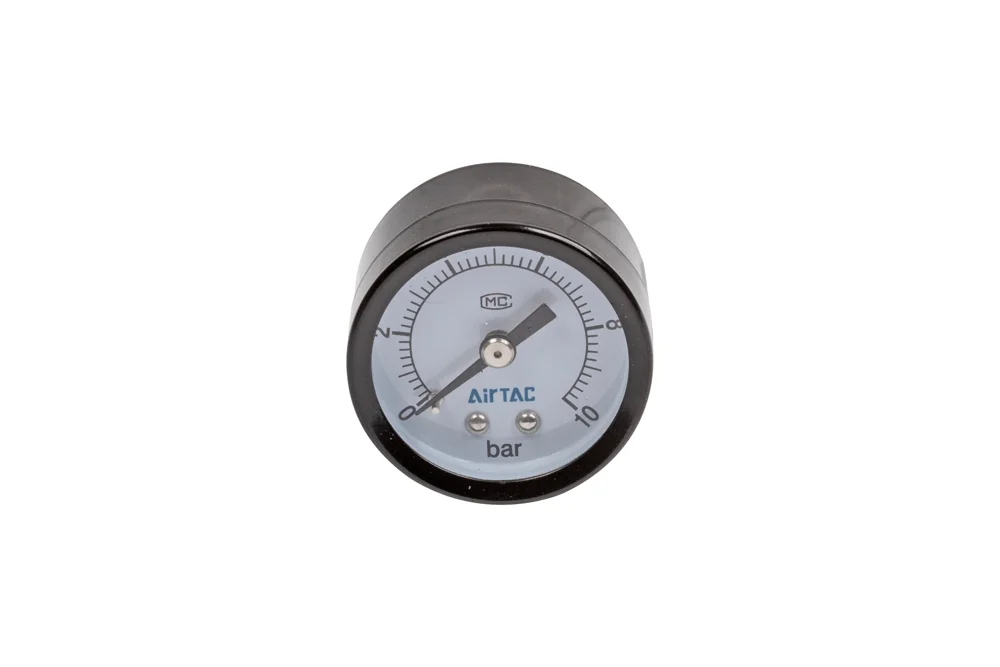

Pressure gauge for reducers with rear connection, type GS40

Accessories for FRL, All products/

Additional information

Maximum operating temperature [°C]	60
Minimum operating temperature [°C]	-20

Pressure gauge with rear connection and external BSP thread, type GS40, is used for pressure measurement. The measurement range should be selected appropriately to the working pressure so that it does not exceed 75% of the maximum range (0 ÷ 10 bar). Operating temperature: from -20°C to +70°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
AT-GS40-10	Pressure gauge M 40 1/8 0÷10 bar	-	-	In stock	0 zł		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +48 61 653 02 22 or email us: tubes@tubes-international.com

SEND ENQUIRY

Pressure gauge with rear connection and external BSP thread, type GS40, is used for pressure measurement. The measurement range should be selected appropriately to the working pressure so that it does not exceed 75% of the maximum range (0 ÷ 10 bar). Operating temperature: from -20°C to +70°C.
